Microscan, Nerlite Ring Series

Smart Series ring lights are a cost-effective, easily integrated solution for diffuse illumination of surfaces. With subtle adjustments to working distance and angle of light delivery, ring lights can deliver good image contrast for a minimal investment. Packaging and mounting advancements put the emphasis on durability and versatility for use in any lighting application.

Available in 3 colors, ultraviolet & infrared
3 sizes available
Smart Series Technology: Built-in controller with continuous and high output strobe modes
Economical and widely-used general purpose designs
Optional adapter allows easy, direct attachment to camera lens
Optional fresnel lens accessories allow the illumination to be focused at various distances

Illumination Example:

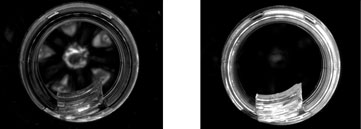

Plastic bottle: Defect on top of a plastic bottle is clearly identified

Functionality:

R 60

Description	nm/K	CURRENT DRAW 24VDC	mcd		mw
			CONT.	STROBE	CONT.	STROBE
R-60, Smart Series, Red	623 nm	1.2 A	283759	2958239
R-60, Smart Series, Blue	470 nm	700 mA	124671	536355
R-60, Smart Series, White	6700 K	700 mA	305710	1512455
R-60, Smart Series, Ultraviolet	375 nm	200 mA			58	424

Aperture Diameter: 1.35” (34.4 mm) Weight: 4 oz. (113 g)
Dimensions: H 2.40” (61 mm) x W 2.40" (61 mm) x D 1.00” (25.4 mm)

R 70

Description	nm/K	CURRENT DRAW 24VDC	mcd		mw
			CONT.	STROBE	CONT.	STROBE
R-70, Smart Series, Red	623 nm	1.2 A	349281	3062913
R-70, Smart Series, Blue	470 nm	850 mA	143217	618814
R-70, Smart Series, White	6700 K	850 mA	352205	1739631

Aperture Diameter: 1.71” (43.4 mm) Weight: 5 oz. (136 g)
Dimensions: H 2.80” (71.1 mm) x W 2.80" (71.1 mm) x D 1.00” (25.4 mm)

R 100

Description	nm/K	CURRENT DRAW 24VDC	mcd		mw
			CONT.	STROBE	CONT.	STROBE
R-100, Smart Series, Red	623 nm	1.7 A	516015	4370388
R-100, Smart Series, Blue	470 nm	1.1 A	201005	848215
R-100, Smart Series, White	6700 K	1.1 A	495814	2338577

Aperture Diameter: 2.74” (69.5 mm) Weight: 8 oz. (227 g)
Dimensions: H 4.00” (101.6 mm) x W 4.00" (101.6 mm) x D 1.00” (25.4 mm)

TITLE	DOCUMENT TYPE	SIZE
Smart Series Ring Light Configuration Guide	Catalog	597 KB
Smart Series Ring Light Quick Start Guides	Zip	3800 KB
Smart Series Ring Light Specification Sheet	Catalog	636 KB
Smart Series Ring Light Drawings	Zip	9564 KB
