Geared Stepper Motors

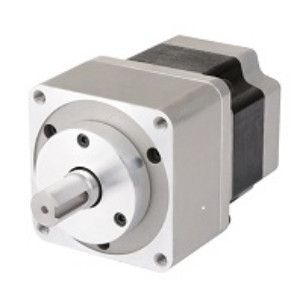

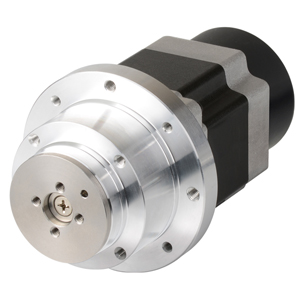

AK-G Series
Brand:
The shaft type 5-phase stepper motors AK Series, deliver reliable performance at low costs. The motors will satisfy users looking for motors with high precision, speed, and torque. The AK-G Series are geared shaft type stepper motors which offer higher torque from compact sizes and flexible angular control.

• Compact design and light weight with high accuracy, speed and torque
• Cost-effective
• Backlash

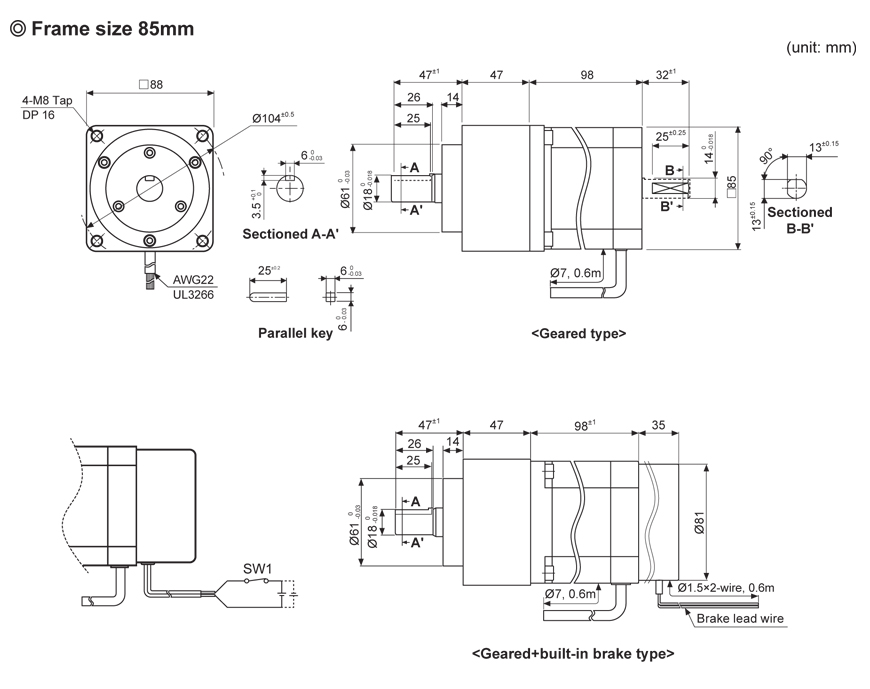

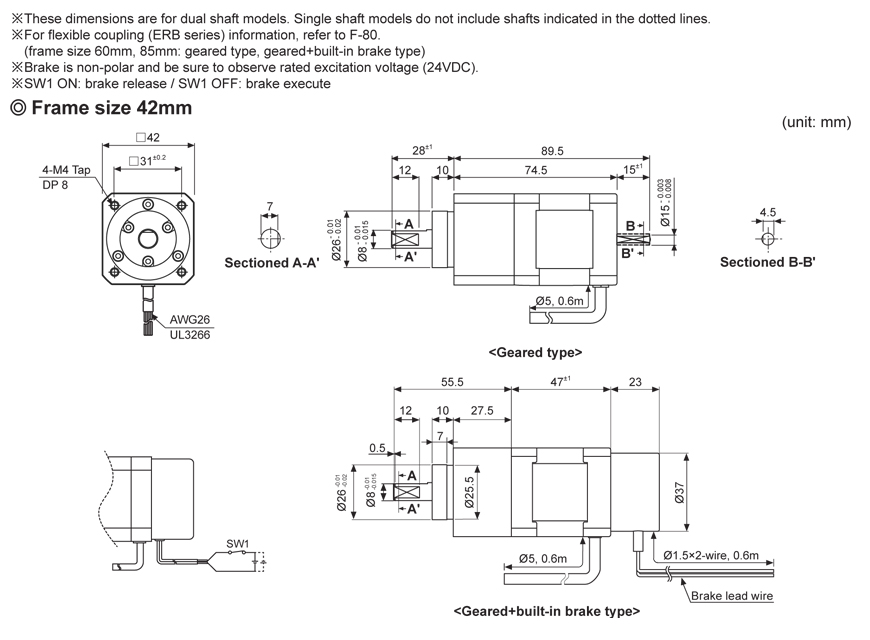

Frame size 42mm: ±35' (0.58°),

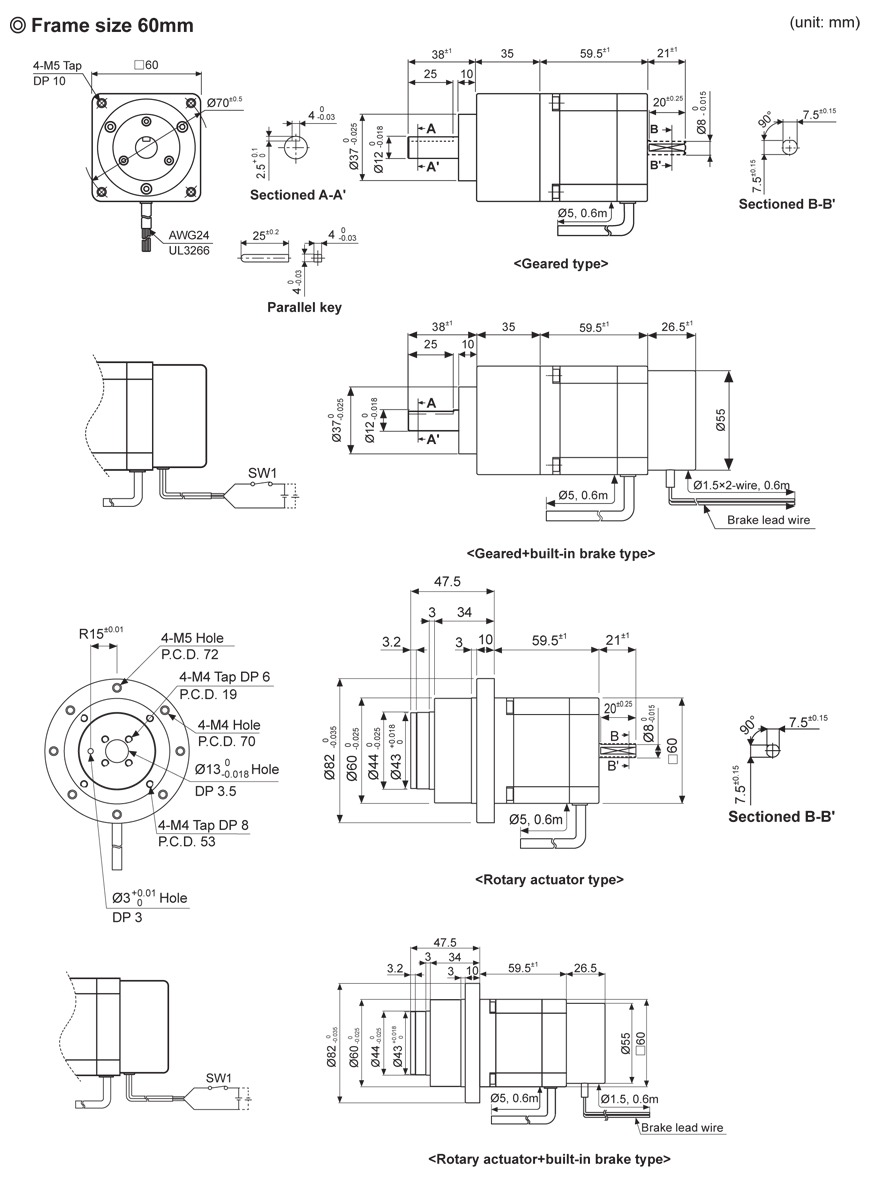

60mm: ±20' (0.33°), 85mm: ±15' (0.25°)
• Brake force is released when applying 24VDC on brake wire

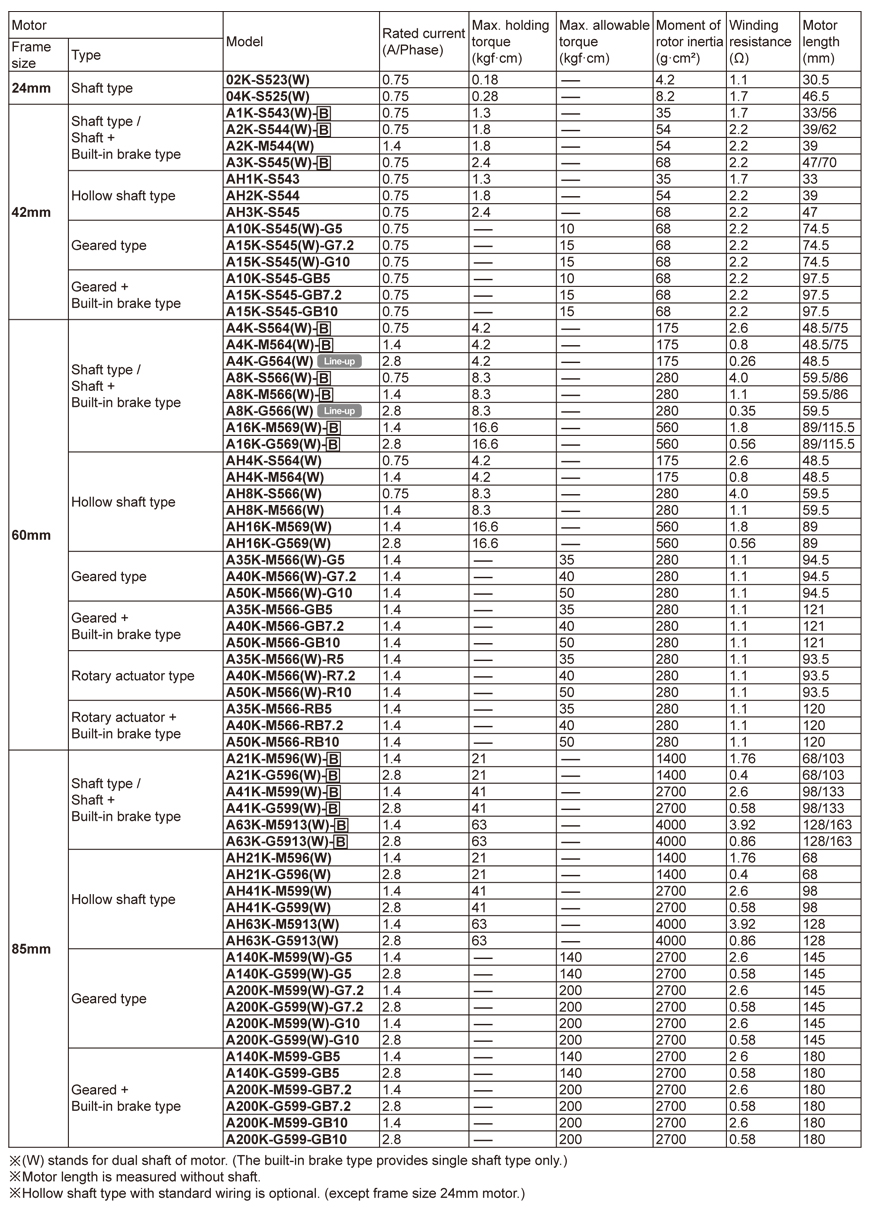

• Basic step angle
1:5→ 0.144°, 1:7.2→ 0.1°, 1:10→ 0.072°
• Allowable speed
1:5→ 0 to 360rpm, 1:7.2→ 0 to 250rpm
1:10→ 0 to 180rpm

TITLE DOCUMENT TYPE SIZE
AK-G/AK-GB/AK-R/AK-RB Series Catalog 531 KB
Model/Specifications Series (5Phase) Catalog 307 KB
5-Phase Stepper Motors (Ordering Information & Specifications) Catalog 684 KB
5-Phase Sepper Motor And Driver (Specifications) Catalog 532 KB
Stepper Motors & Drivers & Controllers (Technical Description) Catalog 583 KB
Stepper Motors & Drivers & Controllers (Applications) Catalog 509 KB
5-Phase Stepper Motors Series (Installation Instruction) Catalog 571 KB
AK-G Series Manual 658 KB
Stepper Motors / Stepper Motor Drivers / Motion Controllers Selection Guide Manual 6313 KB
