Omron, E3S-A Series

last update: December 19, 2013

No information is provided on the features of this product.

last update: December 19, 2013

last update: April 15, 2013

Sensing method		Through-beam Sensors	Retro-reflective Sensors (with MSR function)	Diffuse-reflective Sensors
Model		E3S-AT11, 16, 21, 31, 36, 41, 61, 66, 71, 81, 86, 91	E3S-AR11, 16, 21, 31, 36, 41, 61, 66, 71, 81, 86, 91	E3S-AD13, 18, 23, 33, 38, 43, 63, 68, 73, 83, 88, 93	E3S-AD11, 16, 21, 31, 36, 41, 61, 66, 71, 81, 86, 91	E3S-AD12, 17, 22, 32, 37, 42, 62, 67, 72, 82, 87, 92
Sensing distance		7 m	2 m (100 mm) *1 (When using E39-R1)	100 m m ( wide view) (white paper 100 × 100 mm)	10 to 200 mm (white paper 100 × 100 mm)	700 mm (white paper 100 × 100 mm)
Standard sensing object		Opaque: 10-mm dia. min.	Opaque: 75-mm dia. min.	---
Differential travel		---		20% max. of sensing distance	10% max. of sensing distance	20% max. of sensing distance
Directional angle		Both Emitter and Receiver: 3 ° to 15 °	3 to 10 °	---
Light source (wavelength)		Red LED (700 nm)		Infrared LED (880 nm)	Red LED (700 nm)	Infrared LED (880 nm)
Power supply voltage		10 to 30 VDC, including ripple (p-p) 10%
Current consumption		Both Emitter and Receiver: 20 mA max. (plus approx. 15 mA with turbo function)	30 mA max. (plus approx. 15 mA with turbo function)	35 mA max.	30 mA max. (plus approx. 15 mA with turbo function)	35 mA max.
Control output		Load power supply voltage: 30 VDC max., Load current: 100 mA max. (residual voltage: 1 V max.) Open-collector output (NPN or PNP depending on model), Light-ON/Dark-ON selectable
Self-diagnostic output (Only on Sensors with self-diagnostic outputs)		(Only Sensors with self-diagnostic function) Load power supply voltage: 30 VDC max., Load current: 50 mA max. (residual voltage: 1 V max.), Open-collector output (NPN or PNP depending on model)
External diagnostic input (Only on Sensors with external diagnostic outputs)	Input voltage	NPN with Emitter OFF: 0 V short-circuit or 1.5 V max. (source current: 1 mA max.) with Emitter ON: Open (leakage current: 0.1 mA max.) PNP with Emitter OFF: + DC short-circuit or - 1.5 VDC max. (sink current: 3 mA max.) with Emitter ON: Open (leakage current: 0.1 mA max.)		---
	Response time	0.5 ms max.		---
Protection circuits		Power supply reverse polarity protection, Output short- circuit protection	Power supply reverse polarity protection, Output short-circuit protection, Mutual interference prevention
Response time		Operation or reset: 0.5 ms max.
Sensitivity adjustment		Two-turn endless adjuster with an indicator
Timer function (Only on Sensors with the timer function)		0 to 100 ms OFF-delay variable adjuster
Turbo function (Only on Sensors with the turbo function)		Yes (with turbo switch)				---
Ambient illumination (Receiver side)		Incandescent lamp: 5,000 lx max. Sunlight: 10,000 lx max.
Ambient temperature		Operating: - 25°C to 55°C (with no icing or condensation) Storage: - 40°C to 70°C (with no icing or condensation)
Ambient humidity		Operating: 35% to 85% (with no condensation) Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		Destruction: 500m/s², 3 times each in X, Y, and Z directions
Degree of protection		IEC IP67; NEMA: 4X (indoors only) *2
Connection method		Pre-wired (standard length: 2 m) or M12 connector
Weight (packed state)		Pre-wired cable: Approx. 150 g Connector: Approx. 70 g	Pre-wired cable: Approx. 110 g Connector: Approx. 60 g	Pre-wired cable: Approx. 90 g Connector: Approx. 50 g
Material	Case	PBT
	Lens	Denatured polyallylate
	Mounting Bracket	Stainless steel (SUS304)
Accessories		Mounting bracket (with screws), Sensitivity adjustment driver, Sensitivity adjusting knob, Instruction sheet, Close mounting plate (only for Sensors with connectors), and Reflector (only for Retro-reflective Sensors)

*1. Values in brackets are the minimum required distance between the Sensor and Reflector.
*2. National Electrical Manufacturers Association

last update: April 15, 2013

(Unit: mm)

E3S-A Built-in Amplifier Photoelectric Sensor

Through-beam Sensors (Horizontal)

Pre-wired Sensors

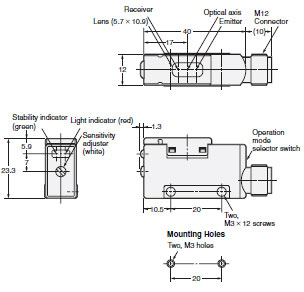

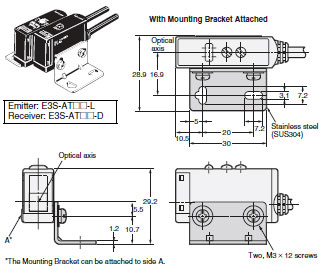

E3S-AT11/21/31/41 (Receiver)

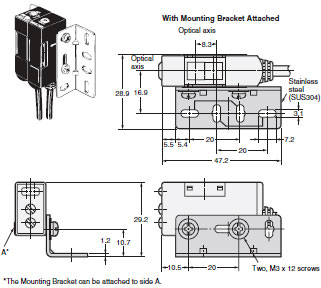

E3S-AT11/31 (Emitter)

E3S-AT21/41(Emitter)

Note:Models numbers for Through-beam Sensors (E3S-AT[]1) are for sets that include both the Emitter and Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-AT11-L 2M), the model number of the Receiver, by adding "-D" (example: E3S-AT11-D 2M). Refer to Lineup to confirm model numbers for Emitter and Receivers.

Sensors with Standard Connectors

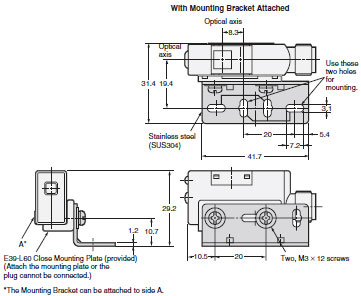

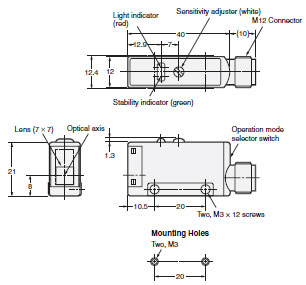

E3S-AT16/36 (Receiver)

E3S-AT16/36 (Emitter)

Note: Models numbers for Through-beam Sensors (E3S-AT[]6) are for sets that include both the Emitter and Receiver.
          The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-AT16-L),
          the model number of the Receiver, by adding "-D" (example: E3S-AT16-D). Refer to Ordering Information to
          confirm model numbers for Emitter and Receivers.

Through-beam Sensors (Vertical)

Pre-wired Sensors

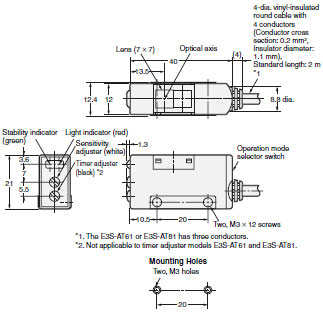

E3S-AT61/71/81/91 (Receiver)

E3S-AT61/81 (Emitter)

E3S-AT71/91 (Emitter)

Note:Models numbers for Through-beam Sensors (E3S-AT[]1) are for sets that include both the Emitter and Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-AT61-L 2M), the model number of the Receiver, by adding "-D" (example: E3S-AT61-D 2M). Refer to Lineup to confirm model numbers for Emitter and Receivers.

Connector Sensors

E3S-AT66/86 (Receiver)

E3S-AT66/86 (Emitter)

Note: Models numbers for Through-beam Sensors (E3S-AT[]6) are for sets that include both the Emitter and Receiver.
          The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-AT66-L),
          the model number of the Receiver, by adding "-D" (example: E3S-AT66-D). Refer to Ordering Information to
          confirm model numbers for Emitter and Receivers.

Retro-reflective Sensors (Horizontal)

Pre-wired Sensors

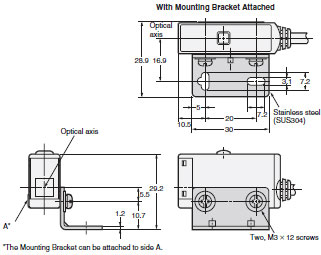

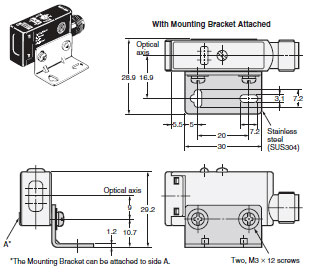

E3S-AR11/21/31/41

Sensors with Connectors

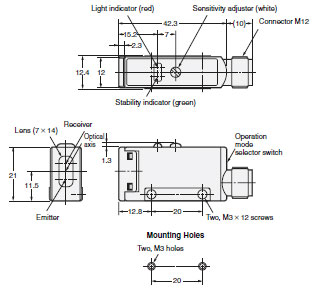

E3S-AR16/36

Retro-reflective Sensors (Vertical)

Pre-wired Sensors

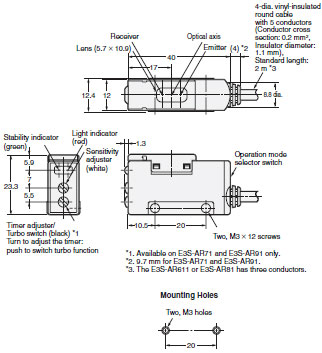

E3S-AR61/71/81/91

Sensors with Connectors

E3S-AR66/86

Diffuse-reflective Sensors (Horizontal)

Pre-wired Sensors

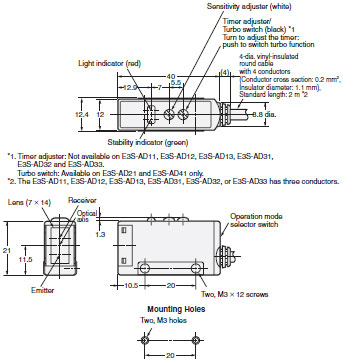

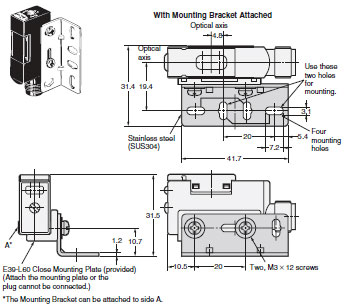

E3S-AD11/12/13/21/22/23/31/32/33/41/42/43

Sensors with Connectors

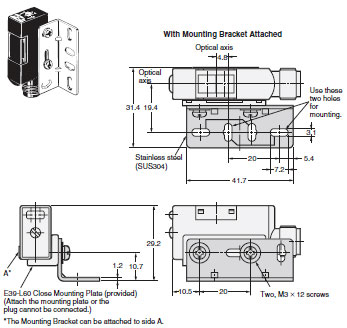

E3S-AD16/17/18/36/37/38

Diffuse-reflective Sensors (Vertical)

Pre-wired Sensors

E3S-AD61/62/63/71/72/73/81/82/83/91/92/93

Sensors with Connectors

E3S-AD66/67/68/86/87/88

Accessories (Order Separately)

Insert-type Long Slit (For Through-beam Model)
E39-S46

Filters for Mutual Interference Prevention (For Through-beam Model)
E39-E6

Optical Axis Confirmation Reflector (For Through-beam Model)
E39-R5

TITLE	DOCUMENT TYPE	SIZE
E3S-A Data Sheet	Catalog	4435 KB
E3S-A/-B Photoelectric Sensor Instruction Sheet (ENG/JPN/ITA/GER/FRE/SPA)	Instruction Manual	250 KB
E3S-AD14/AD64 Photoelectric Sensor Instruction Sheet (ENG/JPN)	Instruction Manual	488 KB

E3S-A Built-in Amplifier Photoelectric Sensor

Through-beam Sensors (Horizontal)

Pre-wired Sensors

E3S-AT11/21/31/41 (Receiver)

E3S-AT11/31 (Emitter)

E3S-AT21/41(Emitter)

Sensors with Standard Connectors

E3S-AT16/36 (Receiver)

E3S-AT16/36 (Emitter)

Through-beam Sensors (Vertical)

Pre-wired Sensors

E3S-AT61/71/81/91 (Receiver)

E3S-AT61/81 (Emitter)

E3S-AT71/91 (Emitter)

Connector Sensors

E3S-AT66/86 (Receiver)

E3S-AT66/86 (Emitter)

Retro-reflective Sensors (Horizontal)

Pre-wired Sensors

E3S-AR11/21/31/41

Sensors with Connectors

E3S-AR16/36

Retro-reflective Sensors (Vertical)

Pre-wired Sensors

E3S-AR61/71/81/91

Sensors with Connectors

E3S-AR66/86

Diffuse-reflective Sensors (Horizontal)

Pre-wired Sensors

E3S-AD11/12/13/21/22/23/31/32/33/41/42/43

Sensors with Connectors

E3S-AD16/17/18/36/37/38

Diffuse-reflective Sensors (Vertical)

Pre-wired Sensors

E3S-AD61/62/63/71/72/73/81/82/83/91/92/93

Sensors with Connectors

E3S-AD66/67/68/86/87/88

Accessories (Order Separately)

Insert-type Long Slit (For Through-beam Model) E39-S46

Filters for Mutual Interference Prevention (For Through-beam Model) E39-E6

Optical Axis Confirmation Reflector (For Through-beam Model) E39-R5

Insert-type Long Slit (For Through-beam Model)
E39-S46

Filters for Mutual Interference Prevention (For Through-beam Model)
E39-E6

Optical Axis Confirmation Reflector (For Through-beam Model)
E39-R5
