Delta, DTC Series

Home > Product > Control Components > Multi Channel & Modular Temperature Controllers > DTC Series

Independent PLC PID Controllers

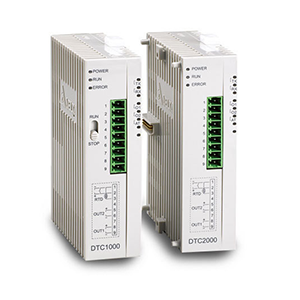

DTC Series

Brand:

The modulized DTC series saves wiring and the parallel modules are able to monitor many temperature points. The flexible output methods enable the user to plan the output modes according to the actual needs. The built-in password protection prevents improper operation or damages caused by the operation staff.

Specifications
▼
Catalogue / Manual / Software
▼

PID / On-Off / manual input / programmable control modes
2 groups of outputs to auto-tuning 2 groups of PID parameters
Able to connect to various thermocouples (B, E, J, K, L, N, R, S, T, U, TXK), platinum RTD (PT100, JPT100), analog current (0 ~ ‧20mA, 4 ~ 20mA) and linear voltage (0 ~ 5V, 0 ~ 10V)
Maximum 2 groups of alarm switches are available, with 12 alarm modes each
LED status display
Celsius or Fahrenheit temperature display
Built-in RS-485 communication interface (Modbus ASCII, RTU, baud rate: 2,400 ~ 38,400)
Sampling time of thermocouple/platinum RTD: 0.4 second/time; sampling time of analog input: 0.15 second/time
Programmable logic controller is able to set up 64 sets of temperature and control time.
3 levels of password protection; wire saving; synchronous communication protocol setting; ID auto setting.

TITLE	DOCUMENT TYPE	SIZE
DTC Series	Catalog	8147 KB
DTC Series	Manual	490 KB
