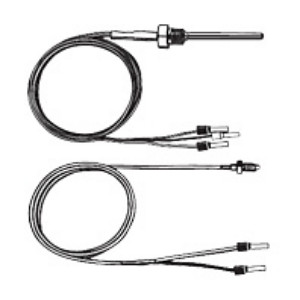

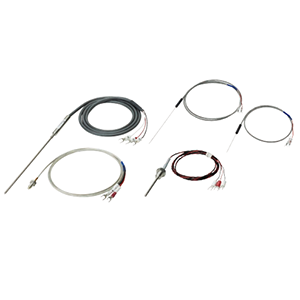

Omron, E52 (Low-cost Models)

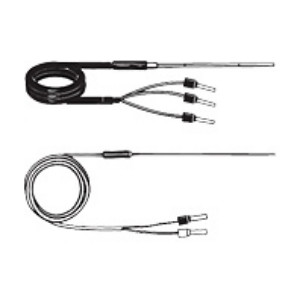

• Previous models with M3 screw connections have been joined by new models with ferrules to help reduce wiring work.

• Ideal for the thermal input devices of Temperature Controllers.

• Select from a wide variety of Temperature Sensors according to the temperature to be measured, location, and environment, and also according to the type and shape of the terminal.

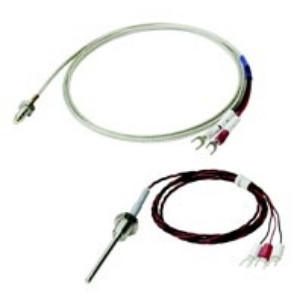

Low-cost Platinum Resistance Thermometers

Exposed-lead Models with Screws

E52-P6DY

Element type	Pt100
Conductor type	3-conductor system
Class	Class B
Protective tubing material	SUS304
Sensor length	30 mm
Max. detectable temperature	250°C
Temperature range	-50°C to 250°C
Lead wire	Fluororesin-covered wire (PFA) with 1.0 outer dia. 7/0.18 -50°C to 150°C

Exposed-lead Models with Flange

E52-P6FY

Element wire	Pt100
Conductor type	3-conductor system
Class	Class B
Protective tubing material	SUS304
Sensor length	30 mm
Max. detectable temperature	250°C
Temperature range	-50°C to 250°C
Lead wire	Fluororesin-covered wire (PFA) with 1.0 outer dia. 7/0.18 -50°C to 150°C

Exposed-lead Models

E52-P10AEY

Element type	Pt100
Conductor type	3-conductor system
Class	Class B
Protective tubing material	SUS316
Max. detectable temperature	250°C
Temperature range	0°C to 250°C
Lead wire	Fluororesin-covered wire (PFA) with 1.0 outer dia. 7/0.18 -50°C to 150°C

Low-cost Thermocouples

Exposed-lead Models with Spring

E52-CA[]ASY, E52-IC[]ASY

Element type	K (CA), J (IC)
Element dia.	0.65 mm (single wire)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Non-grounded type
Temperature range	0°C to 400°C: K (CA) 0°C to 350°C: J (IC)
Lead wire	Fully glass-wool-covered compensating cable and external dimensions of approx. 5.1 x 3.0 4/0.65 0°C to 180°C

Note: The sleeve resists temperatures ranging between 0°C and 100°C.

Exposed-lead Models with Screw

E52-CA1DY, E52-IC1DY

Element type	K (CA), J (IC)
Element dia.	0.65 mm (single wire)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Grounded type
Temperature range	0°C to 400°C: K (CA) 0°C to 350°C: J (IC)
Lead wire	Fully glass-wool-covered with external copper shield and external dimensions of approx. 3.1 x 2.0 1/0.65 0°C to 180°C
Terminal shape	Y-type crimp terminal for M3.5

Note: 1. The thermocouple is a single wire from the tip to the terminal.
2. Specify the type of screw (i.e., M6, M8, or W1/4) when ordering.
3. The thermocouple is not of airtight construction.
4. OMRON recommends that the tip of the thermocouple is touching the sensing object.

Installation Example

Cut a thread into the workpiece, and screw in the thermocouple while pushing in so that the tip makes complete contact.

Note: E52-CA1DY with the same shape and multiple element wires are also available (E52-CA1DY-40).

Exposed-lead Models with Flange

E52-CA6F-N, E52-IC6F-N

Element type	K (CA), J (IC)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Grounded type
Temperature range	0°C to 350°C: K (CA) 0°C to 350°C: J (IC)
Lead wire	Fluororesin-covered thermocouple wire (PFA) with external dimensions of 1.6 x 1.0 1/0.32 0°C to 150°C

Exposed-lead Models with Screws

E52-CA6D-N, E52-IC6D-N

Element type	K (CA), J (IC)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Grounded type
Temperature range	0°C to 350°C: K (CA) 0°C to 350°C: J (IC)
Lead wire	Fluororesin-covered thermocouple wire (PFA) with external dimensions of 1.6 x 1.0 1/0.3 0°C to 150°C

Exposed-lead Models

E52-CA10AE-N, E52-IC10AE-N

Element type	K (CA), J (IC)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Non-grounded type
Temperature range	0°C to 350°C: K (CA) 0°C to 200°C: J (IC)
Lead wire	Fluororesin-covered thermocouple wire (PFA) with external dimensions of 1.6 x 1.0 1/0.32 0°C to 180°C

(Unit: mm)

Low-cost Platinum Resistance Thermometers

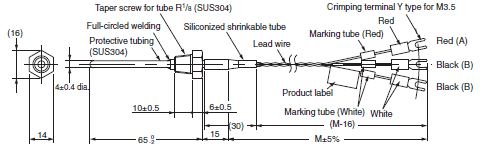

Exposed-lead Models with Screws

E52-P6DY

Note: The protective tubing is of pipe construction, which must not be bent.

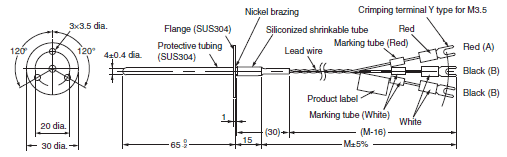

Exposed-lead Models with Flange

E52-P6FY

Note: The protective tubing is of pipe construction, which must not be bent.

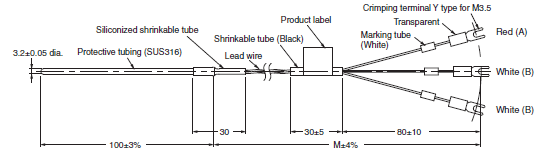

Exposed-lead Models

E52-P10AEY

Note: 1. The protective tubing is of pipe construction, which must not be bent.
2. A Compression Fitting (PT[]) cannot be used for mounting.

Low-cost Thermocouples

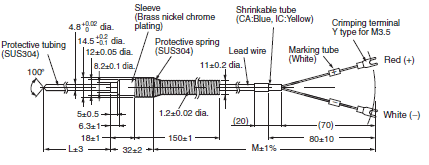

Exposed-lead Models with Spring

E52-CA[]ASY, E52-IC[]ASY

L: Protective tubing length

M: Lead wire length

Note: The protective tubing is of pipe construction, which must not be bent.

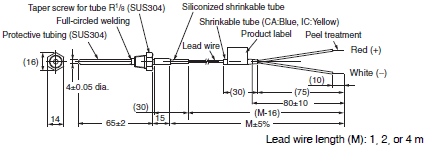

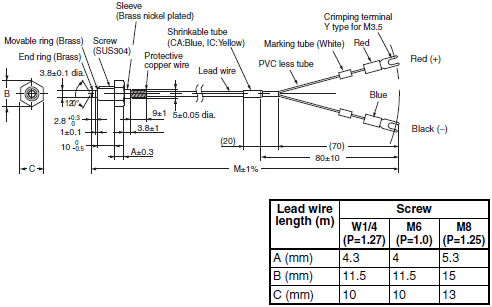

Exposed-lead Models with Screw

E52-CA1DY, E52-IC1DY

Internal Construction (E52-CA1DY)

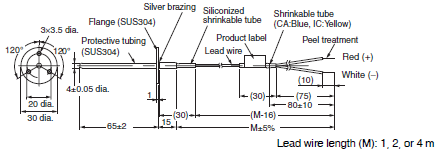

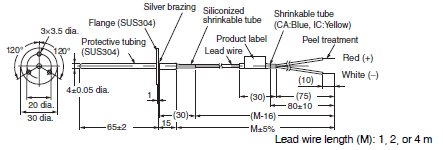

Exposed-lead Models with Flange

E52-CA6F-N, E52-IC6F-N

Note: 1. The thermocouple is a single wire from the tip to the terminal.
2. The protective tubing is of pipe construction, which must not be bent.
3. Do not use in locations subject to excessive vibration and shock. Doing so may cause disconnection.

E52-CA6F-N-25

Note: 1. The thermocouple is a single wire from the tip to the terminal.
2. The protective tubing is of pipe construction, which must not be bent.

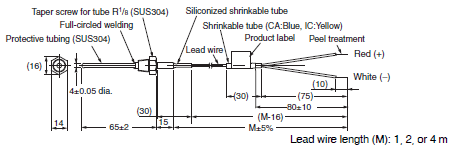

Exposed-lead Models with Screws

E52-CA6D-N, E52-IC6D-N

Note: 1. The thermocouple is a single wire from the tip to the terminal.

2. The protective tubing is of pipe construction, which must not be bent.

3. Do not use in locations subject to excessive vibration and shock. Doing so may cause disconnection.

E52-CA6D-N-25

Note: 1. The thermocouple is a single wire from the tip to the terminal.
2. The protective tubing is of pipe construction, which must not be bent.

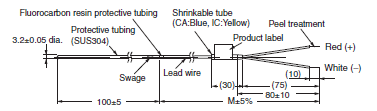

Exposed-lead Models

E52-CA10AE-N, E52-IC10AE-N

Note: 1. The thermocouple is a single wire from the tip to the terminal.
2. Lead wire length M: 1, 2, or 4 m
3. The protective tubing is of pipe construction, which must not be bent.
4. The thermocouple cannot be mounted using a PT[] Compression Fitting.
