Omron, NXR-ILM08C-EIT

Streamline commissioning and maintenance efforts by 90%*1

In order to address the chronic shortage of engineers or utilize information technology at manufacturing sites, modern network technology is being rapidly adopted. However, since conventional methods cannot be used, some problems, such as increase in MTTR and commissioning time, are arising on production floors.As a solution to these problems, Omron analyzed unnecessary and inefficient work in production processes, and developed NXR Series that comes equipped with various functions to save time.

IP67 Remote Terminal

No control panel required

Reduced wiring system

Adding the IO-Link I/O hub simplifies wiring while providing the capability of data utilization.

Simple and quick setup and commissioning

Automatic setting of IO-Link parameters on the configuration tool and transfer of remote terminal and IO-Link device settings from the controller significantly reduce setup time by 90%*1.

*1. Compared with Omron’s NX Series in May 2020.

Just select devices to update all parameters at the same time.Simple configuration prevents human errors.

Configuring all devices at once from the controller eliminates the need to configure each device individually, greatly cutting down setup time.

Stable operation by visualizing communication quality

Quantified Ethernet and IO-Link communication statuses allow you to find network cabling errors before operation. During operation, the communication statuses can be monitored, making it possible to check the system before it suddenly stops.

Short MTTR by easy replacement and quick recovery

I/O cable and communication cable diagnostics

The remote terminal reports approximate locations of disconnections or short circuits in Ethernet cables, and detects disconnections or short circuits in I/O cables.

Replacement without software

The IP address can be set using the hardware switch, without using special software.

*1. Ask your OMRON representative for the most recent applicable standards for each model.

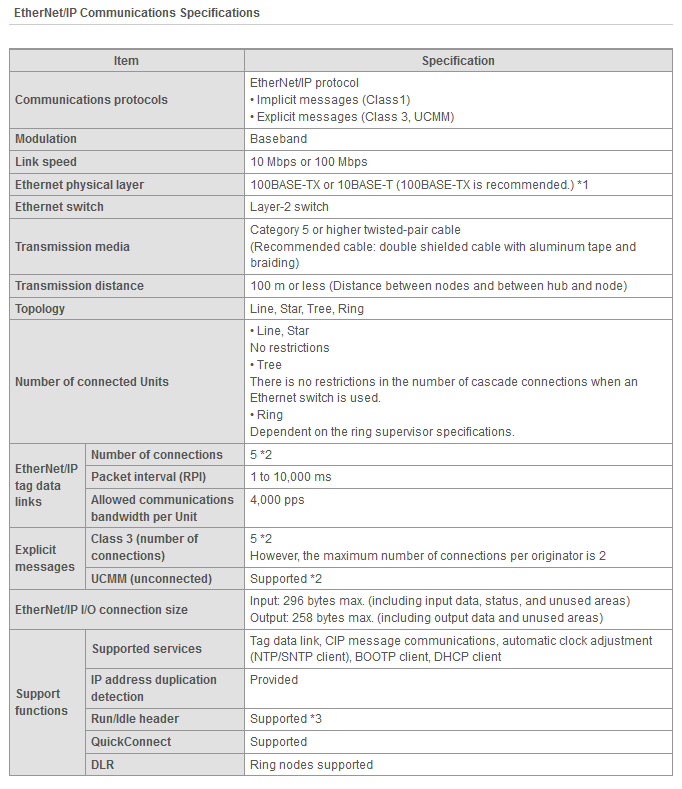

*1. If tag data links are used, use 100BASE-TX.
*2.The maximum number of connections is 10 when tag data links (Class 1), Class 3, and UCMM are used simultaneously. *3. You can configure output retention, clear, and other settings during Idle. Refer to the NXR-series IO-Link Master Unit for EtherNet/IP™ User’s Manual (Cat.No.W619) for details.

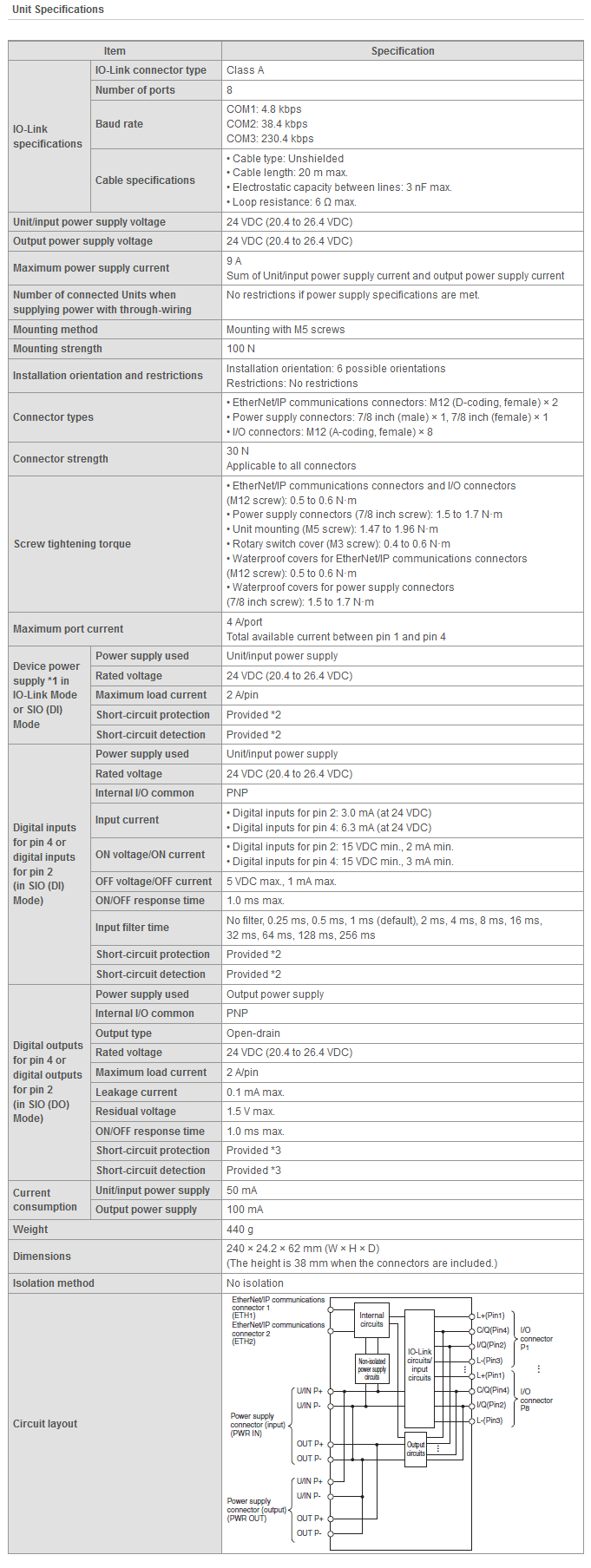

*1. Used as a power supply for IO-Link devices or non-IO-Link input devices. Supplies power from the Unit/input power supply of the IO-Link Master Unit to external devices through I/O connectors.
*2.Detects a short-circuit that occurred between pin 1 and pin 3 to protect the IO-Link Master Unit. *3. Detects a short-circuit that occurred between pin 2 and pin 3 and between pin 4 and pin 3 to protect the IO-Link Master Unit.

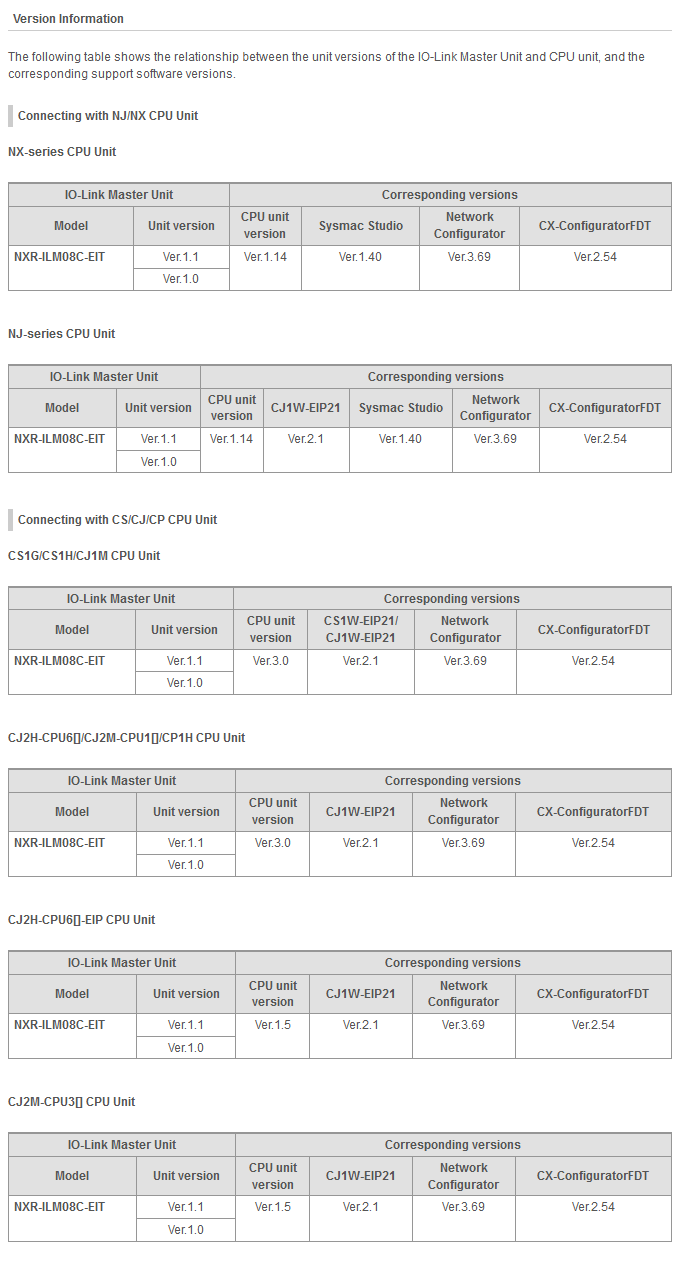

(Unit: mm)

NXR-ILM08C-EIT

TITLE	DOCUMENT TYPE	SIZE
NXR-ILM08C-EIT Catalog	Catalog	5878 KB
