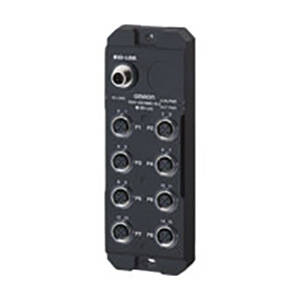

Omron, NXR-[]D166C-IL2
Environment-resistive Remote Terminal NXR-series IO-Link I/O Hub
NXR-[]D166C-IL2
Brand:
Environment resistive Remote Terminals that streamline commissioning and maintenenace of production equipment. Simple and quick setup and commissioning. Reduced wiring system with IO - Link

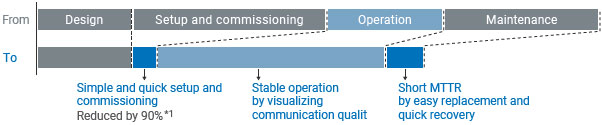

Streamline commissioning and maintenance efforts by 90%*1

In order to address the chronic shortage of engineers or utilize information technology at manufacturing sites, modern network technology is being rapidly adopted. However, since conventional methods cannot be used, some problems, such as increase in MTTR and commissioning time, are arising on production floors.As a solution to these problems, Omron analyzed unnecessary and inefficient work in production processes, and developed NXR Series that comes equipped with various functions to save time.

NXR-ILM08C-EIT

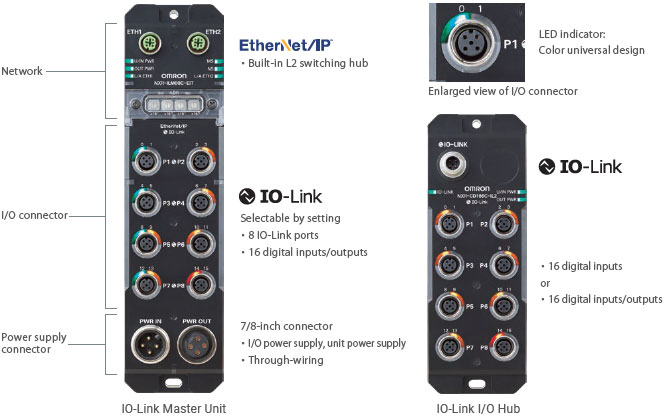

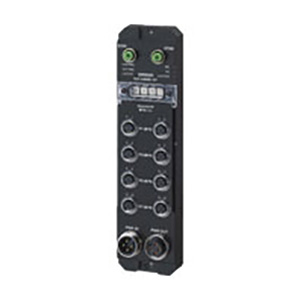

IP67 Remote Terminal

No control panel required

NXR-ILM08C-EIT

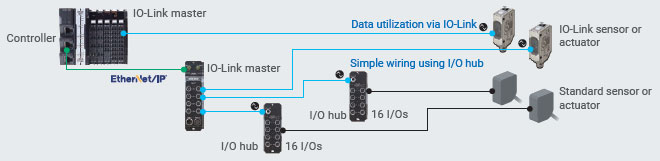

Reduced wiring system

Adding the IO-Link I/O hub simplifies wiring while providing the capability of data utilization.

NXR-ILM08C-EIT

Simple and quick setup and commissioning

Automatic setting of IO-Link parameters on the configuration tool and transfer of remote terminal and IO-Link device settings from the controller significantly reduce setup time by 90%*1.

*1. Compared with Omron’s NX Series in May 2020.

NXR-ILM08C-EIT

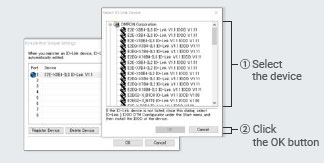

Just select devices to update all parameters at the same time.Simple configuration prevents human errors.

NXR-ILM08C-EIT

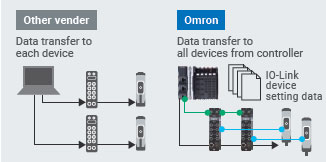

Configuring all devices at once from the controller eliminates the need to configure each device individually, greatly cutting down setup time.

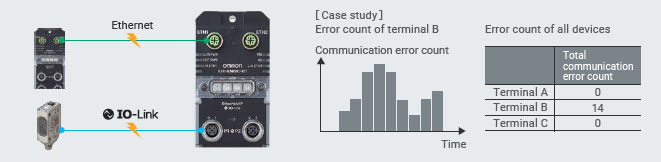

Stable operation by visualizing communication quality

Quantified Ethernet and IO-Link communication statuses allow you to find network cabling errors before operation. During operation, the communication statuses can be monitored, making it possible to check the system before it suddenly stops.

NXR-ILM08C-EIT

Short MTTR by easy replacement and quick recovery

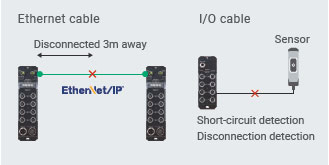

I/O cable and communication cable diagnostics

The remote terminal reports approximate locations of disconnections or short circuits in Ethernet cables, and detects disconnections or short circuits in I/O cables.

NXR-ILM08C-EIT

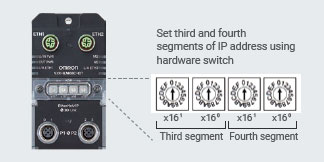

Replacement without software

The IP address can be set using the hardware switch, without using special software.

NXR-ILM08C-EIT

Recently Viewed
FOCUSED PRODUCT
Graphic Operation Controller
GOC 43 defines quality and performance."All-in-one-controller" features an impressive array of functions with simple touch screen operations which is immensely user friendly and convenient to use.

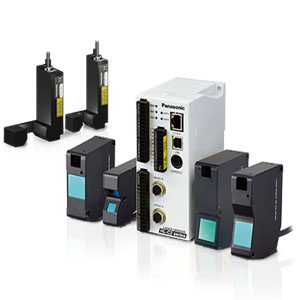

High Precision Laser Displacement Sensors
