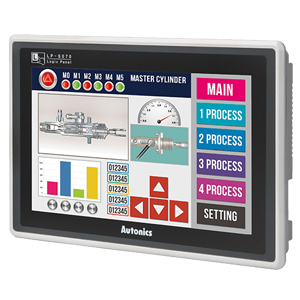

7-Inch Color LCD Logic Panels
LP-A070 Series
Brand:
The LP-A070 series logic panels are all-in-one devices featuring functions of PLC, HMI, and I/O modules with 16 input and 16 output contact points. The 7-inch widescreen TFT LCD display offers excellent visibility and data management capability. The resistive touchscreen (analog touch) allows flexible tag arrangements, and the data logger function allows data storing and backup from various control devices. The units can be installed horizontally or vertically, and also feature support for various connection interfaces including USB Host/Device, and Ethernet.

  • All-in-one device including functions of PLC, HMI, and I/O modules
  • Horizontal/vertical installation
  • Various communication interface support: RS232C, RS422/485, Ethernet
  • 16 input and 16 output points provided
  • Device monitoring of connected device possible without screen data
  • 7-inch TFT LCD True Color display capable up to 16,777,216 color variations
  • Resistive touchscreen allows operation with bare hands, gloved fingers, or stylus
    • img

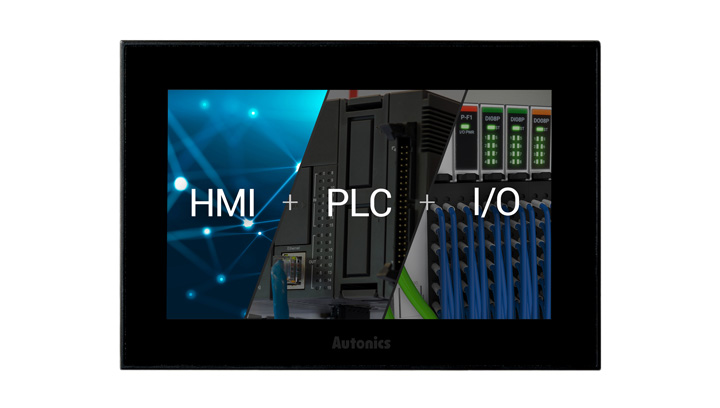

    All-In-One Touch Panel with PLC, HMI, and I/O Module Functions

    The all-in-one device features functions of PLC, HMI, and I/O modules offering easy space-saving installation with minimal wiring. Convenient total control is possible from a single access device.

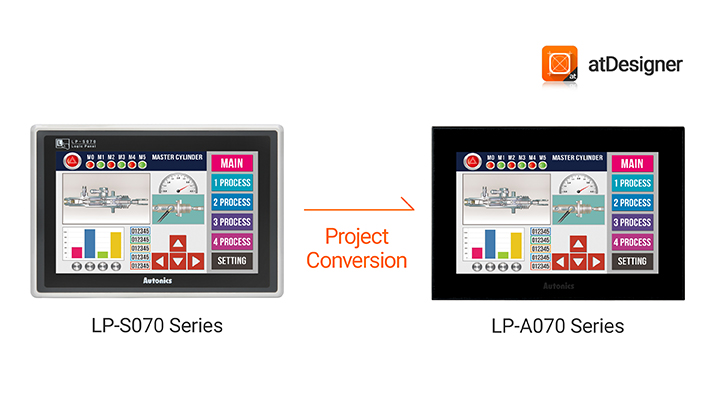

    Simple Screen Editor Project Conversion

    Users can easily change projects from S series panels to A series panels using the project conversion tool (atDesigner).

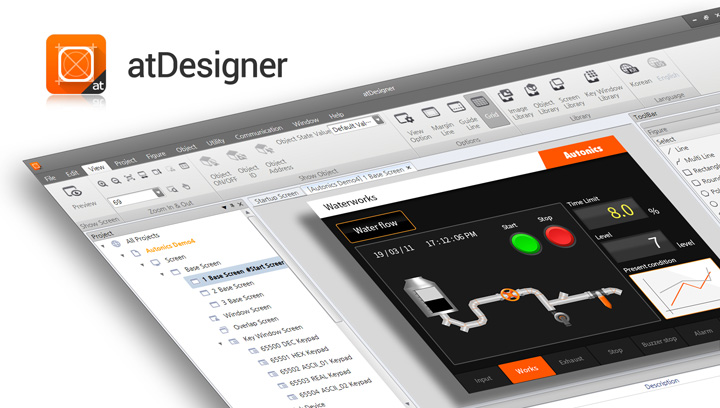

    atDesigner Screen Editor Software with User Oriented UI/UX Design

    All data on the LP screen can be edited using the dedicated screen editor software atDesigner. The user oriented UI/UX design allows users to easily utilize all features on the software.

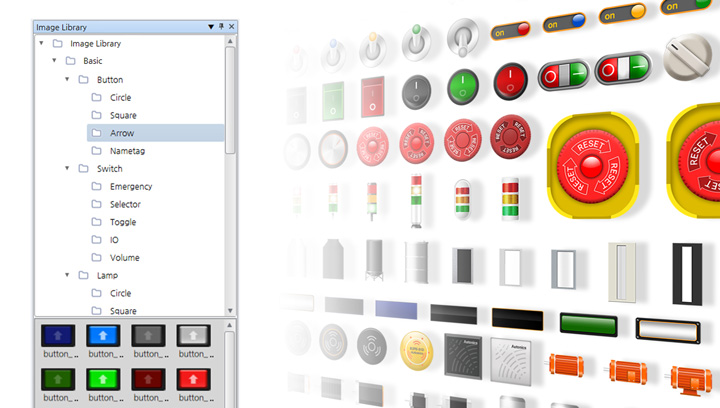

    The image library can be upgraded to create more realistic looking screen layouts.

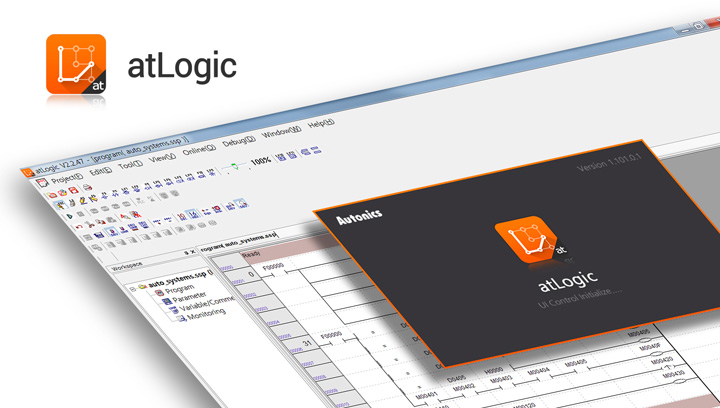

    atLogic Logic Programming Software

    Users can create and edit ladder programs using the atLogic logic programming software.


TITLE DOCUMENT TYPE SIZE
LP-A070 Series Catalog 578 KB
LP-A070 Series Manual 225 KB
