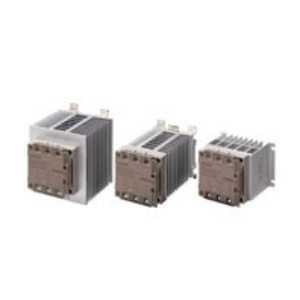

Omron, G3PE (Three Phase) Series

• RoHS compliant.

• Surge pass protection improved surge dielectric strength for output currents. (OMRON testing)

• Slim design with 3-phase output and built-in heat sinks.

• DIN Track mounting types and screw mounting types are available. All DIN Track mounting types mount to DIN Track

(applicable DIN Track: TR35-15Fe (IEC 60715)).

• Conforms to UL, CSA, and EN standards (TÜV certification).

Certification

UL508, CSA22.2 No.14, and EN60947-4-3

Ratings (at an Ambient Temperature of 25°C)

Operating Circuit (All Models)

Model	Same for all models
Rated operating voltage	12 to 24 VDC
Operating voltage range	9.6 to 30 VDC
Rated input current (impedance)	10 mA max. (24 VDC)
Must-operate voltage	9.6 VDC max.
Must-release voltage	1 VDC min.
Insulation method	Phototriac
Operation indicator	Yellow LED

Main Circuit of Models with Built-in Heat Sinks

Model	G3PE- 215B- 3(N)	G3PE- 215B- 2(N)	G3PE- 225B- 3(N)	G3PE- 225B- 2(N)	G3PE- 235B- 3(N)	G3PE- 235B- 2(N)	G3PE- 245B- 3(N)	G3PE- 245B- 2(N)
Rated load voltage	100 to 240 VAC
Operating voltage range	75 to 264 VAC
*Rated load current 1**	15 A (at 40 ° C)		25 A (at 40 ° C)		35 A (at 25 ° C)		45 A (at 25 ° C)
Minimum load current	0.2 A				0.5 A
Inrush current resistance (peak value)	150 A (60 Hz, 1 cycle)		220 A (60 Hz, 1 cycle)		440 A (60 Hz, 1 cycle)
Permissible I²t (reference value)	121A²s		260A²s		1,260A²s
Applicable load (resistive load: AC1 class) *2	5.1 kW (at 200 VAC)		8.6 kW (at 200 VAC)		12.1 kW (at 200 VAC)		15.5 kW (at 200 VAC)

Model	G3PE- 515B- 3(N)	G3PE- 515B- 2(N)	G3PE- 525B- 3(N)	G3PE- 525B- 2(N)	G3PE- 535B- 3(N)	G3PE- 535B- 2(N)	G3PE- 545B- 3(N)	G3PE- 545B- 2(N)
Rated load voltage	200 to 480 VAC
Operating voltage range	180 to 528 VAC
*Rated load current 1**	15 A (at 40 ° C)		25 A (at 40 ° C)		35 A (at 25 ° C)		45 A (at 25 ° C)
Minimum load current	0.5 A
Inrush current resistance (peak value)	220 A (60 Hz, 1 cycle)				440 A (60 Hz, 1 cycle)
Permissible I²t (reference value)	260A²s				1,260A²s
Applicable load (resistive load: AC1 class) *2	12.5 kW (at 480 VAC)		20.7 kW (at 480 VAC)		29.0 kW (at 480 VAC)		37.4 kW (at 480 VAC)

*1. The applicable load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient temperature in engineering data on data sheet.
*2. Applicable Load Use the following formula to calculate the maximum total capacity of a heater load for a three-phase balanced load with delta connections.

Main Circuit of Models with Externally Attached Heat Sinks

Model	G3PE- 215B- 3H	G3PE- 215B- 2H	G3PE- 225B- 3HH	G3PE- 225B- 2H	G3PE- 235B- 3H	G3PE- 235B- 2H	G3PE- 245B- 3H	G3PE- 245B- 2H
Rated load voltage	100 to 240 VAC
Operating voltage range	75 to 264 VAC
Rated load current *	15 A (at 40 ° C)		25 A (at 40 ° C)		35 A (at 25 ° C)		45 A (at 25 ° C)
Minimum load current	0.2 A				0.5 A
Inrush current resistance (peak value)	150 A (60 Hz, 1 cycle)		220 A (60 Hz, 1 cycle)		440 A (60 Hz, 1 cycle)
Permissible I²t (reference value)	121A²s		260A²s		1,260A²s
Applicable load (resistive load: AC1 class)	Refer to Engineering Data on Data Sheet.

Model	G3PE- 515B- 3H	G3PE- 515B- 2H	G3PE- 525B- 3H	G3PE- 525B- 2H	G3PE- 535B- 3H	G3PE- 535B- 2H	G3PE- 545B- 3H	G3PE- 545B- 2H
Rated load voltage	200 to 480 VAC
Operating voltage range	180 to 528 VAC
Rated load current *	15 A (at 40 ° C)		25 A (at 40 ° C)		35 A (at 25 ° C)		45 A (at 25 ° C)
Minimum load current	0.5 A
Inrush current resistance (peak value)	220 A (60 Hz, 1 cycle)				440 A (60 Hz, 1 cycle)
Permissible I²t (reference value)	260A²s				1,260A²s
Applicable load (resistive load: AC1 class)	Refer to Engineering Data on Data Sheet.

* The rated load current depends on the heat sink or radiator that is mounted. It also depends on the ambient temperature.For details, refer to load current vs. ambient temperature in engineering data on data sheet.

Characteristics

Models with Built-in Heat Sinks

Model	G3PE- 215B- 3(N)	G3PE- 215B- 2(N)	G3PE- 225B- 3(N)	G3PE- 225B- 2(N)	G3PE- 235B- 3(N)	G3PE- 235B- 2(N)	G3PE- 245B- 3(N)	G3PE- 245B- 2(N)
Operate time	1/2 of load power source cycle + 1 ms max.
Release time	1/2 of load power source cycle + 1 ms max.
Output ON voltage drop	1.6 V (RMS) max.
Leakage current *	10 mA max. (at 200 VAC)
Insulation resistance	100 M Ω min. (at 500 VDC)
Dielectric strength	2,500 VAC, 50/60 Hz for 1 min
Vibration resistance	DIN Track mounting: 10 to 55 to 10 Hz, 0.175-mm single amplitude (0.35-mm double amplitude) Screw mounting: 10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude)
Shock resistance	294 m/s² (reverse mounting: 98 m/s²)
Ambient storage temperature	- 30 to 100 ° C (with no icing or condensation)
Ambient operating temperature	- 30 to 80 ° C (with no icing or condensation)
Ambient operating humidity	45% to 85%
Weight	Approx. 1.25 kg		Approx. 1.45 kg	Approx. 1.25 kg	Approx. 1.65 kg	Approx. 1.45 kg	Approx. 2.0 kg	Approx. 1.65 kg

Model	G3PE- 515B- 3(N)	G3PE- 515B- 2(N)	G3PE- 525B- 3(N)	G3PE- 525B- 2(N)	G3PE- 535B- 3(N)	G3PE- 535B- 2(N)	G3PE- 545B- 3(N)	G3PE- 545B- 2(N)
Operate time	1/2 of load power source cycle + 1 ms max.
Release time	1/2 of load power source cycle + 1 ms max.
Output ON voltage drop	1.8 V (RMS) max.
Leakage current *	20 mA max. (at 480 VAC)
Insulation resistance	100 M Ω min. (at 500 VDC)
Dielectric strength	2,500 VAC, 50/60 Hz for 1 min
Vibration resistance	DIN Track mounting: 10 to 55 to 10 Hz, 0.175-mm single amplitude (0.35-mm double amplitude) Screw mounting: 10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude)
Shock resistance	294 m/s² (reverse mounting: 98 m/s²)
Ambient storage temperature	- 30 to 100 ° C (with no icing or condensation)
Ambient operating temperature	- 30 to 80 ° C (with no icing or condensation)
Ambient operating humidity	45% to 85%
Weight	Approx. 1.25 kg		Approx. 1.45 kg	Approx. 1.25 kg	Approx. 1.65 kg	Approx. 1.45 kg	Approx. 2.0 kg	Approx. 1.65 kg

* The leakage current of phase S will be approximately √3 times larger if the 2-element model is used.

Models with Externally Attached Heat Sinks

Model	G3PE- 215B- 3H	G3PE- 215B- 2H	G3PE- 225B- 3H	G3PE- 225B- 2H	G3PE- 235B- 3H	G3PE- 235B- 2H	G3PE- 245B- 3H	G3PE- 245B- 2H
Operate time	1/2 of load power source cycle + 1 ms max.
Release time	1/2 of load power source cycle + 1 ms max.
Output ON voltage drop	1.6 V (RMS) max.
Leakage current *	10 mA max. (at 200 VAC)
Insulation resistance	100 M Ω min. (at 500 VDC)
Dielectric strength	2,500 VAC, 50/60 Hz for 1 min
Vibration resistance	10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude)
Shock resistance	Destruction: 294 m/s²
Ambient storage temperature	- 30 to 100 ° C (with no icing or condensation)
Ambient operating temperature	- 30 to 80 ° C (with no icing or condensation)
Ambient operating humidity	45% to 85%
Weight	Approx. 300 g

Model	G3PE- 515B- 3H	G3PE- 515B- 2H	G3PE- 525B- 3H	G3PE- 525B- 2H	G3PE- 535B- 3H	G3PE- 535B- 2H	G3PE- 545B- 3H	G3PE- 545B- 2H
Operate time	1/2 of load power source cycle + 1 ms max.
Release time	1/2 of load power source cycle + 1 ms max.
Output ON voltage drop	1.8 V (RMS) max.
Leakage current *	20 mA max. (at 480 VAC)
Insulation resistance	100 M Ω min. (at 500 VDC)
Dielectric strength	2,500 VAC, 50/60 Hz for 1 min
Vibration resistance	10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude)
Shock resistance	Destruction: 294 m/s²
Ambient storage temperature	- 30 to 100 ° C (with no icing or condensation)
Ambient operating temperature	- 30 to 80 ° C (with no icing or condensation)
Ambient operating humidity	45% to 85%
Weight	Approx. 300 g

* The leakage current of phase S will be approximately √3 times larger if the 2-element model is used.

Heat Sinks

Model	Weight
Y92B-P50	Approx. 450 g
Y92B-P100	Approx. 450 g
Y92B-P150	Approx. 600 g
Y92B-P200	Approx. 850 g
Y92B-P250	Approx. 1,200 g

Solid State Relays

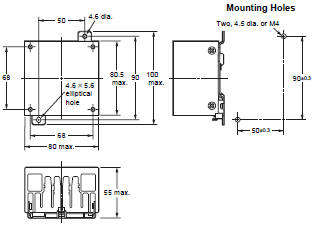

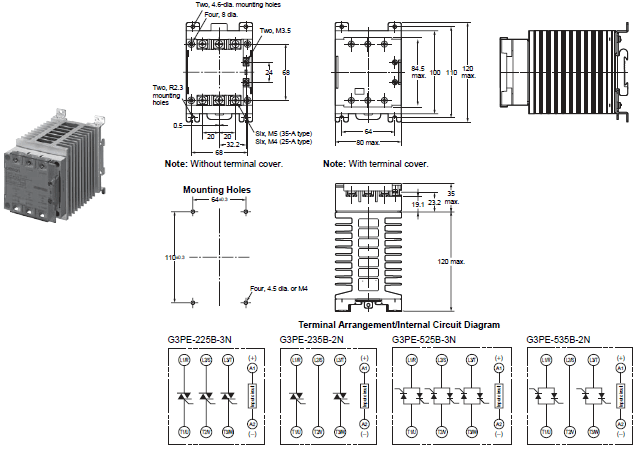

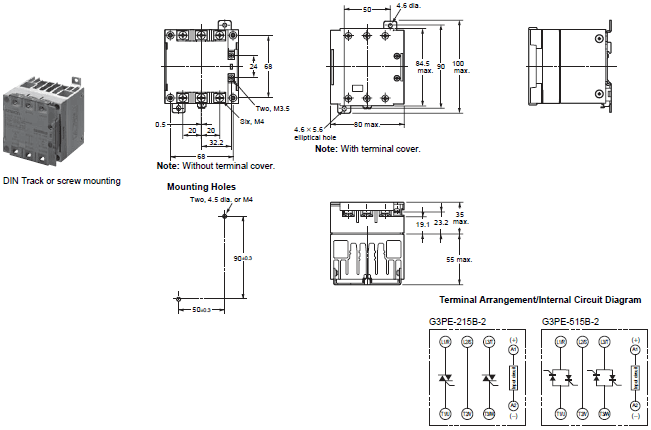

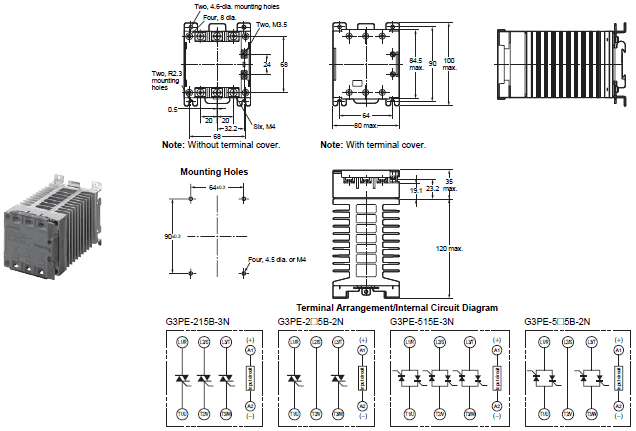

Models with DIN Track Mounting

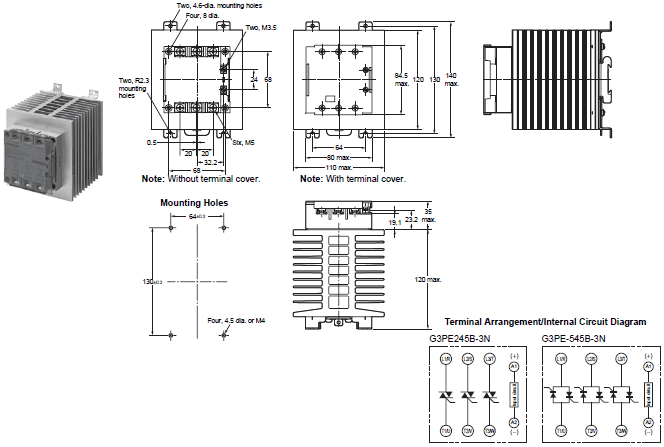

G3PE-215B-3N
G3PE-215B-2N
G3PE-225B-2N
G3PE-515B-3N
G3PE-515B-2N
G3PE-525B-2N

Models with DIN Track Mounting
G3PE-225B-3N
G3PE-235B-2N
G3PE-525B-3N
G3PE-535B-2N

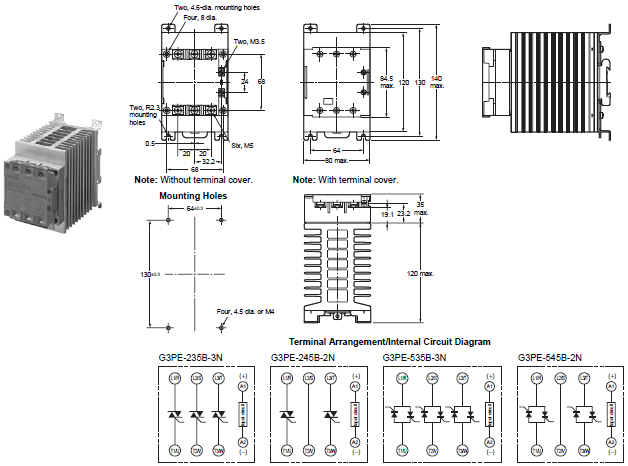

Models with DIN Track Mounting
G3PE-235B-3N
G3PE-245B-2N
G3PE-535B-3N
G3PE-545B-2N

Models with DIN Track Mounting
G3PE-245B-3N
G3PE-545B-3N

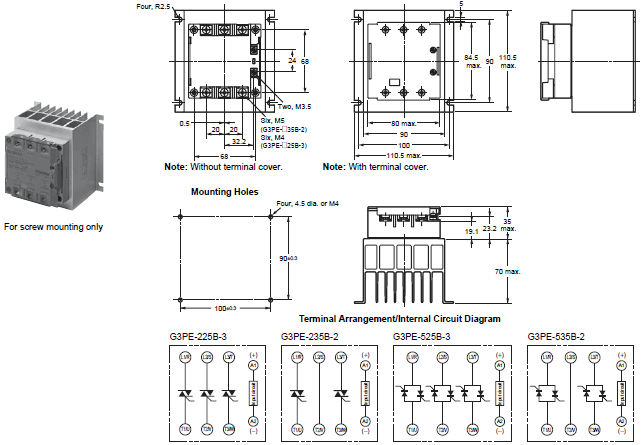

Models with Screw Mounting

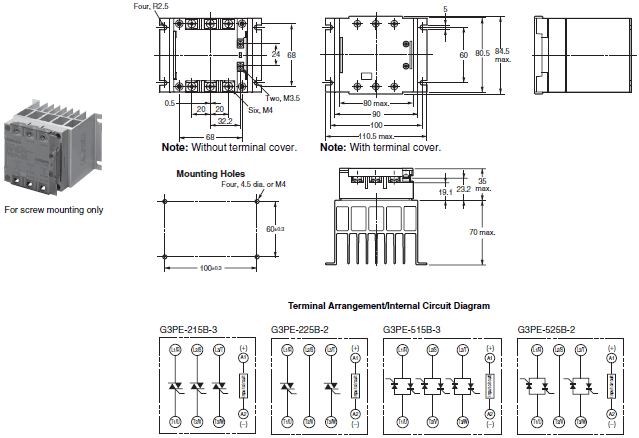

G3PE-215B-2
G3PE-515B-2

Models with Screw Mounting
G3PE-215B-3
G3PE-225B-2
G3PE-515B-3
G3PE-525B-2

Models with Screw Mounting

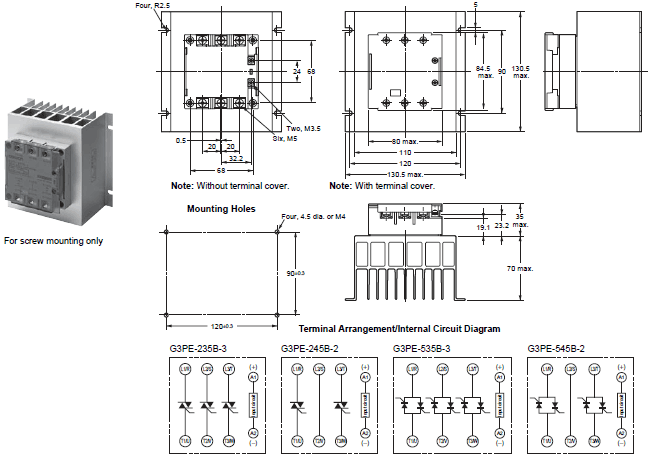

G3PE-225B-3
G3PE-235B-2
G3PE-525B-3
G3PE-535B-2

Models with Screw Mounting
G3PE-235B-3
G3PE-245B-2
G3PE-535B-3
G3PE-545B-2

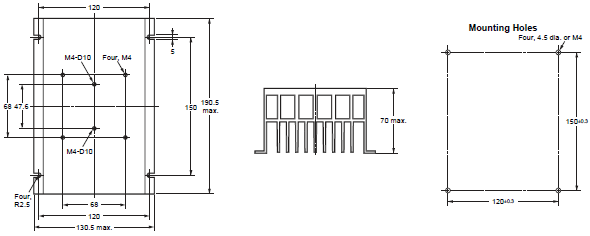

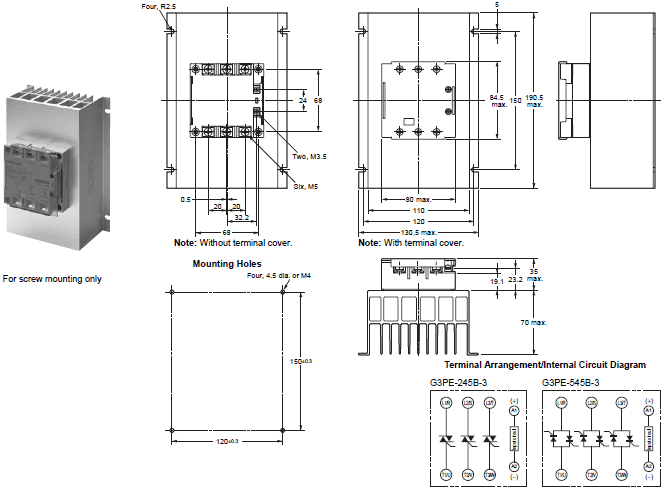

Models with Screw Mounting
G3PE-245B-3
G3PE-545B-3

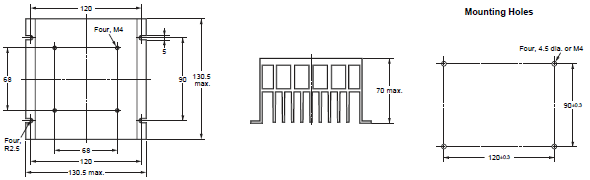

Models with Externally Attached Heat Sinks
G3PE-215B-3H
G3PE-215B-2H
G3PE-225B-3H
G3PE-225B-2H
G3PE-235B-3H
G3PE-235B-2H
G3PE-245B-3H
G3PE-245B-2H
G3PE-515B-3H
G3PE-515B-2H
G3PE-525B-3H
G3PE-525B-2H
G3PE-535B-3H
G3PE-535B-2H
G3PE-545B-3H
G3PE-545B-2H

Accessories (Order Separately)

Heat Sink

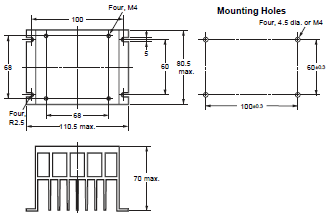

Y92B-P50 (Mounts to DIN Track.)

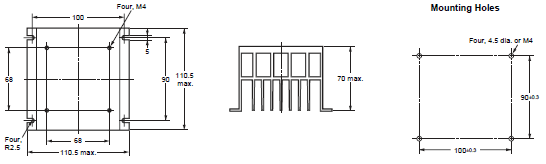

For G3PE-215B-2H and G3PE-515B-2H

Heat Sink
Y92B-P100
For G3PE-215B-3H, G3PE-225B-2H, G3PE-515B-3H, and G3PE-525B-2H

Heat Sink
Y92B-P150
For G3PE-225B-3H, G3PE-235B-2H, G3PE-525B-3H, and G3PE-535B-2H

Heat Sink
Y92B-P200
For G3PE-235B-3H, G3PE-245B-2H, G3PE-535B-3H, and G3PE-545B-2H

Heat Sink
Y92B-P250
For G3PE-245B-3H and G3PE-545B-3H
