Omron, G3PC Series

• Main detection items: SSR short-circuits and SSR open-circuits

• Alarm output possible to NPN/PNP-input devices.

• The failure-detection function is built-in and power is supplied from the main circuit power supply making wiring simple.

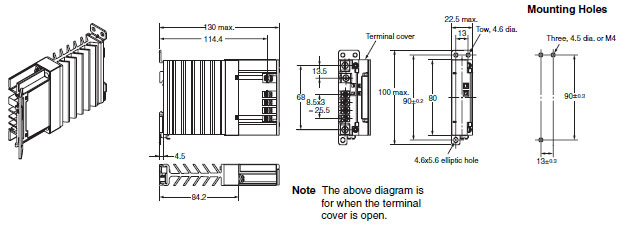

• Slim design (width: 22.5 mm) incorporating a heat sink.

• In addition to screw mounting, DIN track mounting is also possible.

• Certified by EC, UL, and CSA.

Rated load voltage	100 to 240 VAC (50/60 Hz)
Operating voltage range	75 to 264 VDC (50/60 Hz)
Applicable load current	20 A (Ta = 40)
Minimum load current	0.1 A
Inrush current resistance (peak value)	220 A (60 Hz, 1 cycle)
Permissible (I²t)	260 A²s
Applicable load (with Class-1 AC resistive load)	4 kW (at 200 VAC)
Applicable load (with Class-1 AC resistive load)	4 kW (at 200 VAC)

Input method	Voltage input
Rated input voltage	12 to 24 VDC
Operating input voltage range	9.6 to 30 VDC
Must operate voltage	9.6 VDC max.
Must release voltage	1 VDC min.
Input current	7 mA DC max. (at rated input voltage)

Output OFF collector voltage	30 VDC max.
Maximum carry current	0.1 A
Output form	Independent NPN open collector

Ambient temperature
Operate time		1/2 of load power source cycle + 1 ms max.
Release time		1/2 of load power source cycle + 1 ms max.
Main circuit	Output ON voltage drop	1.6 V rms max.
Main circuit	OFF leakage current	10 mA max. (at 200 VAC)
Alarm output	Output ON voltage drop	1.5 V max.
Alarm output	OFF leakage current	0.1 mA max.
Insulation resistance		100 MΩ min. (at 500 VDC)
Dielectric strength		2,500 VAC, 50/60 Hz for 1 min
Vibration resistance		Destruction: 10 to 55 to10 Hz, 0.35-mm single amplitude
Shock resistance		Destruction: 294 m/s²
Ambient temperature		Operating: -20 to 60°C (with no icing or condensation) Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity		45% to 85%
Weight		Approx. 300 g
Certified standards		UL508, CSA22.2 No. 14, EN60947-4-3 (IEC947-4-3); Certified by VDE
EMC		Emission: EN55011 Group 1 Class B Immunity: EN61000-6-2
EMC		Emission: EN55011 Group 1 Class B Immunity: EN61000-6-2

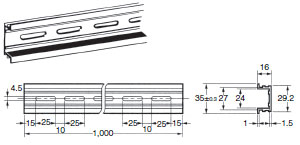

Note: Values in parentheses indicate dimensions for the PFP-50N.
