Omron, FL Series
Lighting for Image Processing
FL Series
Brand:

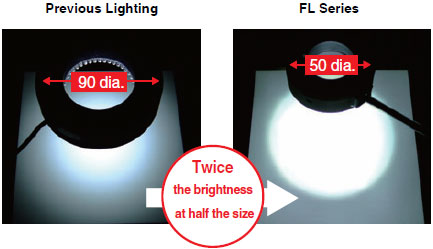

Next generation ODR technology

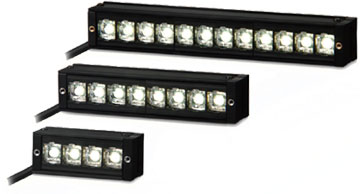

Bar Light
FL-BR Series

FL Series Features 1

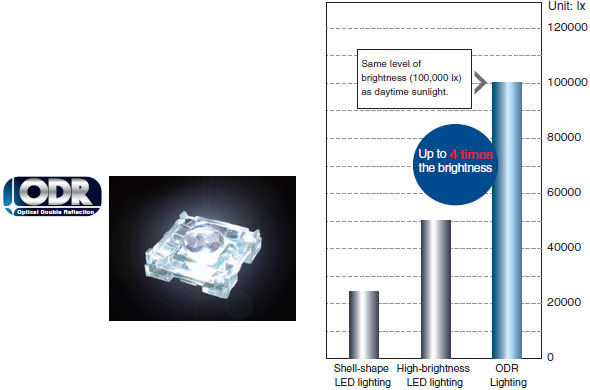

• High-brightness ODR lighting beyond the limitations of LEDs.

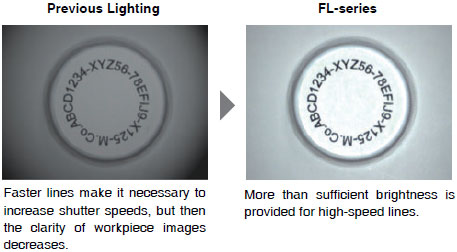

• Stable inspection even for high-speed applications.

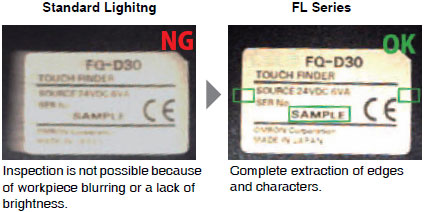

• Bright even through a polarizing filter.
• Easy wiring, mounting, and adjustment.

FL Series Features 2

Wiring

FL Series Features 3

The cable can extend from either direction, allowing for horizontal or vertical wiring layouts on the mounting surface.

Mounting and Adjustment

FL Series Features 4

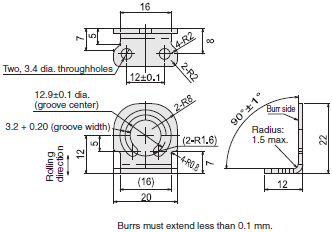

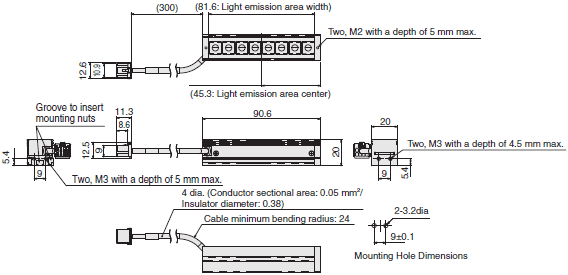

The light is structured for mounting with nuts to an arm on the back or side surfaces.
Minute changes in the position can be achieved by sliding the light.

FL Series Features 5

Specialized mounting brackets enable mounting at a flexible angle.

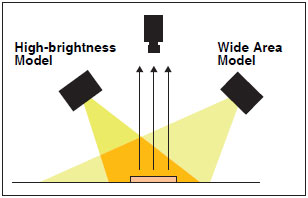

Illumination Structure

FL Series Features 6

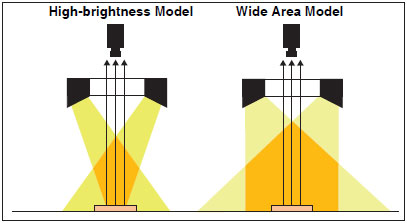

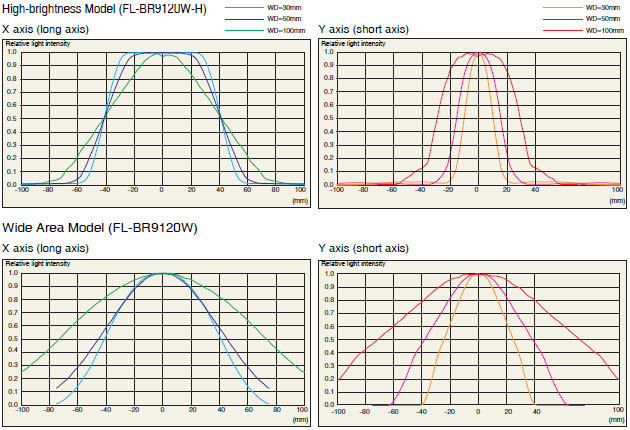

Lighting Intensity Distribution Characteristics

FL Series Features 7

Applications

FL Series Features 8
FL Series Features 9

Direct Ring Light
FL-DR Series

FL Series Features 10

• High brightness in a small package.

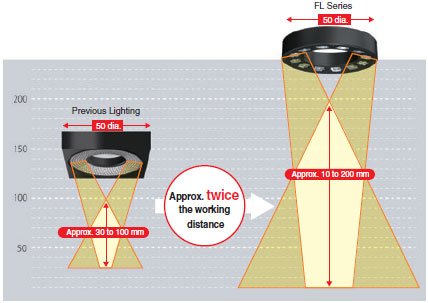

•Wide range of working distance.

FL Series Features 11
FL Series Features 12

Illumination Structure

FL Series Features 13

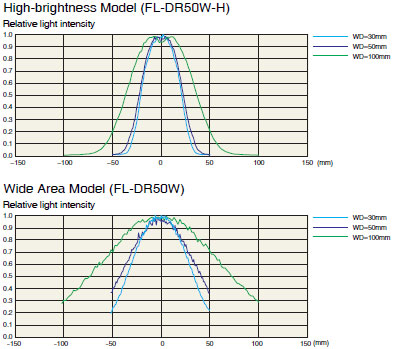

Lighting Intensity Distribution Characteristics

FL Series Features 14

Applications

FL Series Features 15
FL Series Features 16

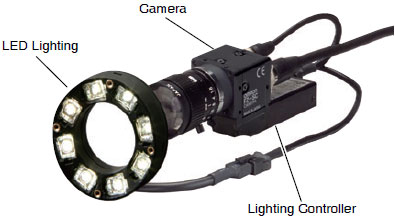

Camera-mount Lighting Controller for FL Series
FL-TCC Series

• No separate power supply is required because the power is supplied from the Camera.
• Light is emitted when a trigger signal is received from the Camera.
• Simple connection between the Camera and the Lighting with a single cable

FL Series Features 17

Digital Lighting Controller for FL series
FL-STC Series

Easy Control and Adjustment of the Lighting

With a compact design small enough to fit in the palm of your hand, the Controller can be built into the control panel or in the gap between production lines.
By using the longest lighting cable in the industry (25 m), the Controller can be installed along with the image processing monitor in a variety of locations. It is possible to adjust the lighting while looking at the screen.

Connect to a Remote Control Panel

FL Series Features 20

Mount to a DIN Rail underneath the Line or in the Gap between Tables

FL Series Features 21

Lighting Control without Programming

This enables light emission synchronized with the camera using essentially any trigger, such as a photoelectric sensor.
The Controller can be connected to an image processing device to control lighting without any programming on a PLC.

[ Control Output ]
• PNP/NPN models
• Power source: 24 V

[ Lighting Emission Controls ]
• Lighting triggers can be used individually for each channel.
• Lighting delay and lighting time can be controlled.

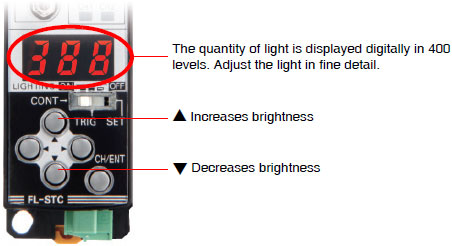

Intuitive Digital Light Controls

Digital adjustment of light emission makes it easy to reproduce the lighting environment after line switchovers.

FL Series Features 25
