Microscan, Nerlite MAX Series

Smart Series MAX large area LED vision lighting provides a high intensity output, featuring IP67 industrial sealing and the brightest LEDs in their class. The compact lights include a built-in controller for a complete and easily integrated solution for rugged automation environments. Versatile 10° spot and 50° flood lens options allow them to be used at both near and far distances to accommodate a variety of applications.

Available in 2 colors and 3 sizes
Smart Series Technology: Built-in controller with continuous and high output strobe modes
High intensity output with state of the art LED vision lighting technology
IP67 enclosure with M12 connectors
Versatile 10 degree spot or 50 degree flood lens options

Illumination Example:

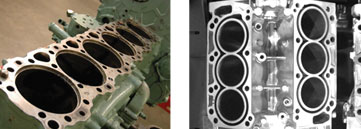

Large engine block: Provides good contrast over large areas to perform product inspection.

Functionality:

MAX 45

DESCRIPTION	LENS	nm/K	CONT. OUTPUT (lumens)	STROBE OUTPUT (lumens)
MAX-45, Red	10°	625 nm	49	165
MAX-45, Red	50°	625 nm	49	165
MAX-45, White	10°	5000 K - 8300 K	151	412
MAX-45, White	50°	5000 K - 8300 K	151	412

Active Area: 0.8” (20 mm) x 0.8” (20 mm) Current Draw at 24 VDC (typ.): 75 mA
Weight: 5 oz. (144 g)
Dimensions: H 2.24” (57 mm) x W 1.77” (45 mm) x D 1.20” (30.5 mm)

MAX 100

DESCRIPTION	LENS	nm/K	CONT. OUTPUT (lumens)	STROBE OUTPUT (lumens)
MAX-100, Red	10°	625 nm	195	661
MAX-100, Red	50°	625 nm	195	661
MAX-100, White	10°	5000 K - 8300 K	604	1648
MAX-100, White	50°	5000 K - 8300 K	604	1648

Active Area: 0.8” (20 mm) x 3.6” (92 mm) Current Draw at 24 VDC (typ.): 275 mA
Weight: 12 oz. (353 g)
Dimensions: H 2.24” (57 mm) x W 4.17” (106 mm) x D 1.20” (30.5 mm)

MAX 300

DESCRIPTION	LENS	nm/K	CONT. OUTPUT (lumens)	STROBE OUTPUT (lumens)
MAX-300, Red	10°	625 nm	584	1982
MAX-300, Red	50°	625 nm	584	1982
MAX-300, White	10°	5000 K - 8300 K	1813	4944
MAX-300, White	50°	5000 K - 8300 K	1813	4944

Active Area: 0.8” (20 mm) x 11.2” (284 mm) Current Draw at 24 VDC (typ.): 750 mA
Weight: 36 oz. (1007 g)
Dimensions: H 2.24” (57 mm) x W 11.81” (300 mm) x D 1.20” (30.5 mm)

TITLE	DOCUMENT TYPE	SIZE
Smart Series MAX Specification Sheet	Catalog	1111 KB
Smart Series MAX Configuration Guide	Catalog	438 KB
Smart Series MAX Quick Start Guides	Zip	4093 KB
Smart Series MAX Drawings	Zip	1105 KB
