Microscan, Nerlite CDL Series

CDI (Cloudy Day Illuminators) provides self-contained continuous diffuse lighting performance. It is designed for critical applications involving inspection of highly faceted and undulating reflective surfaces, such as CD artwork verification and the inspection of solder patterns on circuit boards. CDI illumination allows products to be inspected in the package, including blister-packaged pharmaceutical products and computer chips inside a clear packaging tube.

Available in 2 colors
Outstanding uniformity
Self-contained cloudy day lighting for highly complex applications
Ideal for extremely difficult specular surfaces
Makes glass and clear plastic container surfaces disappear

Illumination Example:

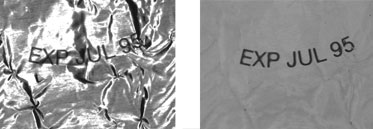

Wrinkled foil pouch: Image captured clearly shows date and lot code

Functionality:

CDI 200/75

DESCRIPTION	nm/K	CONT. CURRENT			LUX
		ON AXIS LIGHTING	OFF AXIS LIGHTING	FAN
SCDI-200/75, Red Continuous	636 nm	300 mA	380 mA	100 mA	1300
SCDI-200/75, White Continuous	6500 K	600 mA	760 mA	100 mA	2600

Light Aperture: 5.2” (132 mm) diameter Field of View: 3” (75 mm)
Stand Off: 1” (25 mm) Weight: 56 oz. (1597 g)
Dimensions: H 8.12” (206.3 mm) x W 9.78” (248.5 mm) x D 6.16” (156.4 mm)

TITLE	DOCUMENT TYPE	SIZE
CDI Illuminator Configuration Guide	Catalog	1171 KB
CDI Illuminator Specification Sheet	Catalog	692 KB
CDI Illuminator Drawings	Software	459 KB
