Autonics, BWM Series
Mapping Sensors
BWM Series
Brand:
The BWM series mapping sensors are optimized for glass substrate detection with double scan method and excellent optical detection performance. The sensors can detect thin glass substrates with low levels of light reflection and support CC-Link and EtherCAT communication protocols. Users can easily check the teaching area using the installation instruction mode. The mapping sensors can be used to detect display panels on transport cassettes.

    Common Features

  • High performance lens with long sensing distance 1.Through-beam type: 30 m 2.Diffuse reflective type: 1 m 3.Retroreflective type: 3 m (MS-2A)
  • Stable glass substrate detection with using double scan method
  • Sensing distance: glass G size +30%
  • Customized models available: sensing channels (8 to 62 channels), optical axis pitch (25 to 200 mm)
  • Communication output: CC-Link (ver 1.1, 2.0), EtherCAT
  • Easy installation with installation instruction mode
  • Mutual interference prevention, bent optical axis alarm, 9-stage sensing level setting, emitter error alarm
  • Bright status indicators on slave units *Korea patent: 10-1895401, China patent pending: 201810505245.8, Japan patent pending: 2018-097660
  • closed-loop

    Customized Models Available

  • Users can order customized models with different sensing channels and optical axis pitch depending on user requirements.
  • closed-loop

    Double Scan Method for Stable Glass Substrate Detection

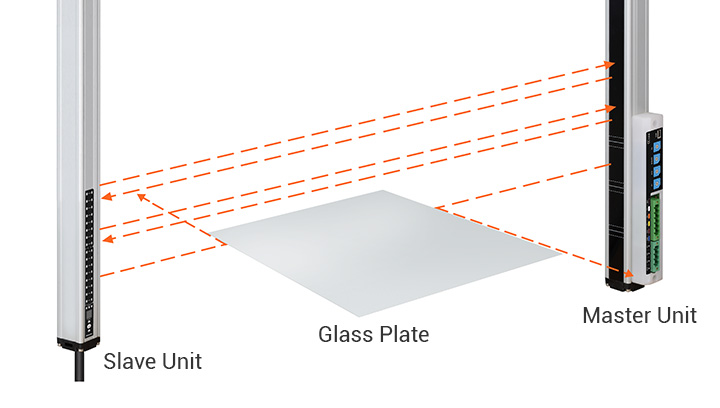

    The master and slave units contain both emitter and receivers which allow detection of light amount from both sides, offering high optical detection performance. This double scan method allows detection of thin glass substrates with low levels of light reflection.

    onetouch

    Installation Instruction Mode and Auto Teaching Function

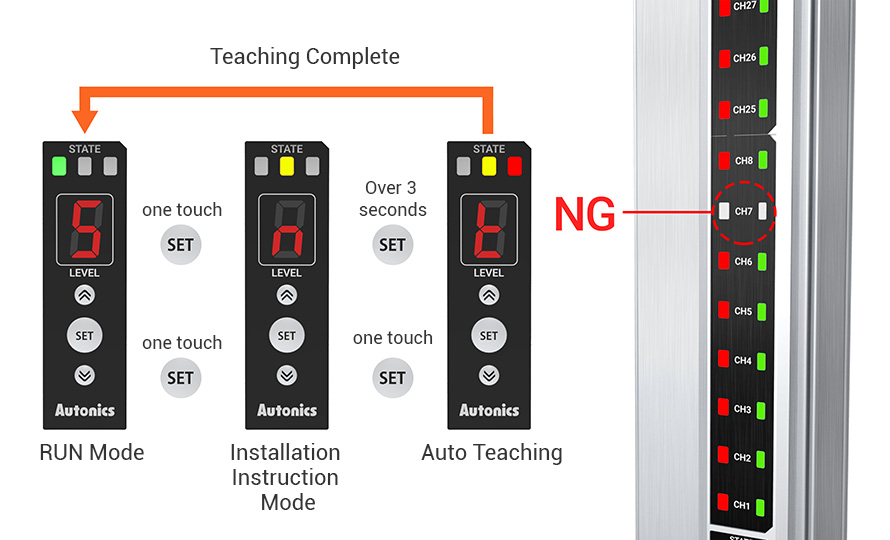

    The installation instruction mode allows users to check if the detection target object is in proper position using the output indicators. The auto teaching function allows all sensing channels to be set in uniform light amount for optimal sensitivity setting.

    onetouch

    Sensing Level Setting to Minimize Influence from Bent Glass or Scattered Reflections

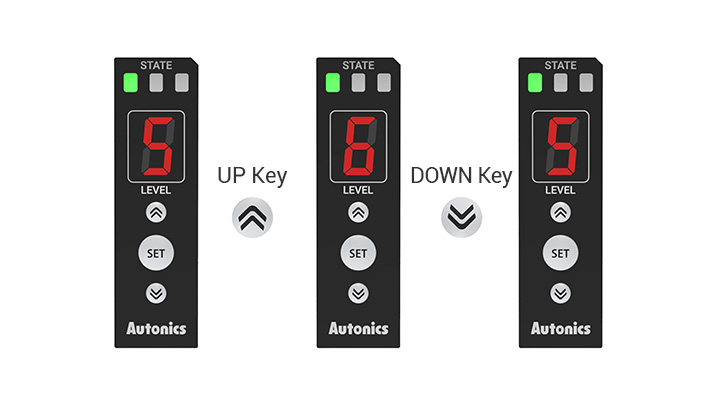

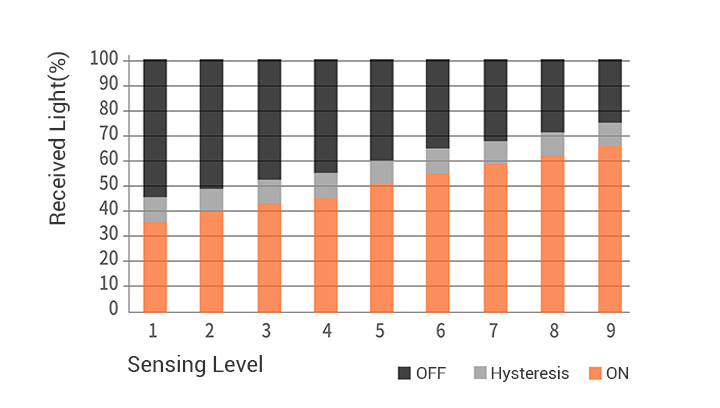

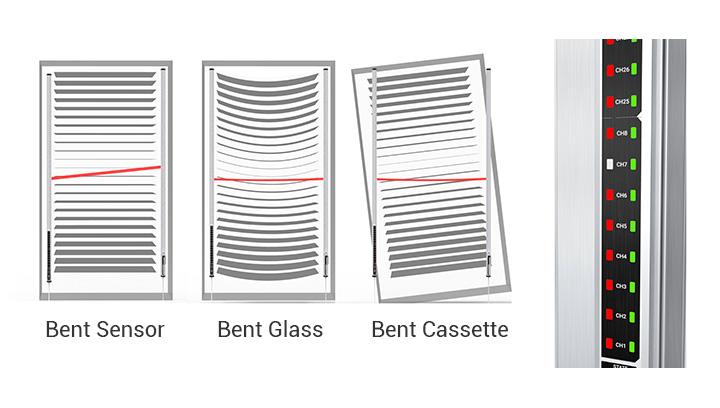

    The sensing level setting allows optimal sensing with minimal influence from bent glass or scattered reflections. The sensing level can be set in 9 different sensitivity levels for stable detection in various environment settings. If the mapping sensor or cassettes are bent, sensitivity adjustments can be made without removing the glass substrates.

    onetouch
    onetouch
    onetouch

    CC-Link, EtherCAT Communication Protocol Support

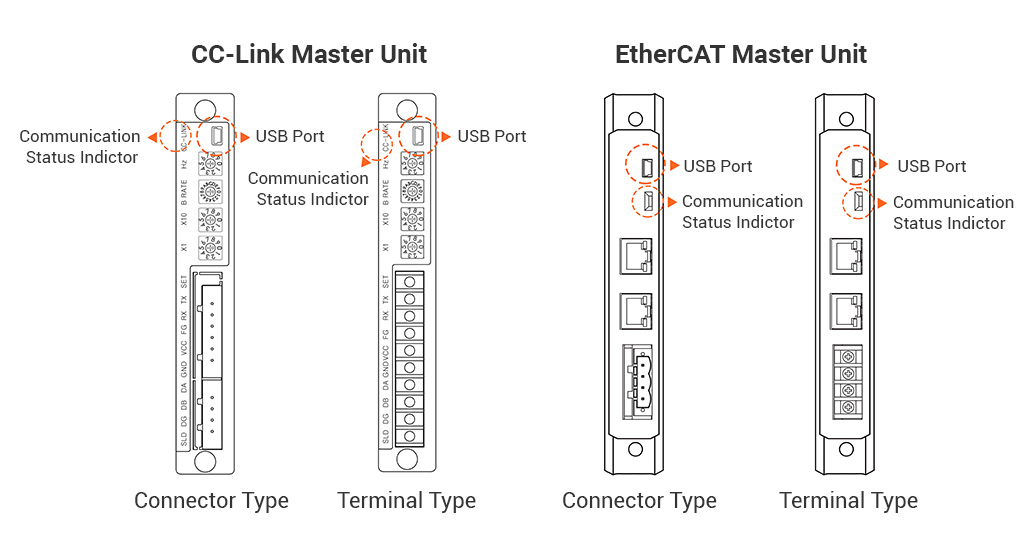

    The units offer support for CC-Link or EtherCAT communication support and also offer options for connector type connection or terminal type connection.

    onetouch

    Mutual Interference Prevention Function

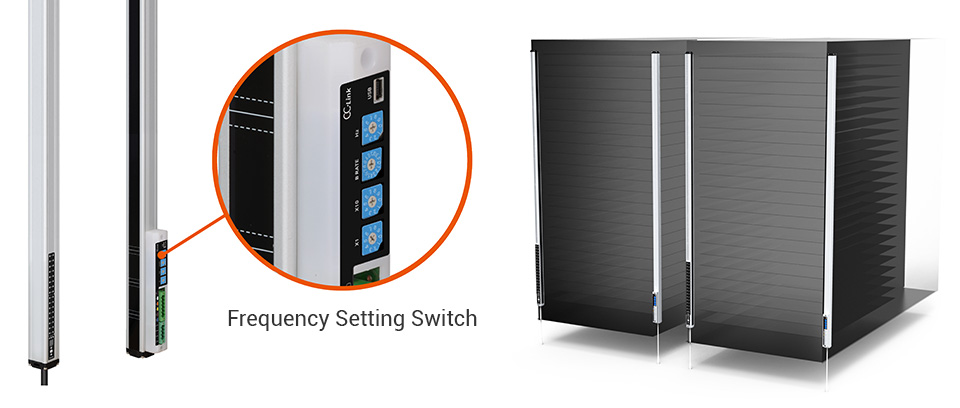

    When 2 or more units need to be installed near each other, users can set different frequency for each unit to prevent malfunction from mutual interference.

    onetouch

    Check Operation Status with Bright Indicators

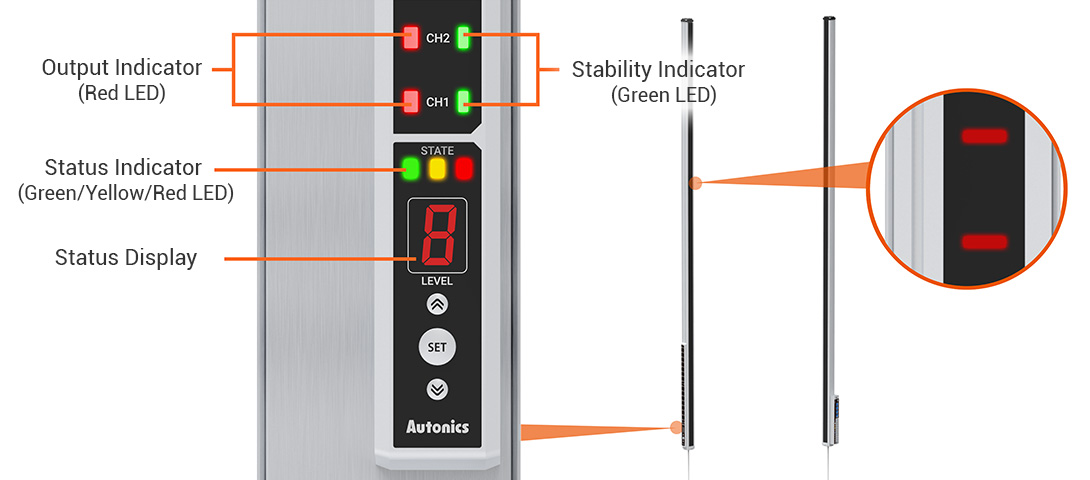

    The bright indicators allow users to easily check operation and communication status even from long distances.

    onetouch
