Rated input voltage | 3-phase, 200 to 480 VAC (3-wire) | |
---|---|---|
Input load | Approx. 2.7 VA | |
Operating time | Phase sequence | 0.1 s±0.05 s |
Phase loss | 0.1 s max. (when the voltage changes rapidly from 100% to 0% of rated voltage) | |
Reset method | Automatic reset | |
Indicators | Power (PWR): Green, Relay output (RY): Yellow | |
Output relays | One SPDT relay (NC operation) | |
Output relay ratings | Rated load
Resistive load 5 A at 250 VAC 5 A at 30 VDC Maximum switching capacity: 1,250 VA, 150 W Minimum load: 5 VDC, 10 mA (reference values) Mechanical life: 10 million operations min. Electrical life: 5 A at 250 VAC or 30 VDC:50,000 operations 3 A at 250 VAC/30 VDC:100,000 operations |
|
Ambient operating temperature | -20 to 60°C (with no condensation or icing) | |
Storage temperature | -25 to 65°C (with no condensation or icing) | |
Ambient operating humidity | 25% to 85% (with no condensation) | |
Storage humidity | 25% to 85% (with no condensation) | |
Altitude | 2,000 m max. | |
Terminal screw tightening torque | 0.49 to 0.59 Nm | |
Terminal wiring method | Recommended wire
Solid wire: 2.5 mm2 Twisted wires: AWG16, AWG18 Note: 1. Ferrules with insulating sleeves must be used with twisted wires. 2. Two wires can be twisted together. Recommended ferrules Al 1,5-8BK (for AWG16) manufactured by Phoenix Contact Al 1-8RD (for AWG18) manufactured by Phoenix Contact Al 0,75-8GY (for AWG18) manufactured by Phoenix Contact |
|
Case color | N1.5 | |
Case material | PC, UL 94 V-0 | |
Weight | Approx. 60 g | |
Mounting | Mounts to DIN Track. | |
Dimensions | 17.5 × 80 × 74 mm (W × D × H) |
Input voltage range | 200 to 480 VAC | |
---|---|---|
Input frequency | 50/60 Hz (no presumed range) | |
Overload capacity | Continuous 500 V | |
Phase loss detection level | 80%±10% of rated input
Calculation Formula = 1 - ((Highest phase-to-phase voltage - Lowest phase-to-phase voltage)/ Average three-phase phase-to-phase voltage) |
|
Applicable
standards |
Conforming standards | EN 60947-5-1
Installation environment (pollution level 2, installation category III) |
EMC | EN 60947-5-1 | |
Safety standards | UL 508 (Recognition), Korean Radio Waves Act (Act 10564),
CSA: C22.2 No.14, CCC: GB14048.5 |
|
Insulation resistance | 20 MΩ min.
Between external terminals and case Between input terminals and output terminals |
|
Dielectric strength | 2,000 VAC for one minute
Between external terminals and case Between input terminals and output terminals |
|
Noise immunity | 1,500 V power supply terminal common/normal mode
Square-wave noise of ±1 μs/100 ns pulse width with 1-ns rise time |
|
Vibration resistance | Frequency: 10 to 55 Hz, 0.35-mm single amplitude
10 sweeps of 5 min each in X,Y, and Z directions |
|
Shock resistance | 100 m/s2, 3 times each in 6 directions along 3 axes | |
Degree of protection | Terminals: IP20 |
The following diagram shows the relationship between the mounting distances and the ambient temperature.
If the relay is used with an ambient temperature that exceeds these values, the temperature of the K8DS may rise and shorten the life of the internal components.
Sample: K8DS-PH
Distance between products: 0, 5, and 10 mm min.
last update: April 3, 2017

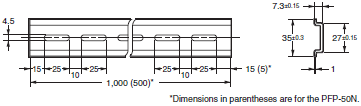

DIN Tracks
PFP-100N
PFP-50N
