Large Display Temperature Controllers
TX Series
Brand:
The TX Series temperature controllers feature easy-to-read LCD display with large, 15.3 mm white PV characters. The 11-segment displays used for PV and SV are useful for displaying alphanumeric characters. The temperature controllers also feature 50 ms high-speed sampling cycle and ±0.3% display accuracy. The TX Series also features a compact, space saving design with 45 mm depth. With a 30% reduction in rear-length size, the controllers offer installation flexibility in limited spaces. The temperature controllers also offer various output options including current output, transmission output and RS485 communication output, for application in various environment settings

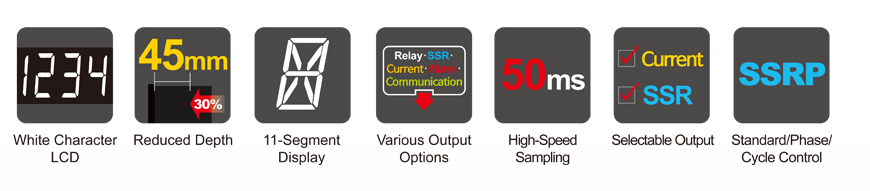

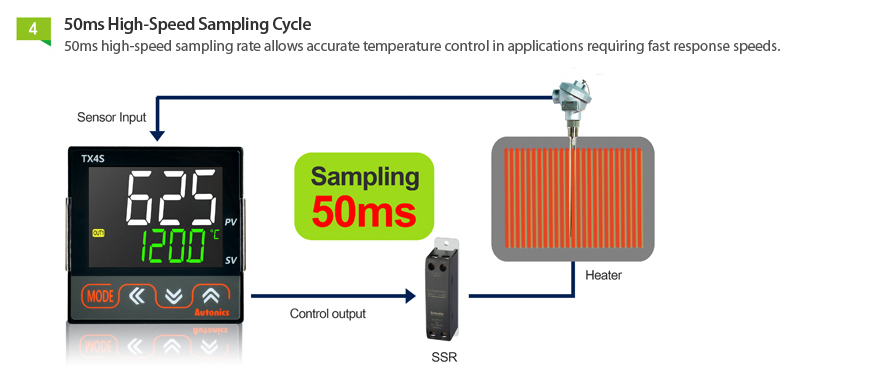

• 50 ms high-speed sampling and ±0.3% display accuracy

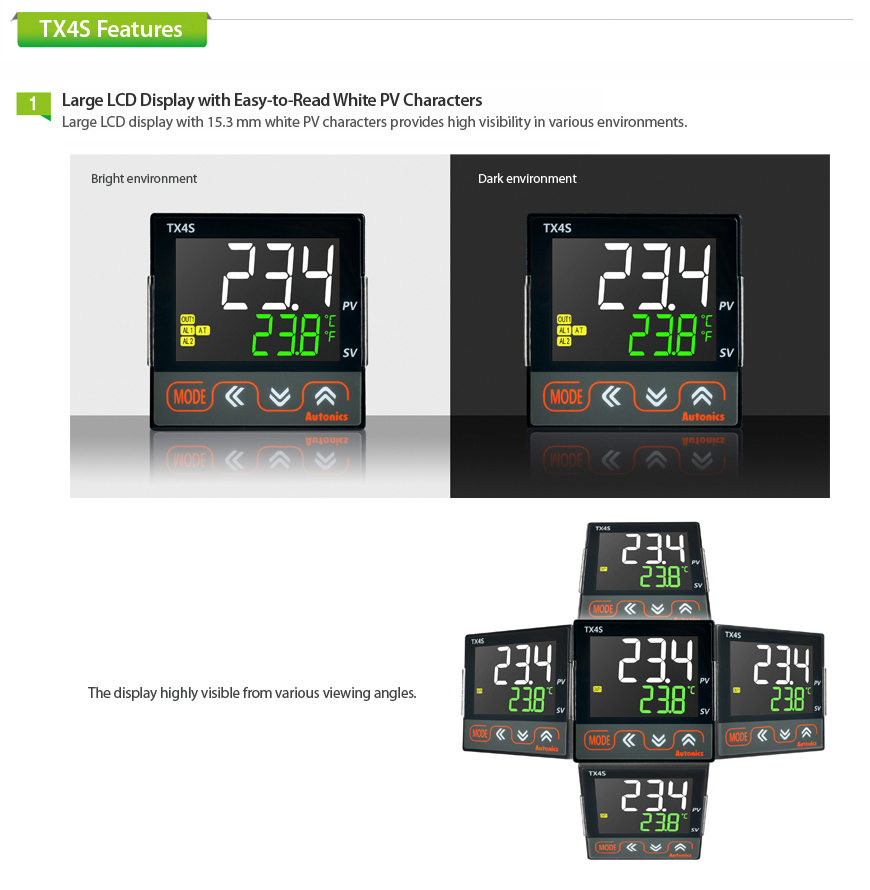

• Large LCD display with easy-to-read white PV characters

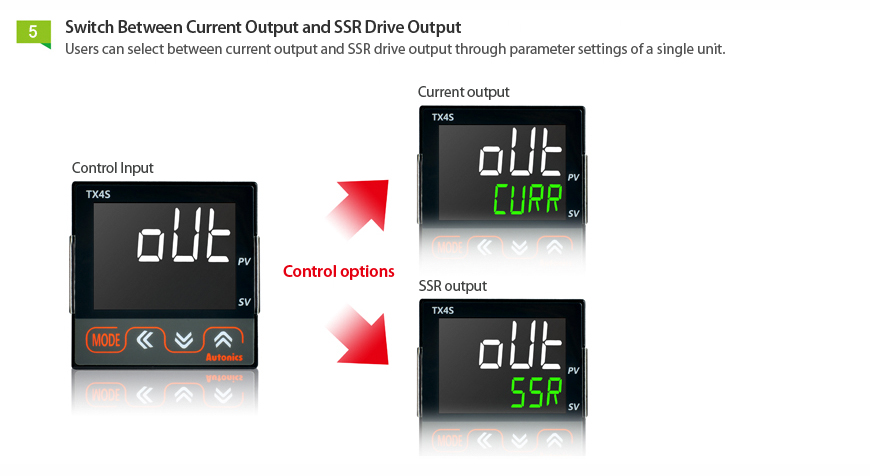

• Switch between current output and SSR drive output

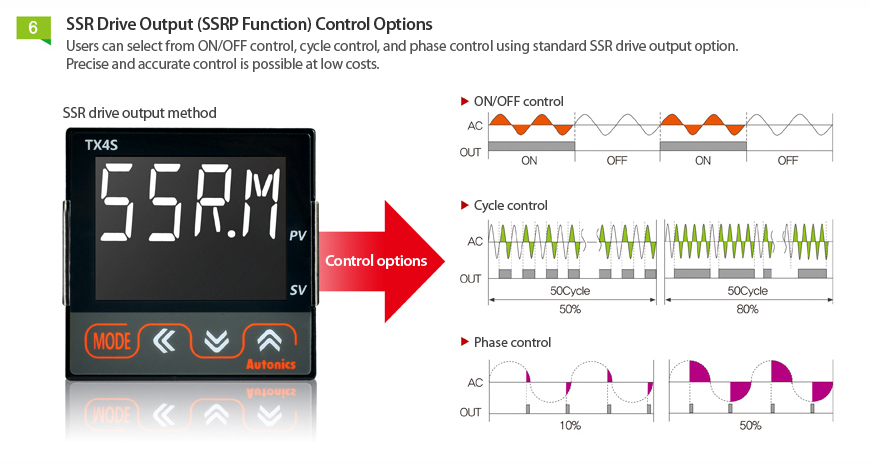

• SSR drive output (SSRP function) control options: ON/OFF control, cycle control, phase control

• Communication output model available : RS485 (Modbus RTU)

• Parameter setting through PC (RS485 communication)

• Comprehensive device management software (DAQMaster) provided

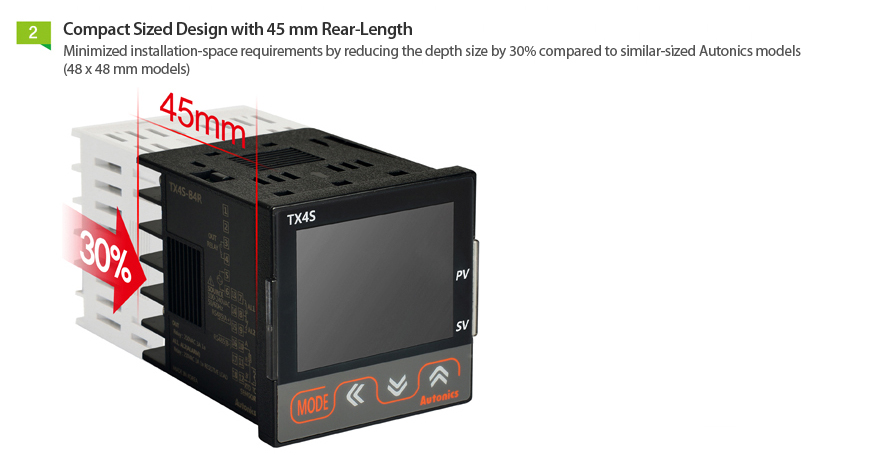

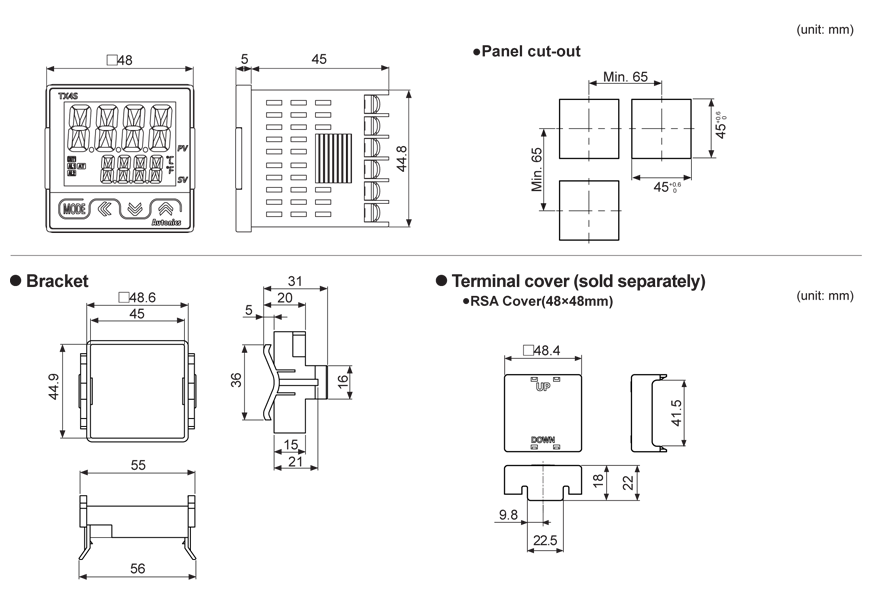

• Compact, space-saving design with 45 mm depth

• 30% rear-length size reduction compared to similar-sized Autonics models (48 x 48 mm models)

• Terminal protection cover sold separately : RSA-COVER

tps30 tps30 tps30 tps30 tps30 tps30 tps30 tps30

TITLE DOCUMENT TYPE SIZE
TX Series (Communication Manual) Manual 1257 KB
DAQMaster V2.7 (User manual) Manual 9519 KB
Temperature Controllers Selection Guide Manual 5244 KB
TX Series Manual 1715 KB
Temperature Controllers (Technical Description) Catalog 416 KB
Temperature Controllers (Product Overview) Catalog 1338 KB
TX Series Catalog 2659 KB
