Autonics, TCN Series
Home > Product > Control Components > Temperature Controllers > TCN Series
Large Display Temperature Controllers
TCN Series
Brand:
TCN Series is economical temperature controllers having dual preset indicator display to increase user convenience. The series realizes ideal temperature controlling with newly developed PID control algorithm and 100ms high speed sampling; in addition, the series allows users to take advantage of economical controlling with SSRP and relay outputs. The TCN Series is also available in low voltage models for wider user options.

• Realizes ideal temp. controlling with newly developed PID control algorithm and 100ms high speed sampling

• Built-in relay output or SSR drive output selectable : Enables to phase control and cycle controlwith SSR drive output (SSRP function)

• Dramatically increased visibility using wide display part

• Enhanced convenience of wiring and maintenance by connector plug type (TCN4S- -P)

• Mounting space saving with compact design : Approx. 38% reduced size compared with existing model (depth-based)

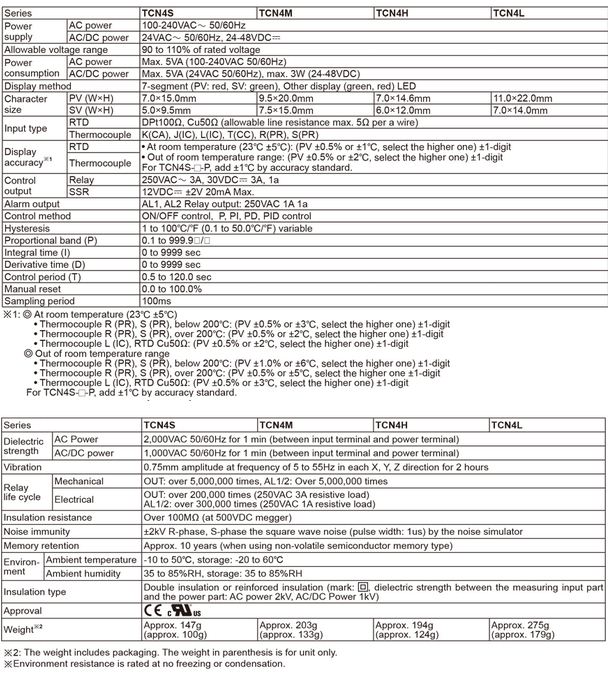

specifications

TITLE DOCUMENT TYPE SIZE
Temperature Controllers Selection Guide Manual 5244 KB
TCN Series Manual 1228 KB
Temperature Controllers (Technical Description) Catalog 416 KB
Temperature Controllers (Product Overview) Catalog 1338 KB
TCN Series (ENG) Catalog 1188 KB
