Autonics, TK Series
Home > Product > Control Components > Temperature Controllers > TK Series
Large Display Temperature Controllers
TK Series
Brand:
The TK series high accuracy type standard PID temperature controllers feature high-speed sampling cycle rate of 50 ms with ±0.3% display-accuracy. The controllers offer high precision temperature control with features such as simultaneous heating and cooling control and automatic/manual control options. The all-purpose temperature controllers are available in various sizes and input/output options, for stable and precise temperature control in any required application.

• New line-up: AC/DC low voltage type (except TK4N models)

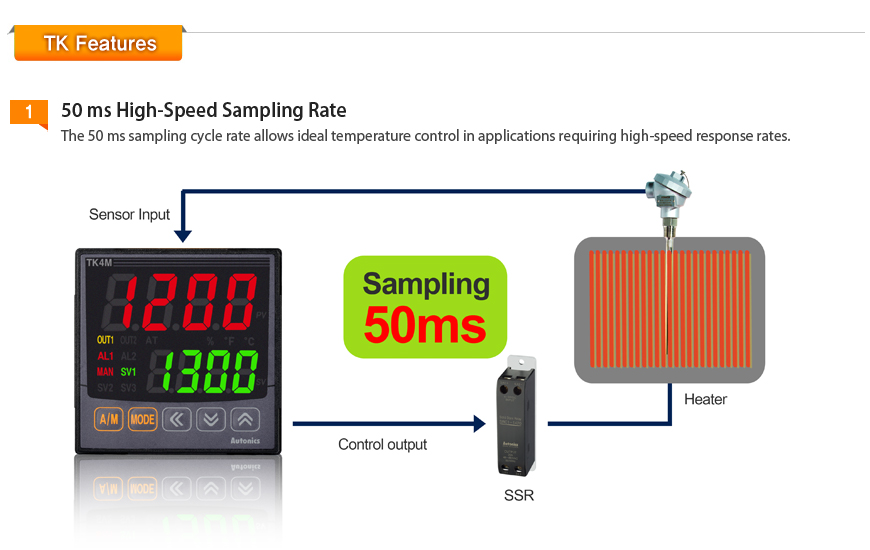

• 50 ms high-speed sampling rate and ±0.3% display accuracy

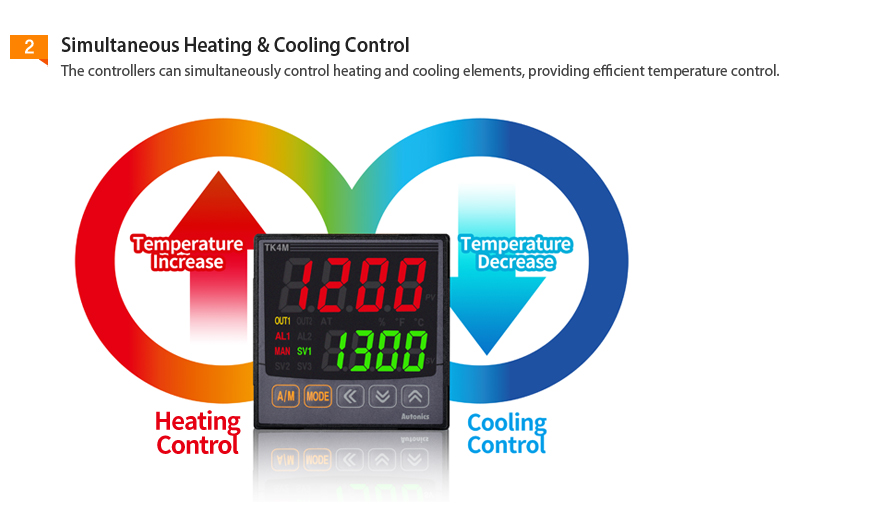

• Simultaneous heating and cooling control function

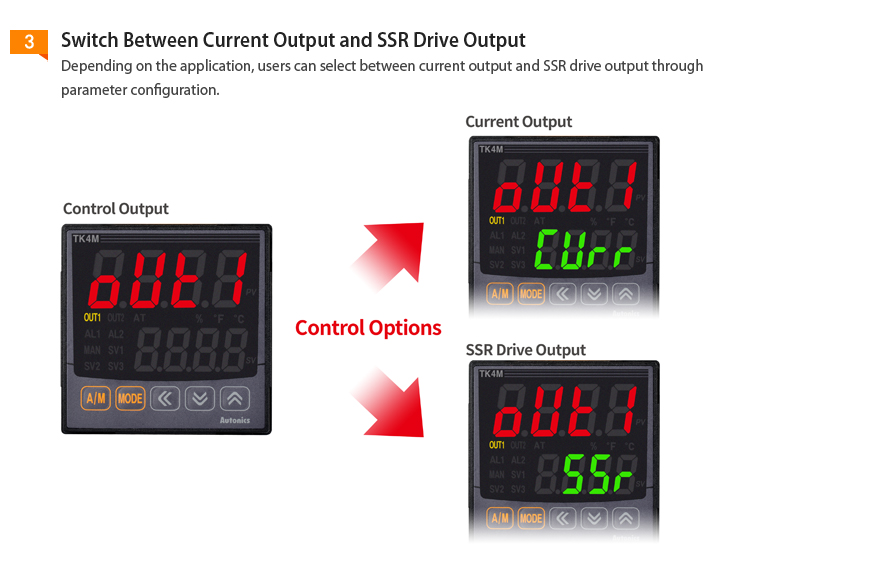

• Switch between current output and SSR drive output

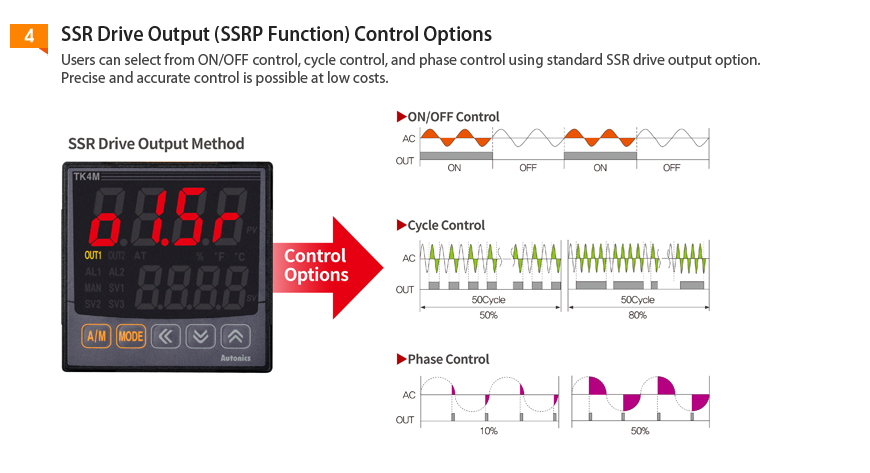

• SSR drive output (SSRP function) control options: ON/OFF control, cycle control, phase control

• Communication output models available : RS485 (Modbus RTU)

• Parameter configuration via PC (RS485 communication)

• DAQMaster software included (comprehensive device management software)

• Communication converter sold separately: SCM-US (USB to serial converter), SCM-38I (RS-232C to RS485 converter), SCM-US48I (USB to RS485 converter)

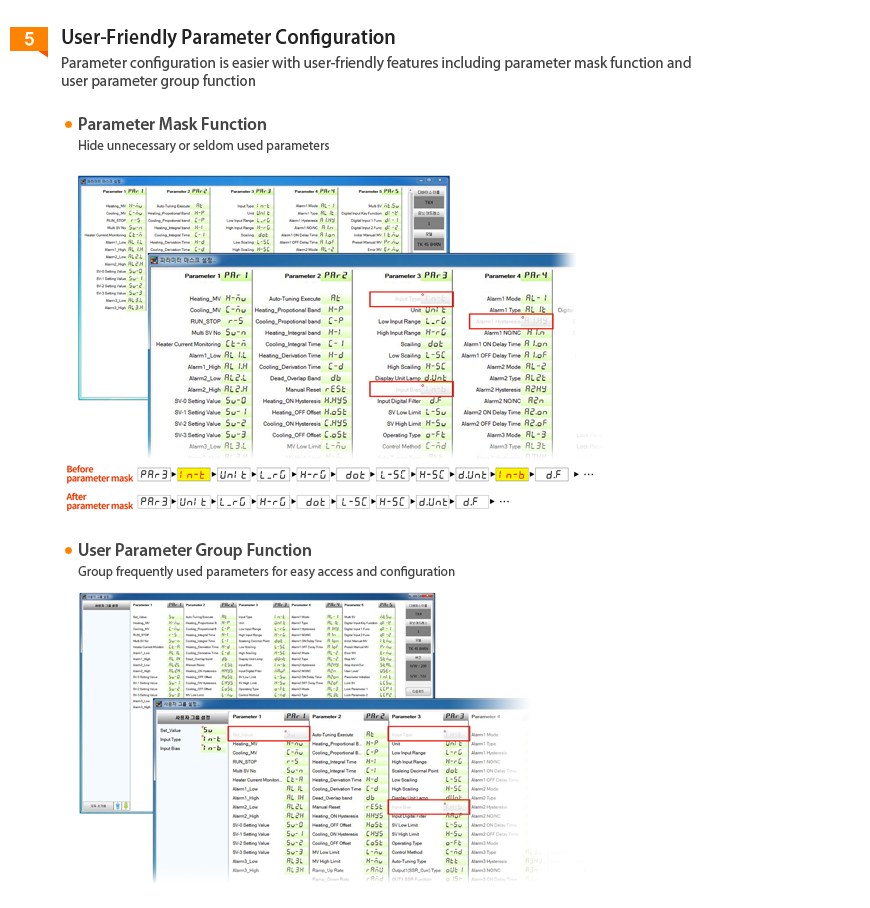

• User-friendly parameter features (via DAQMaster)

• SV preset function (up to 4 set values) using digital input terminals

• Heater disconnect alarm function (CT input)

• Current transformer (CT) sold separately: CSTC-E80LN, CSTC-E200LN

• Various input types and temperature ranges

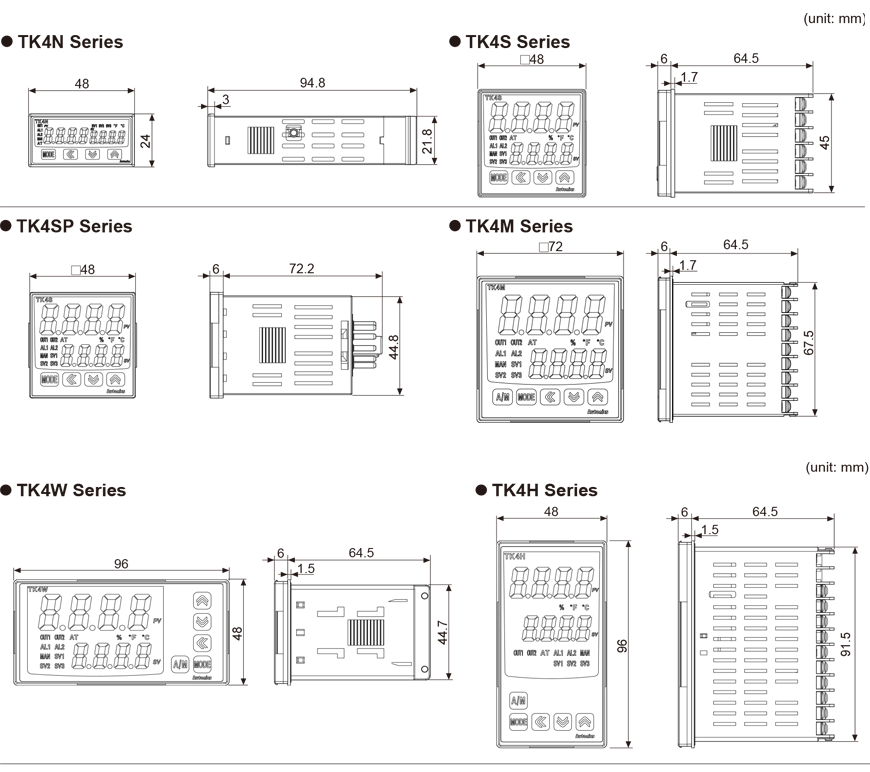

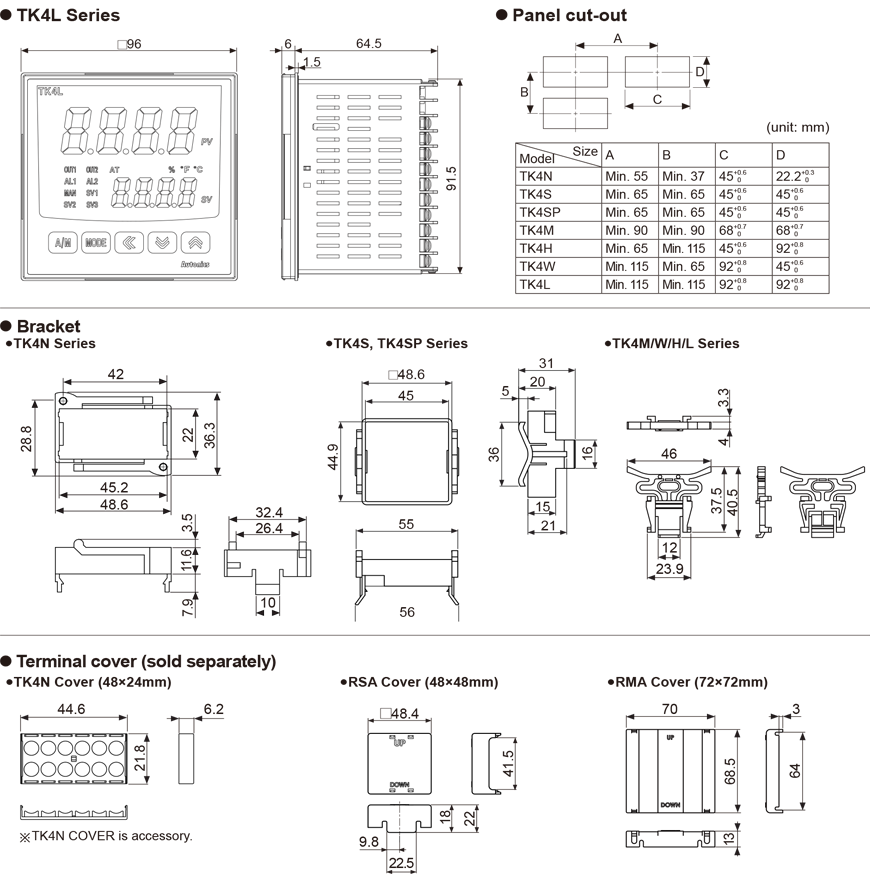

• Various DIN sizes: (48 x 24, 48 x 48, 72 x 72, 96 x 48, 48 x 96, 96 x 96 mm)

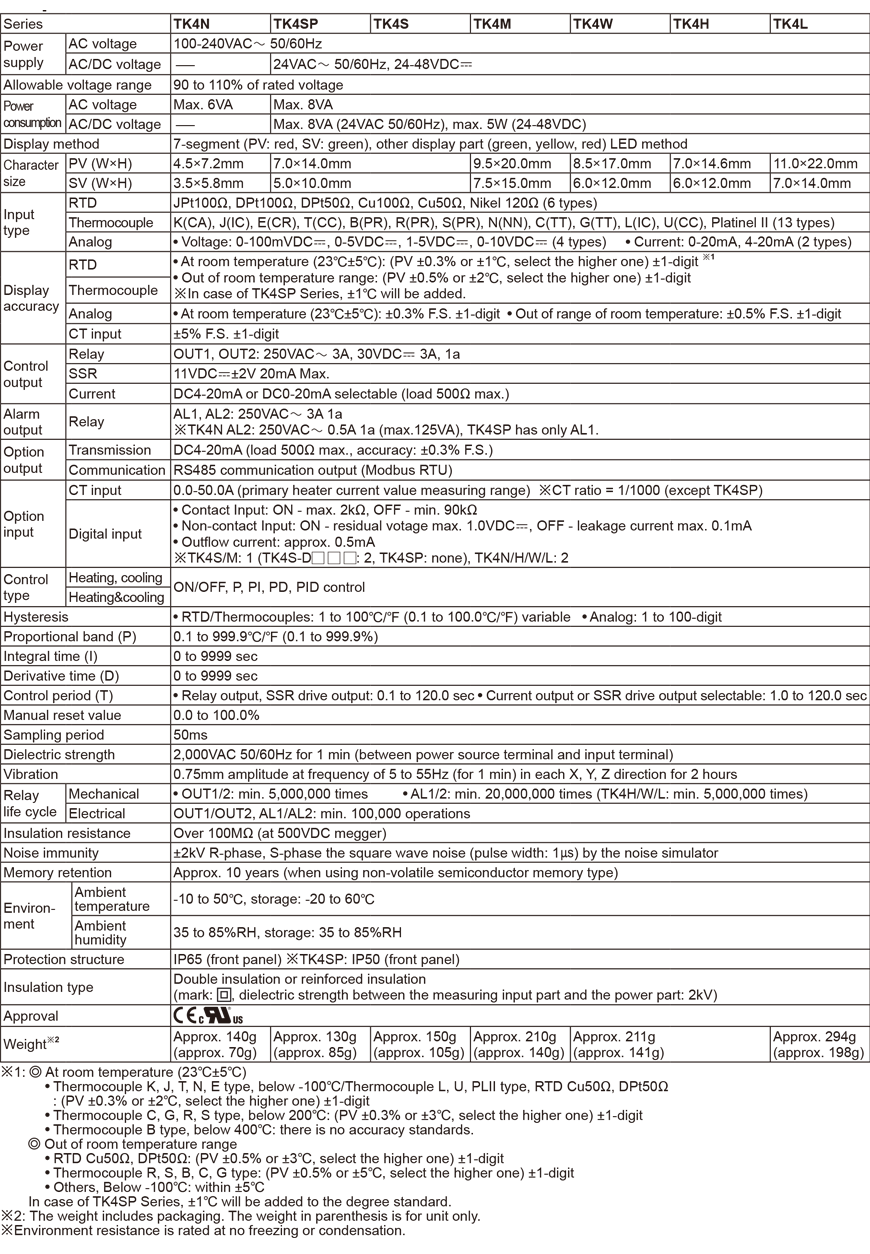

specifications specifications specifications specifications specifications specifications specifications specifications

TITLE DOCUMENT TYPE SIZE
TK - Q02H (RS485) (Technical Support Manual) Manual 2436 KB
DAQMaster Tutorial (Technical Support Manual) Manual 3140 KB
LP - TK(Modbus)(RS485) (Technical Support Manual) Manual 2140 KB
TK - XGT(RS485) (Technical Support Manual) Manual 2215 KB
TK - XGB(RS485) (Technical Support Manual) Manual 2249 KB
TK - XGB(RS485) (Technical Support Manual) Manual 2249 KB
Temperature Controllers Selection Guide Manual 5244 KB
TK Series (Communication manual) Manual 845 KB
TK Series (User manual) Manual 8045 KB
TK Series (User manual) Manual 1451 KB
Temperature Controllers (Technical Description) Catalogue 1388 KB
