Slim Screwless Relay Terminals
ABL Series
Brand:

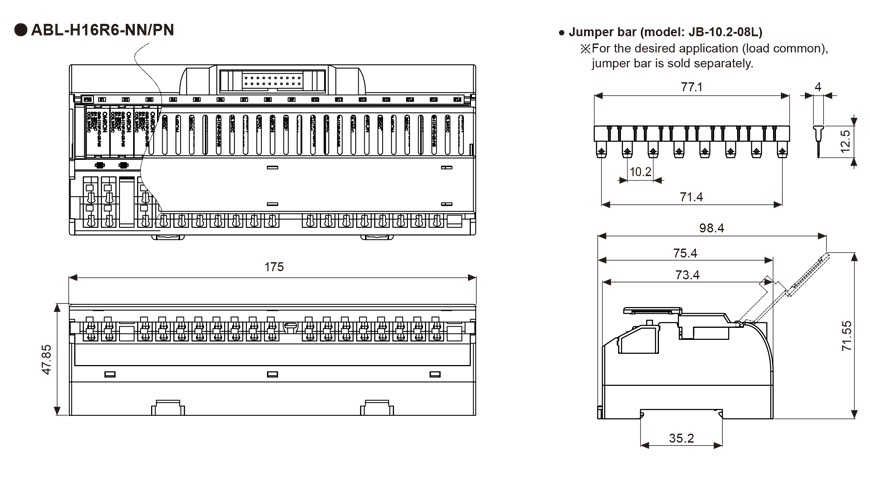

The ABL series screwless relay terminal blocks offer easy wiring and stable connection with screwless push-in type connection. Users can switch between independent and common output options using jumper bars. The ABL series is available in 1-pin, 4-pin and 16-pin models.

• Switch between independent and load common output with jumper bar
• Easy wiring and stable connection with screwless push-in connection
• Operation status indicator (blue LED)

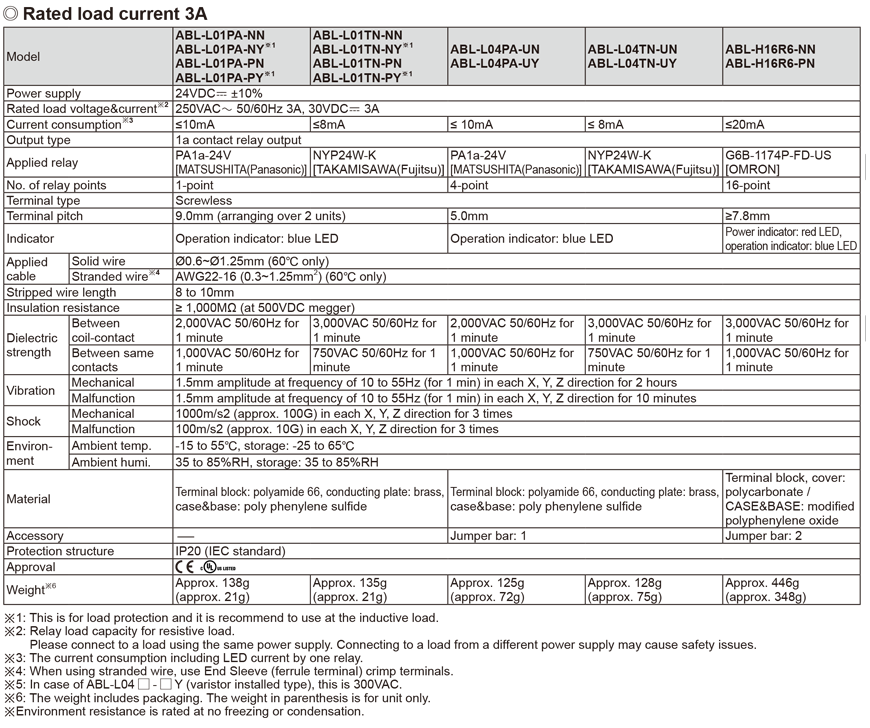

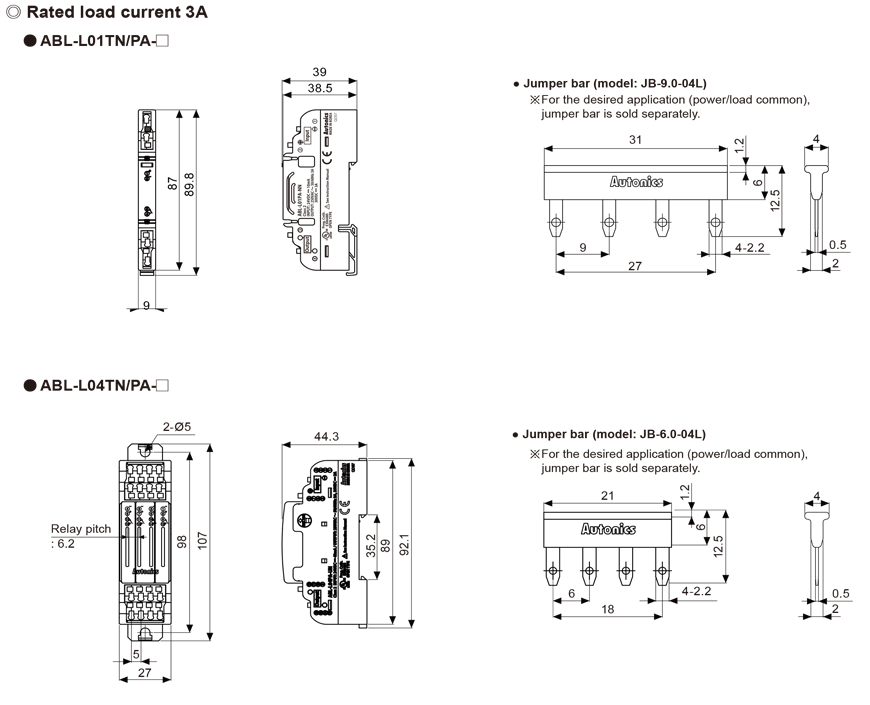

• Rated load voltage: 3 A
• Power common input using jumper bar
• DIN rail mount method
• Supported relays: [Fujitsu] NYP24W-K, [Panasonic] PA1a-24V

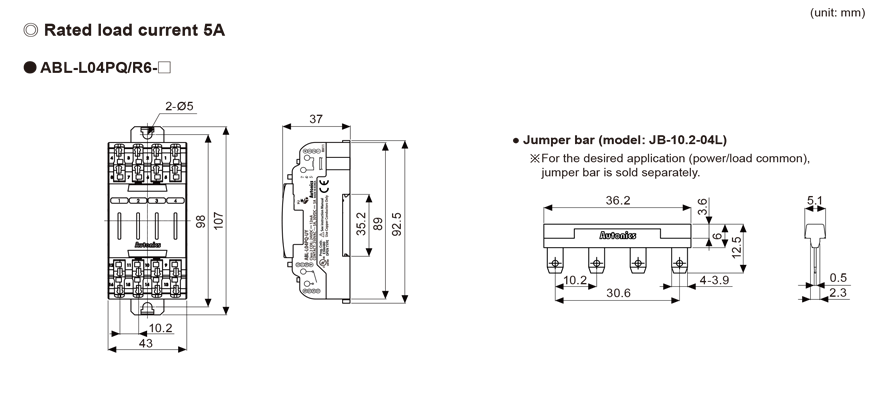

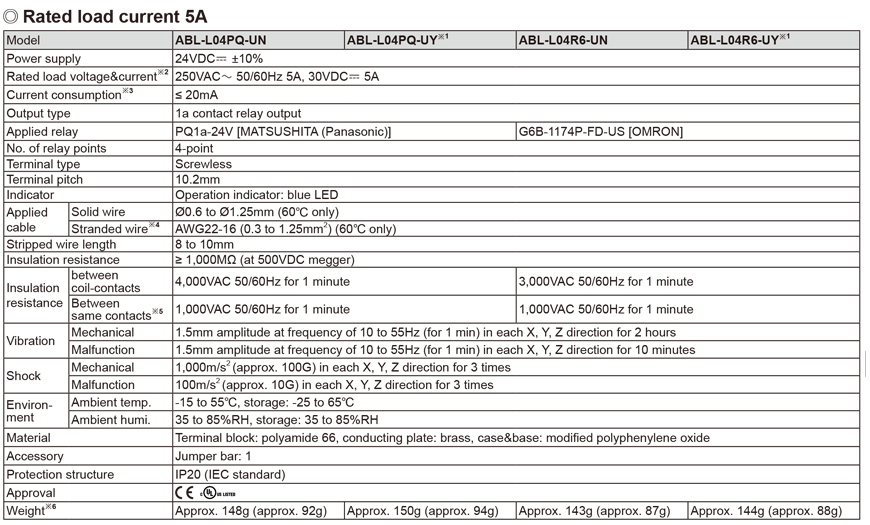

• Rated load voltage: 5 A
• Switch between NPN and PNP input using jumper bar
• Convenient relay removal with removal lever
• Relay protection cover
• DIN rail mount and screw mount methods
• Supported relays: [Fujitsu] NYP24W-K, [Panasonic] PQ1a-24V, [OMRON] G6B-1174P-FD-US,
• Rated load voltage: 3 A
• Convenient relay removal with relay ejector clip
• Relay protection cover
• DIN rail mount and screw mount methods
• Supported relays: [OMRON] G6B-1174P-FD-US

TITLE DOCUMENT TYPE SIZE
ABL Series Catalog 2570 KB
Power Relay Catalog 860 KB
ABL Series (1-Pin Type) Manual 1226 KB
ABL Series (4-Pin Type) Manual 3128 KB
ABL Series (16-Pin Type) Manual 1328 KB
