Screwless Solid State Relay Terminals
ASL Series
Brand:

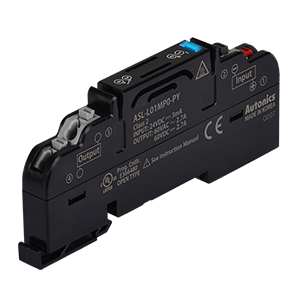

The ASL series solid state relay terminal blocks allow users to easily switch between NPN common and PNP common inputs using a jumper bar. Users can also change between independent and common output options using jumper bars. The screwless push-in type connection offers easy wiring and stable connection.

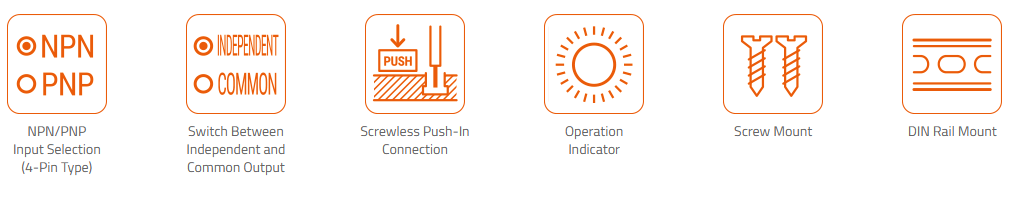

  • Switch between independent and load common output with jumper bar
  • Easy wiring and stable connection with screwless push-in connection
  • Operation status indicator (blue LED)
  • Supported solid state relays : [Fujitsu] SN-24A01C, [Omron] 3GMC-202P, [Panasonic] AQG2224, AQG12124, AQZ202D

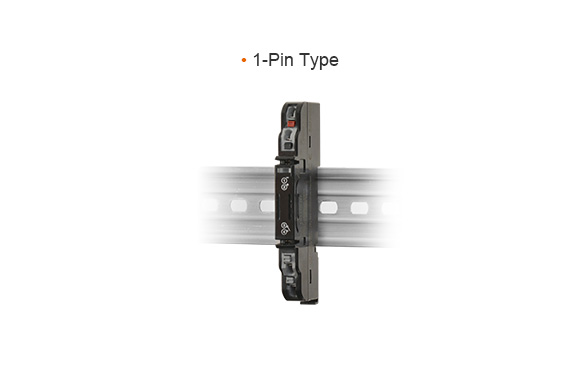

    • 1-Pin Type

  • Power common input using jumper bar
  • DIN rail mount method

    • 4-Pin Type

  • Switch between NPN and PNP input using jumper bar
  • Solid state relay protection cover
  • Convenient solid state relay removal with removal lever
  • DIN rail mount and screw mount methods
    • closed-loop

    Input Selection (NPN, PNP) with Jumper Bar (4-Pin Type)

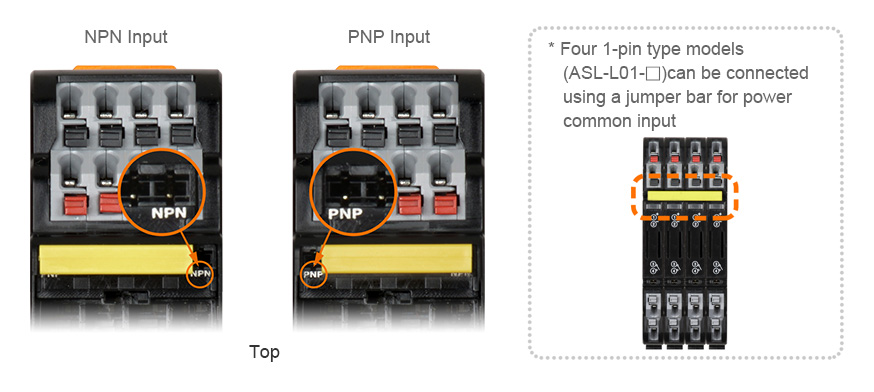

    Switch between NPN and PNP input options by changing jumper bar location. Provides flexibility for usage in various applications.

    closed-loop

    Switch Between Independent and Common Output

    Switch between independent and common output options by using jumper bars for flexible usage in various applications.

    closed-loop

    Easy wiring and stable connection with screwless push-in connection

    The screwless push-in type connection is highly resistant to vibration and will not loosen or disconnect from extended use. The simple wiring procedure also saves time during installation.

    closed-loop

    Simple and Convenient Solid State Relay Replacement (4-Pin Models)

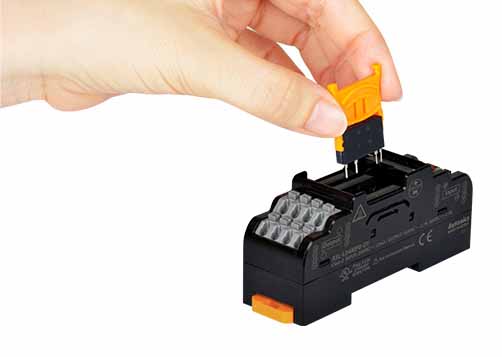

    Easily remove/replace solid state relays using with relay ejector clip

    The solid state relays on the 1-pin models (ASL-L01□-□□) are integrated. The SSRs cannot be removed or replaced.

    closed-loop

    Operation Status Indicators

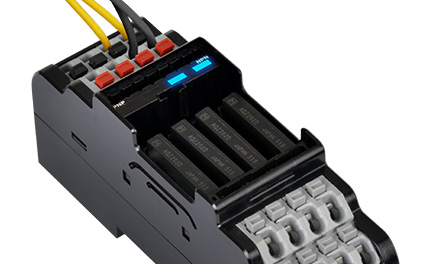

    Blue LED indicators are available for each relay, offering convenient status check.Operation Status Indicators

    closed-loop

    Flexible Mounting Methods

    The terminal blocks support both DIN rail mount and screw mount methods (depending on model), for application in diverse environments.

    closed-loop closed-loop

    Applications

    ASL series solid state relay terminal blocks used for stable load switching within SMT machinery.

    closed-loop

TITLE DOCUMENT TYPE SIZE
ASL Series - English Manual 1855 KB
ASL Series - Korean Manual 1794 KB
ASL Series - English Catalog 1925 KB
ASL Series - Korean Catalog 1925 KB
