Omron, G7TC Series

• Compact size: 182 (W) ✕ 85 (D) ✕ 68 (H) mm (8-point Output Block width is 102 mm).

• Connects to the PLC through the connecting cable (G79 Series) and connector, and requires only a snap-in operation.

• Surge suppressor circuit built-in.

• Immediate recognition of I/O signal status using LED operation indicators.

• G3TA I/O Solid-state relay can be mounted instead of G7T.

• Mounts easily on a DIN track.

• Approved by UL, CSA (except for G7TC-OC16-1).

Coil Ratings (Common to Input/Output per Relay)

Rated voltage (V)		Rated current (mA)		Coil resistance (Ω)	Must operate	Must release	Maximum voltage	Power consumption
Rated voltage (V)		50 Hz	60 Hz	Coil resistance (Ω)	of rated voltage			per Relay	per 16 Relays
AC	100/(110)	8.2/-	7/7.7	8,700	80% max.	30% min.	105%	0.7 VA	11 VA
AC	200/(220)	4.1/-	3.5/3.85	33,300	80% max.	30% min.	105%	0.7 VA	11 VA
DC	12	42		290	80% max.	10% min.	105%	0.5 W	8 W
	24	21		1,150
	100/110	5		20,000

Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of 15%/-20% for AC rated current and ±15% for coil resistance.
2. The operating characteristics are measured at a coil temperature of 23°C.
3. The value for maximum voltage is the maximum value within the allowable voltage fluctuation range for the relay coil’s operating power supply. Continuous operation at this voltage is not within product specifications.
4. Approx. 4 mA flows into each LED indicator. To calculate the power supply capacity, add the current value of each LED indicator.
5. When the G7TC is used with an AC rated voltage, three rated currents can be used. If a coil voltage of 110 or 220 VAC is used, 50 Hz cannot be used.

Contact Ratings (G7T I/O Relay)

Classification	For input		For output
Classification	Resistive load (cosφ=1)	Inductive load (cosφ=0.4 L/R=7 ms)	Resistive load (cosφ=1)	Inductive load (cosφ=0.4 L/R=7 ms)
Rated load	1 A at 24 VDC	0.5 A at 24 VDC	2 A at 220 VAC 5 A at 24 VDC	1 A at 220 VAC 2 A at 24 VDC
Rated carry current	1A		5A
Max. switching voltage	250 VAC, 125 VDC
Max. switching current	1A	0.5A	5A	2A
Error rate (reference value) *	100 μA at 1 V		10 mA at 5 V
Electrical endurance	10,000,000 operations (at 10 mA) 50,000 operations (at 1 A)	2,500,000 operations (at 10 mA) 20,000 operations (at 1 A)	1,000,000 operations (under rated load)
Mechanical endurance	50,000,000 operations

* The above values are for a switching frequency of 120 operations/min.

Characteristics

Model		G7TC-IA16 (Input, AC coil)	G7TC-ID16 (Input, DC coil)	G7TC-OC16(-1) (output, DC coil)	G7TC-OC08 (output, DC coil)
Contact form		SPST-NO × 16			SPST-NO × 8
Contact mechanism		Bifurcated crossbar contact		Single contact
Contact material		Au cladding + Ag		AgInSn
*Contact resistance 1**		50 mΩ max.
*Must Operate time 2**		15 ms max.
*Release time 2**		15 ms max.
Max. switching frequency	Mechanical limit	18,000 operations/h
Max. switching frequency	At rated load	1,800 operations/h
Insulation resistance		100 MΩ (at 500 VDC)
Dielectric strength	Between coil and contact	2,000 VAC, 50/60 Hz for 1 minute
	Between same polarity contacts	1,000 VAC, 50/60 Hz for 1 minute
	Between paired connectors *3	250 VAC, 50/60 Hz for 1 minute
Vibration resistance		10 to 55 to 10 Hz with 0.5-mm single amplitude (1.0-mm double amplitude)
Shock resistance		200 m/s²
Noise immunity		Noise level: 1.5 kV; pulse width: 100 ns to 1μs
Rated voltage between positive and negative terminal blocks		Rated voltage of controller's (PLC or other) input circuit		12 VDC ±5% 24 VDC ±5%
Rated current between positive and negative terminal blocks		Input circuit current of controller (PLC or other) × number of ON points		12 VDC: 46 mA × number of ON points 24 VDC: 25 mA × number of ON points
Cable length *4	To controller	5 m max. (reference value)
Cable length *4	To I/O devices	50 m max. (reference value, for 2-mm² CVV cable)		Dependent on load
Ambient operating temperature		0 to 55°C
Ambient operating humidity		35% to 85% (with no icing or condensation)
Tightening torque for external connections		0.78 to 1.18 Nm
Tensile strength		No damage when a tensile force of 49 N is applied in each direction. In the direction of the track, the tensile strength is 9.8 N min.
I/O terminal tightening torque		Tightening strength: 0.98 Nm; Tensile strength 49 N per minute
LED color		Red	Green
Case color		Transparent red	Transparent green	Transparent green
Coil surge absorber		Varistor	Diode (1 A, 1,000 V)
Weight		Approx. 640 g	Approx. 630 g	Approx. 670 g	Approx. 350 g

Note: The above values are initial values.
*1. Measurement: 1 A at 5 VDC.
*2. Ambient temperature: 23°C.
*3. This is between connector pin No. 10 and 20, and between connector pin No. 9 and 19.
*4. Connecting cables up to 5 m are available as standard products. For longer cables, enquire separately.

UL and CSA Standards

Standard G7TC I/O Relay Terminal, except for the G7TC-OC16-1 and the G7TC-OC08, have met UL and CSA standards (UL file no. E95399; CSA file no. LR35535).
Note that the following UL- and CSA-qualifying ratings differ from the performance characteristics of the individual models:

Model	Coil ratings	Contact ratings
G7TC-ID16, G7TC-IA16	10 mA/point, 24 VDC	250 VAC max.
G7TC-OC16	Coil drive current, 24 VDC	Inductive load: 10 A, 250 VAC Resistive load: 10 A, 30 VDC Rated horsepower: 1/2 HP, 240 VAC

Accessories (Order Separately)

Socket

P7TF-05

Contact resistance	10 mΩ max. (measured at 5 V DC, 1 A)
Dielectric strength	2,000 VAC for 1 minute
Insulation resistance	1,000 MΩ min. (at 500 V)
Vibration resistance	10 to 55 to 10 Hz, 0.5 mm single amplitude (1.0 mm double amplitude)
Shock resistance	1,000 m/s²
Ambient temperature	Operating: -40 to 70°C (with no icing or condensation)
Ambient humidity	5% to 85%
Weight	Approx. 28 g

(Unit: mm)

I/O Relay Terminal

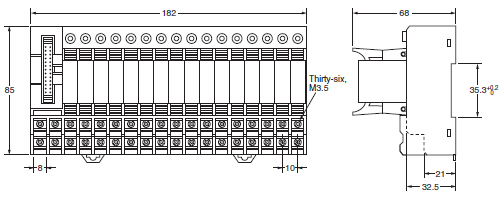

G7TC-ID16
G7TC-IA16

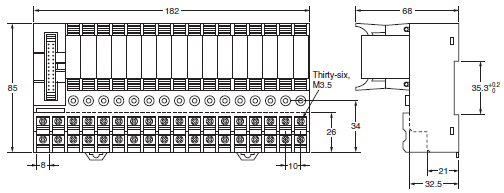

G7TC-OC16
G7TC-OC16-1

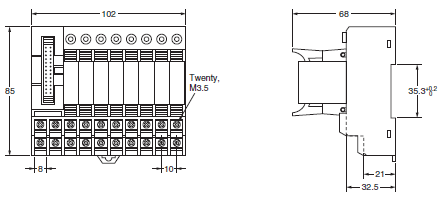

G7TC-OC08

Accessories (Order Separately)

Short Bar

G78-04
Use this piece for short-circuiting across terminals.Max. current flow: 20 A

Output Short-Circuit Module

G77-S
The output of the I/O Relay Terminal can be obtained without relays through the G77-S Output Short-Circuit Module.Note that the G77-S Output Short-Circuit Module is not available for inputs.

Socket

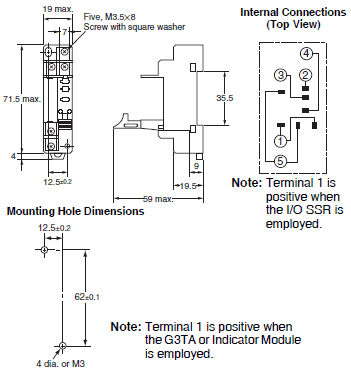

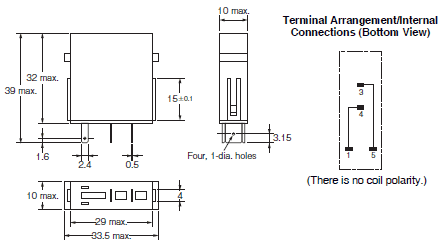

P7TF-05
The G7T (SPST-NO, SPST-NC, and SPDT types) and the G3TA I/O Relays can be mounted on the P7TF-05 Socket.The P7TF-05 can be used for applications involving sequences that require slim relays, or to enable use of SPDT relays with the I/O Relay Terminal. To use part of the I/O Relay Terminal with SPDT specifications, insert an Output Short-Circuit Module into the I/O Relay Terminal, and use the P7TF-05 Socket in combination with an SPDT Relay for the Module’s output.

Indicator Module (With Surge Suppressing Function)

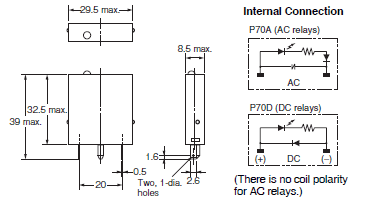

P70[]
Remove the transparent style strip of the P7TF-05 socket and mount this module and it will function as an operation indicator with the surge suppression.

TITLE	DOCUMENT TYPE	SIZE
G7TC	Catalog	2903 KB
XW2Z-R	Catalog	2435 KB
G70[]/G7TC Table of I/O Relay Terminal and connectable device combinations	Catalog	1144 KB
G7TC I/O Relay Terminal(ENG/JPN)	Instruction Manual	629 KB

Coil Ratings (Common to Input/Output per Relay)

Contact Ratings (G7T I/O Relay)

Characteristics

UL and CSA Standards

Accessories (Order Separately)

Socket

P7TF-05

I/O Relay Terminal

Accessories (Order Separately)

Short Bar

Output Short-Circuit Module

Socket

Indicator Module (With Surge Suppressing Function)
