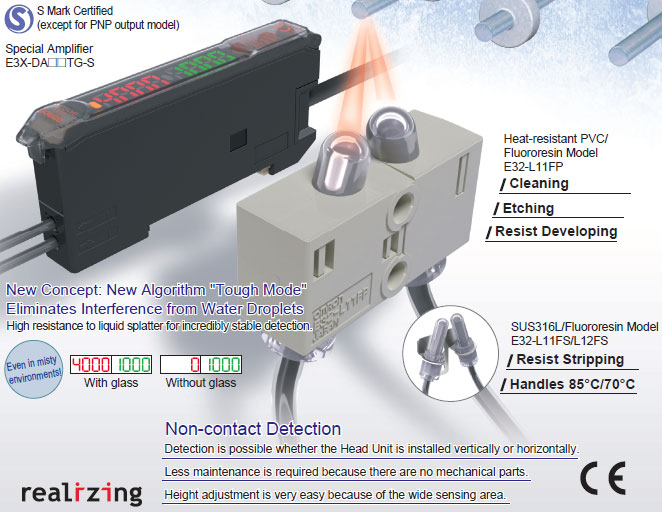

Model | E3X-DA11TG-S | E3X-DA41TG-S |
---|---|---|
Output | NPN open-collector output | PNP open-collector output |
Power supply voltage | 12 to 24 VDC ±10%, ripple (p-p) 10% max. | |
Power consumption | 960 mW max. (current consumption: 40 mA max. at power supply voltage of 24 VDC) | |
Control output |
Load power supply voltage: 26.4 VDC, load current: 50 mA max.; residual voltage: 1 V max. |
|
Response time |
Tough Mode (TG): Operate/reset in 16 ms each, Super Tough Mode (STG): Operate/reset in 64 ms each Standard Mode (STND): Operate/reset in 1 ms each, High-resolution Mode (HRES) Operate/reset in 4 ms each |
|
Timer function | ON-delay/OFF-delay timer, OFF-delay timer, ON-delay timer, one-shot timer |
TITLE | DOCUMENT TYPE | SIZE |
E32-L11FP/L11FS/L12FS, E3X-DA[][]TG-S | Catalog | 220 KB |
---|
