Omron, E3X-DA-S / MDA Series

Models available for a wide variety of applications at manufacturing sites

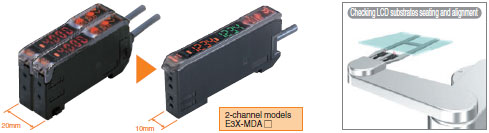

Industry Leading Two Amplifiers Loaded in a Small Body . . . . 2-channel models

Two amplifiers are loaded in a 10 mm-wide body.
Space usability can be approximately doubled. In addition, approximately 40% of the energy can be saved.
(compared to the value per channel of the former model)

High-speed and High-resolution Analog Output Supports Wide Variety of Applications . . . .Advanced Analog Output Models

Analog Control Output

The voltage in the range of 1 to 5 V is output according to the incident level (digital display). Wide variety of applications is possible including positioning control or difference detection with multiple levels.

High-speed and High Resolution

Detection modes can be switched in accordance with applications.
High-speed response of 80 μs (super-high-speed mode) supports the positioning controls that require high-speed control.

last update: October 01, 2015

Type		Light source	Re- sponse time	Control output/input			Functions
Type		Light source	Re- sponse time	ON/ OFF output	Input	Analog output	Power tuning	Timer	Inter- ference pre- vention	Differ- ential detec- tion	count- er	ATC
Single-function models		Red LED	1 ms	Only main	---	---	---	---	○	---	---	---
Standard models		Red LED	50 μs to 4 ms	Only main	---	---	○	○	○	---	---	---
Mark- de- tecting models	E3X-DA[]G-S	Green LED	50 μs to 4 ms	Only main	---	---	○	○	○	---	---	---
	3X-DA[]B-S	Blue LED
	E3X-DA[]H-S	Infrared LED
Ad- vanced models	Twin-output models	Red LED	50 μs to 4 ms	Only main	○ (1 line)	---	○	○	○	○	○	---
	External-input models		80 μs to 4 ms	Main + sub (2 lines)	---						---	---
	ATC function models		130 μs to 4 ms	Main + sub (2 lines)								○
	Analog output		80 μs to 4 ms	Only main		○ (1 line)				---		---
2-channel models		Red LED	130 μs to 4 ms	Main + main (2 inde- pendent lines)	---	---	○	○	○	---	---	---

Fiber Amplifier Units

Single-function, Standard, and Mark-detecting Amplifier Units

Type		Single- function models	Standard models	Mark-detecting models (multiple color light sources)
Type		Single- function models	Standard models	Green LED	Blue LED	Infrared LED
Model		E3X-DA[]SE-S	E3X-DA[]-S	E3X-DAG[]-S	E3X-DAB[]-S	E3X-DAH[]-S
Light source (wavelength)		Red LED (635 nm)		Green LED (525 nm)	Blue LED (470 nm)	Infrared LED (870nm)
Power supply voltage		12 to 24 VDC ± 10%, ripple (p-p) 10% max.
Power consumption		960 mW max. (current consumption: 40 mA max. at power supply voltage of 24 VDC)
Control output		Load power supply voltage: 26.4 VDC; NPN/PNP open collector; load current: 50 mA max.; residual voltage: 1 V max.
Remote control input		No-voltage input (contact/non- contact)	---
Protection circuits		Reverse polarity for power supply connection, output short-circuit
Re- sponse time	Super-high- speed mode	---	Operate: 48 μs, reset: 50 μs 1, 2
	High-speed mode	---	Operate/reset: 250 μs
	Standard mode	Operate or reset: 1 ms
	High-resolution mode	---	Operate or reset: 4 ms
Sensitivity setting		Teaching or manual method
Func- tions	Power tuning	---	Light emission power and reception gain, digital control method
	Timer function	---	Select from OFF-delay, ON-delay, or one-shot timer. 1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms increments, 200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1 s-increments)
	Automatic power control (APC)	High-speed control method for emission current
	Zero-reset	---	Negative values can be displayed. (Threshold value is shifted.)
	Initial reset	Settings can be returned to defaults as required.
	Mutual interference prevention	Possible for up to 10 Units *3
Display		Operation indicator (orange)	Operation indicator (orange), Power Tuning indicator (orange)
Digital display		incident level + threshold	Select from incident level + threshold or other 6 patterns
Display orientation		---	Switching between normal/reversed display is possible.
Ambient illumination (Receiver side)		Incandescent lamp: 10,000 lux max. Sunlight: 20,000 lux max.
Ambient temperature range		Operating: Groups of 1 to 2 Amplifiers: -25°C to 55°C Groups of 3 to 10 Amplifiers: -25°C to 50°C Groups of 11 to 16 Amplifiers: -25°C to 45°C Storage: -30°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating and storage: 35% to 85% (with no condensation)
Insulation resistance		20 MΩ min. (at 500 VDC)
Dielectric strength		1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance		Destruction: 10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions
Shock resistance		Destruction: 500 m/s², for 3 times each in X, Y and Z directions
Degree of protection		IEC 60529 IP50 (with Protective Cover attached)
Connection method		Pre-wired or amplifier unit connector
Weight (packed state)		Pre-wired model: Approx. 100 g, Amplifier unit connector model: Approx. 55 g
Mate- rials	Case	Polybutylene terephthalate (PBT)
Mate- rials	Cover	Polycarbonate (PC)
Accessories		Instruction manual

*1. Communications are disabled if the detection mode is selected during super-high-speed mode, and the
communications functions for mutual interference prevention and the Mobile Console will not function.
*2. PNP output is as follows: Operate: 53 μs, reset: 55 μs.
*3. Mutual interference prevention can be used for only up to 6 Units if power tuning is enabled.

Advanced and 2-channel Amplifier Units

Type		Advanced models
Type		External input models	Twin output models	ATC function models	Analog output models
Model		E3X-DA[]RM-S	E3X-DA[]TW-S	E3X-DA[]AT-S	E3X-DA[]AN-S
Light source (wavelength)		Red LED (635 nm)
Power supply voltage		12 to 24 VDC ± 10%, ripple (p-p) 10% max.
Power consumption		1,080 mW max. (current consumption: 45 mA max. at power supply voltage of 24 VDC)
Control output	ON/OFF output	Load power supply voltage: 26.4 VDC; NPN/PNP open collector; load current: 50 mA max.; residual voltage: 1 V max.
Control output	Analog output	---			Control output Voltage output: 1 to 5 VDC (Connection load 10 kΩ min.) Temperature characteristics 0.3%F.S./°C Response speed/repeat accuracy Super-high-speed mode: 80 μs/1.5%F.S. High-speed mode: 250 μs/ 1.5%F.S. Standard mode: 1 ms/1%F.S. High-resolution mode: 4 ms/0.75%F.S.
Remote control input		Load power supply voltage: 26.4 VDC; NPN/PNP open collector; load current: 50 mA max.; residual voltage: 1 V max.	---
Protection circuits		Reverse polarity for power supply connection, output short-circuit
Re- sponse time	Super-high- speed mode	Operate: 48 μs, reset: 50 μs 3, 4, *5	Operate or reset: 80 μs *3
	High-speed mode	Operate or reset: 250 μs
	Standard mode	Operate or reset: 1ms
	High- resolution mode	Operate or reset: 4ms
Sensitivity setting		Teaching or manual method
Func- tions	Power tuning	Light emission power and reception gain, digital control method
	Differential detection	Switchable between single edge and double edge detection mode Single edge: Can be set to 250 μs, 500 μs, 1 ms, 10 ms, or 100 ms. Double edge: Can be set to 500 μs, 1 ms, 2 ms, 20 ms, or 200 ms.			---
	Timer function	Select from OFF-delay, ON-delay, or one-shot timer.
	Timer function	1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms increments, 200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1 s-increments)
	Automatic power control (APC)	High-speed control method for emission current
	Zero-reset	Negative values can be displayed. (Threshold value is shifted.)
	Initial reset	Settings can be returned to defaults as required.
	Mutual interference prevention	Possible for up to 10 Units *7
	Counter	Switchable between up counter and down counter. Set count: 0 to 9,999,999	---
	I/O setting	External input setting (Select from teaching, power tuning, zero reset, light OFF, or counter reset.)	Output setting (Select from channel 2 output, area output, or self-diagnosis.)	Output setting (Select from channel 2 output, area output, self- diagnosis output, or ATC error output)	Analog output setting (offset voltage adjustable)
Display		Operation indicator (orange), Power Tuning indicator (orange)	Operation indicator for channel 1 (orange), Operation indicator for channel 2 (orange)		Operation indicator (orange), Power Tuning indicator (orange)
Digital display		Select from incident level + threshold or other 7 patterns	Select from incident level + threshold or other 6 patterns
Display orientation		Switching between normal/reversed display is possible.
Ambient illumination (Receiver side)		Incandescent lamp: 10,000 lux max. Sunlight: 20,000 lux max.
Ambient temperature range		Operating: Groups of 1 to 2 Amplifiers: -25 °C to 55 °C Groups of 3 to 10 Amplifiers: -25 °C to 50 °C Groups of 11 to 16 Amplifiers: -25 °C to 45 °C
Ambient temperature range		Storage: -30 °C to 70 °C (with no icing or condensation)
Ambient humidity range		Operating and storage: 35% to 85% (with no condensation)
Insulation resistance		20 MΩ min. (at 500 VDC)
Dielectric strength		1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance (Destruction)		10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions
Shock resistance (Destruction)		500 m/s², for 3 times each in X, Y and Z directions
Degree of protection		IEC 60529 IP50 (with Protective Cover attached)
Connection method		Pre-wired or amplifier unit connector
Weight (packed state)		Pre-wired model: Approx. 100 g, Amplifier unit connector model: Approx. 55 g
Mate- rials	Case	Polybutylene terephthalate (PBT)
Mate- rials	Cover	Polycarbonate (PC)
Accessories		Instruction manual

Type		*2-channel models 1**
Type		Standard models	Model for Sensor Communications Unit *1
Model		E3X-MDA[] ([]: 11/41/6/8)	E3X-MDA0
Light source (wavelength)		Red LED (635 nm)
Power supply voltage		12 to 24 VDC ± 10%, ripple (p-p) 10% max.
Power consumption		1,080 mW max. (current consumption: 45 mA max. at power supply voltage of 24 VDC)
Control output	ON/OFF output	Load power supply voltage: 26.4 VDC; NPN/PNP open collector; load current: 50 mA max.; residual voltage: 1 V max.	Supplied from the connector through the Sensor Communications Unit
Control output	Analog output	---
Remote control input		---
Protection circuits		Reverse polarity for power supply connection, output short-circuit
Response time	Super-high-speed mode	Operate or reset: 130 μs 3, 6	---
	High-speed mode	Operate or reset: 450 μs
	Standard mode	Operate or reset: 1ms
	High-resolution mode	Operate or reset: 4ms
Sensitivity setting		Teaching or manual method
Functions	Power tuning	Light emission power and reception gain, digital control method
	Differential detection	---
	Timer function	Select from OFF-delay, ON-delay, or one-shot timer.
	Timer function	1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms increments, 200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1 s-increments)
	Automatic power control (APC)	High-speed control method for emission current
	Zero-reset	Negative values can be displayed. (Threshold value is shifted.)
	Initial reset	Settings can be returned to defaults as required.
	Mutual interference prevention	Possible for up to 9 Units (18 channels) *8
	Counter	---
	I/O setting	Output setting (Select from channel 2 output, AND, OR, leading edge sync, falling edge sync, or differential output)
Display		Operation indicator for channel 1 (orange), Operation indicator for channel 2 (orange)
Digital display		Select from incident level for channel 1 + incident level for channel 2 or other 7 patterns
Display orientation		Switching between normal/reversed display is possible.
Ambient illumination (Receiver side)		Incandescent lamp: 10,000 lux max. Sunlight: 20,000 lux max.
Ambient temperature range		Operating: Groups of 1 to 2 Amplifiers: -25 °C to 55 °C Groups of 3 to 10 Amplifiers: -25 °C to 50 °C Groups of 11 to 16 Amplifiers: -25 °C to 45 °C *9
Ambient temperature range		Storage: -30 °C to 70 °C (with no icing or condensation)
Ambient humidity range		Operating and storage: 35% to 85% (with no condensation)
Insulation resistance		20 MΩ min. (at 500 VDC)
Dielectric strength		1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance (Destruction)		10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions	10 to 150 Hz with a 0.7-mm double amplitude for 80 min each in X, Y, and Z directions
Shock resistance (Destruction)		500 m/s², for 3 times each in X, Y and Z directions	200 m/s² for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP50 (with Protective Cover attached)
Connection method		Pre-wired or amplifier unit connector	Connector for Sensor Communications Unit
Weight (packed state)		Pre-wired model: Approx. 100 g, Amplifier unit connector model: Approx. 55 g	Approx. 55 g
Materials	Case	Polybutylene terephthalate (PBT)
Materials	Cover	Polycarbonate (PC)
Accessories		Instruction manual

*1.This model allows you to use an E3X-ECT EtherCAT Sensor Communications Unit or E3X-CRT CompoNet Sensor
Communications Unit.
*2.Input Specifications

	Contact input (relay or switch)	Non-contact input (transistor)
NPN	ON: Shorted to 0 V (sourcing current: 1 mA max.). OFF: Open or shorted to Vcc.	ON: 1.5 V max. (sourcing current: 1 mA max.) OFF: Vcc - 1.5 V to Vcc (leakage current: 0.1 mA max.)
PNP	ON: Shorted to Vcc (sinking current: 3 mA max.). OFF: Open or shorted to 0 V.	ON: Vcc - 1.5 V to Vcc (sinking current: 3 mA max.) OFF: 1.5 V max. (leakage current: 0.1 mA max.)

*3.Communications are disabled if the detection mode is selected during super-high-speed mode, and the
communications functions for mutual interference prevention and the Mobile Console will not function.
*4.PNP output is as follows: Operate: 53 μs, reset: 55 μs.
*5.When counter is enabled: 80 μs for operate and reset respectively.
*6.When differential output is selected for the output setting, the second channel output is 200 μs for operation and
reset respectively.
*7.Mutual interference prevention can be used for only up to 6 Units if power tuning is enabled.
*8.Mutual interference prevention can be used for up to 5 Units (10 channels) if power tuning is enabled.

*9.The following temperature ranges apply for operation when an E3X-ECT or E3X-CRT Sensor Communications Unit is
used with the E3X-MDA0: Groups of 1 or 2 Amplifier Units: 0 to 55°C, Groups of 3 to 10 Amplifier Units: 0 to 50°C,
Groups of 11 to 16 Amplifier Units: 0 to 45°C, Groups of 17 to 30 Amplifier Units (with the E3X-ECT): 0 to 40°C.

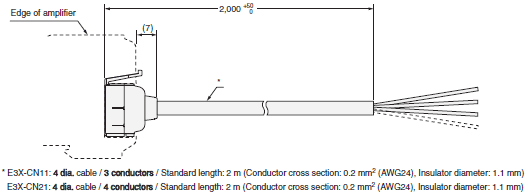

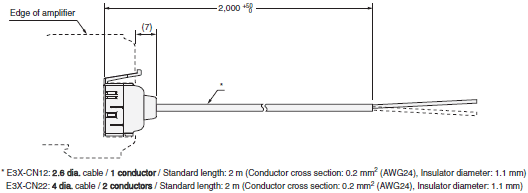

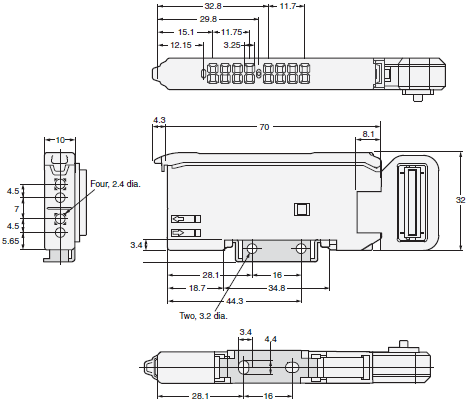

Amplifier Unit Connectors

Model		E3X-CN11/21/22	E3X-CN12
Rated current		2.5 A
Rated voltage		50 V
Contact resistance		20 mΩ max. (20 mVDC max., 100 mA max.) (The figure is for connection to the Fiber Amplifier Unit and the adjacent Connector. It does not include the conductor resistance of the cable.)
No. of insertions		Destruction: 50 times (The figure for the number of insertions is for connection to the Fiber Amplifier Unit and the adjacent Connector.)
Materials	Housing	Polybutylene terephthalate (PBT)
Materials	Contacts	Phosphor bronze/gold-plated nickel
Weight (packed state)		Approx. 55 g	Approx. 25 g

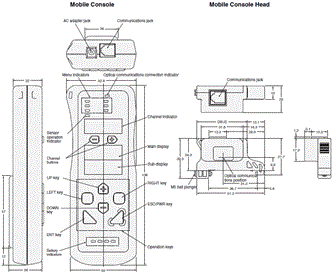

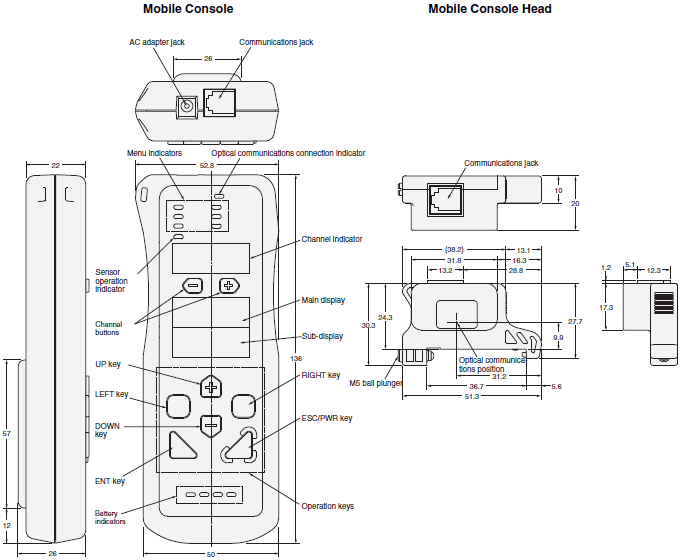

Mobile Console

Model	E3X-MC11-SV2
Applicable Fiber Amplifier Units	E3X-DA-S E3X-MDA E3C-LDA E2C-EDA
Power supply voltage	Charged with AC adapter
Connection method	Connected via adapter
Weight (packed state)	Approx. 580 g (Console only: 120 g)

Sensing Distance

(Unit: mm)

Single-function, Standard, Advanced, and 2-channel Amplifier Units

Note: The super-high-speed mode cannot be used with the E3X-MDA0.

Threaded Models

Sensing method	Sensing direction	Size	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Sensing direction	Size	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	Right-angle	M4	E32-T11N 2M	700	530	350	140	450	350	230	140
	Right-angle		E32-LT11N 2M	2,300	1,750	1,150	460	1,500	1,150	750	460
	Straight		E32-T11R 2M	700	530	350	140	450	350	230	140
			E32-LT11 2M	2,700	2,050	1,350	540	1,750	1,350	890	540
			E32-LT11R 2M	2,300	1,750	1,150	460	1,500	1,150	750	460
Reflective	Right-angle	M3	E32-C31N 2M	40	25	16	7	24	16	10	7
		M3	E32-C21N 2M	75	65	45	20	50	45	30	20
		M4	E32-D21N 2M	300	170	120	50	170	120	80	50
		M6	E32-C11N 2M	280	170	110	50	160	110	70	50
		M6	E32-LD11N 2M	300	170	120	50	170	120	80	50
	Straight	M3	E32-D21R 2M	50	30	20	8	30	22	14	8
			E32-C31 2M	120	75	50	22	75	50	30	22
			E32-C31M 1M	120	75	50	22	75	50	30	22
		M4	E32-D211R 2M	50	30	20	8	30	22	14	8
		M6	E32-D11R 2M	300	170	120	50	170	120	80	50
			E32-CC200 2M	500	300	200	90	300	210	140	90
			E32-LD11 2M	305	180	125	55	175	125	85	55
			E32-LD11R 2M	300	170	120	50	170	120	80	50

Cylindrical Models

Sensing method	Size	Sensing direction	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Size	Sensing direction	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	1 dia.	Top-view	E32-T223R 2M	160	130	75	30	110	85	55	30
Through- beam	1.5 dia.		E32-T22B 2M	240	200	110	45	150	110	70	45
Reflective	3 dia.		E32-T12R 2M	700	530	350	140	450	350	230	140
	3 dia.	Side-view	E32-T14LR 2M	270	210	130	50	170	130	85	50
	1.5 dia.	Top-view	E32-D22B 2M	50	30	20	8	30	22	14	8
	1.5 dia. + 0.5 dia.		E32-D43M 1M	10	6	4	2	6	4	2.5	2
	3 dia.		E32-D22R 2M	50	30	20	8	30	22	14	8
			E32-D221B 2M	110	70	45	20	70	50	30	20
			E32-D32L 2M	250	150	100	45	150	100	65	45
	3 dia. + 0.8 dia.		E32-D33 2M	25	16	10	4	16	10	6	4

Flat Models

Sensing method	Sensing direction	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Sensing direction	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through-beam	Top-view	E32-T15XR 2M	700	530	350	140	450	350	230	140
	Side-view	E32-T15YR 2M	270	210	130	50	170	130	85	50
	Flat-view	E32-T15ZR 2M	270	210	130	50	170	130	85	50
Reflective	Top-view	E32-D15XR 2M	300	170	120	50	170	120	80	50
	Side-view	E32-D15YR 2M	70	40	26	12	40	29	19	12
	Flat-view	E32-D15ZR 2M	70	40	26	12	40	29	19	12

Sleeve Models

Sensing method	Sensing direction	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Sensing direction	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	Side-view	E32-T24R 2M	60	50	25	10	35	27	18	10
	Side-view	E32-T24E 2M	160	130	75	30	100	70	45	30
	Top-view	E32-T21-S1 2M	180	150	85	34	120	85	57	34
		E32-T33 1M	53	44	25	10	35	28	18	10
		E32-TC200BR 2M	700	530	350	140	450	350	230	140
Reflective	Side-view	E32-D24R 2M	26	15	10	4	15	10	6	4
	Side-view	E32-D24-S2 2M	40	26	23	7	26	23	15	7
	Top-view	E32-D43M 1M	10	6	4	2	6	4	2.5	2
		E32-D331 2M	5	3	2	0.8	3	2	1.3	0.8
		E32-D33 2M	25	16	10	4	16	10	6	4
		E32-D32-S1 0.5M	21	13	9	3	14	9	6	3
		E32-D31-S1 0.5M	21	13	9	3	14	9	6	3
		E32-DC200F4R 2M	50	30	20	8	30	22	14	8
		E32-D22-S1 2M	50	30	20	8	30	22	14	8
		E32-D21-S3 2M	85	55	36	15	56	36	24	15
		E32-DC200BR 2M	300	170	120	50	170	120	80	50
		E32-D25-S3 2M	85	55	36	15	56	36	24	15

Small-spot, Reflective

Type	Spot diam- eter	Center dis- tance (mm)	Model	E3X-DA[]-S				E3X-MDA[]
Type	Spot diam- eter	Center dis- tance (mm)	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Variable spot	0.1 to 0.6 dia.	6 to 5	E32-C42 1M + E39-F3A	Spot diameter of 0.1 to 0.6 mm at 6 to 15 mm.				Spot diameter of 0.1 to 0.6 mm at 6 to 15 mm.
Variable spot	0.3 to 1.6 dia.	10 to 30	E32-C42 1M + E39-F17	Spot diameter of 0.3 to 1.6 mm at 10 to 30 mm.				Spot diameter of 0.3 to 1.6 mm at 10 to 30 mm.
Parallel light	4 dia.	0 to 20	E32-C31 2M + E39-F3C	Spot diameter of 4 mm max. at 0 to 20 mm.				Spot diameter of 4 mm max. at 0 to 20 mm.
Parallel light	4 dia.	0 to 20	E32-C31N 2M + E39-F3C	Spot diameter of 4 mm max. at 0 to 20 mm.				Spot diameter of 4 mm max. at 0 to 20 mm.
Integrated lens	0.1 dia.	5	E32-C42S 1M	Spot diameter of 0.1 mm at 5 mm.				Spot diameter of 0.1 mm at 5 mm.
Small- spot	0.1 dia.	7	E32-C41 1M + E39-F3A-5	Spot diameter of 0.1 mm at 7 mm.				Spot diameter of 0.1 mm at 7 mm.
	0.5 dia.		E32-C31 2M + E39-F3A-5	Spot diameter of 0.5 mm at 7 mm.				Spot diameter of 0.5 mm at 7 mm.
	0.5 dia.		E32-C31N 2M + E39-F3A-5	Spot diameter of 0.5 mm at 7 mm.				Spot diameter of 0.5 mm at 7 mm.
	0.2 dia.	17	E32-C41 1M + E39-F3B	Spot diameter of 0.2 mm at 17 mm.				Spot diameter of 0.2 mm at 17 mm.
	0.5 dia.		E32-C31 2M + E39-F3B	Spot diameter of 0.5 mm at 17 mm.				Spot diameter of 0.5 mm at 17 mm.
	0.5 dia.		E32-C31N 2M + E39-F3B	Spot diameter of 0.5 mm at 17 mm.				Spot diameter of 0.5 mm at 17 mm.
	3 dia.	50	E32-CC200 2M + E39-F18	Spot diameter of 3 mm at 50 mm.				Spot diameter of 3 mm at 50 mm.

High-power Beam

Type	Sensing direc- tion	Aper- ture angle	Model	E3X-DA[]-S				E3X-MDA[]
Type	Sensing direc- tion	Aper- ture angle	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam Integrated lens	Right- angle	15 °	E32-LT11N 2M	2,300	1,750	1,150	460	1,500	1,150	750	460
	Top-view	10 °	E32-T17L 10M	20,000 *1	20,000 *1	10,000	4,000	13,000	10,000	6,500	4,000
		15 °	E32-LT11 2M	2,700	2,050	1,350	540	1,750	1,350	890	540
		15 °	E32-LT11R 2M	2,300	1,750	1,150	460	1,500	1,150	750	460
	Side-view	30 °	E32-T14 2M	4,000 *2	3,400	2,250	900	2,900	2,200	1,450	900
Through- beam models with lenses	Right- angle	12 °	E32-T11N 2M + E39-F1	4,000 *2	3,700	2,400	970	3,100	2,400	1,600	970
	Right- angle	6 °	E32-T11N 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	1,700	4,000 *2	4,000 *2	2,900	1,700
	Top-view	12 °	E32-T11R 2M + E39-F1	4,000 *2	3,700	2,400	970	3,100	2,400	1,600	970
	Top-view	6 °	E32-T11R 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	1,700	4,000 *2	4,000 *2	2,900	1,700
	Side-view	60 °	E32-T11R 2M + E39-F2	520	400	250	100	330	260	170	100
	Top-view	12 °	E32-T11 2M + E39-F1	4,000 *2	3,600	2,300	930	3,000	2,300	1,500	930
	Top-view	6 °	E32-T11 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	2,200	4,000 *2	4,000 *2	3,700	2,200
	Side-view	60 °	E32-T11 2M + E39-F2	820	660	430	160	530	430	280	160
	Top-view	12 °	E32-T51R 2M + E39-F1	3,900	2,900	1,900	780	2,500	1,900	1,300	780
	Top-view	6 °	E32-T51R 2M + E39-F16	4,000 *2	4,000 *2	3,500	1,400	4,000 *2	3,500	2,300	1,400
	Side-view	60 °	E32-T51R 2M + E39-F2	500	380	250	100	320	250	160	100
	Top-view	12 °	E32-T81R-S 2M + E39-F1	4,000 *2	3,200	2,100	840	2,700	2,100	1,380	840
	Top-view	6 °	E32-T81R-S 2M + E39-F16	4,000 *2	4,000 *2	3,700	1,500	4,000 *2	3,700	2,500	1,500
	Side-view	60 °	E32-T81R-S 2M + E39-F2	540	410	270	100	350	270	170	100
	Top-view	12 °	E32-T61-S 2M + E39-F1	4,000	3,400	2,200	900	3,000	2,200	1,450	900
	Top-view	6 °	E32-T61-S 2M + E39-F16	4,000 *2	4,000 *2	3,700	1,500	4,000 *2	3,700	2,500	1,500
	Side-view	60 °	E32-T61-S 2M + E39-F2	600	450	300	120	390	300	200	120
	Top-view	12 °	E32-T51 2M + E39-F1-33	4,000 *2	4,000 *2	3,500	1,400	4,000 *2	3,500	2,300	1,400
	Top-view	6 °	E32-T51 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	2,500	4,000 *2	4,000 *2	4,000 *2	2,500
Reflective Integrated lens	Top-view	4 °	E32-D16 2M	40 to 1,000	40 to 700	40 to 450	40 to 240	40 to 600	40 to 490	40 to 300	40 to 240

Narrow View

Sensing method	Sensing direction	Aper- ture angle	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Sensing direction	Aper- ture angle	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	Side-view	1.5 °	E32-A03 2M	1,150	890	600	250	750	580	380	250
		1.5 °	E32-A03-1 2M	1,150	890	600	250	750	580	380	250
		3.4 °	E32-A04 2M	460	340	225	100	300	220	145	100
		4 °	E32-T24SR 2M	1,480	1,100	730	290	920	730	480	290
			E32-T24S 2M	1,750	1,300	870	350	1,100	870	580	350
			E32-T22S 2M	2,500	1,900	1,250	500	1,600	1,250	830	500

Detection without Background Interference

Sensing method	Sensing direction	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Sensing direction	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Limited- reflective	Flat-view	E32-L16-N 2M	0 to 15			0 to 12	0 to 15			0 to 12
	Flat-view	E32-L24S 2M	0 to 4				0 to 4
	Side-view	E32-L25L 2M	5.4 to 9 (center 7.2)				5.4 to 9 (center 7.2)

Transparent Object Detection (Retro-reflective)

Sensing method	Feature	Size	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Feature	Size	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Retro- reflective	Film detection	M3	E32-C31 2M + E39-F3R + E39-RP37	250	150	100	45	150	100	65	45
	Square	-	E32-R16 2M	150 to 1500				150 to 1500
	Threaded models	M6	E32-R21 2M	10 to 250				10 to 250
	Hex-shaped	M6	E32-LR11NP 2M + E39-RP1	630	600	500	275	600	500	330	275

Transparent Object Detection (Limited-reflective)

Sensing method	Feature	Sensing direc- tion	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Feature	Sensing direc- tion	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Limited- reflective	Small size	Flat-view	E32- L24S 2M	0 to 4				0 to 4
	Standard		E32-L16-N 2M	0 to 15			0 to 12	0 to 15			0 to 12
	Glass substrate alignment, 70 °C		E32-A08 2M	10 to 20			-	10 to 20			-
	Standard/ long- distance		E32-A12 2M	12 to 30			-	12 to 30			-
	Side view form	Side-view	E32-L25L 2M	5.4 to 9 (center 7.2)				5.4 to 9 (center 7.2)
	Glass substrate mapping, 70 °C	Top-view	E32-A09 2M	15 to 38			-	15 to 38			-

Chemical-resistant, Oil-resistant

Sensing method	Type	Sensing direc- tion	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Type	Sensing direc- tion	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	Oil- resistant	Right- angle	E32-T11NF 2M	4,000 *	4,000 *	2,800	1,100	3,600	2,800	1,800	1,100
	Chemical/ oil- resistant	Top-view	E32-T12F 2M	4,000 *	3,000	2,000	800	2,600	2,000	1,300	800
		Top-view	E32-T11F 2M	2,500	2,000	1,300	520	1,600	1,300	850	520
		Side-view	E32-T14F 2M	500	400	250	100	320	250	160	100
	Chemical/ oil- resistant at 150 °C	Top-view	E32-T51F 2M	1,800	1,400	900	350	1,190	920	600	350
Reflective	Chemical/ oil- resistant	Top-view	E32-D12F 2M	160	95	65	30	95	70	45	30
Reflective	Chemical- resistant cable	Top-view	E32-D11U 2M	300	170	120	50	170	125	80	50

* The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Bending-resistant

Sensing method	Size	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Size	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through-beam	1.5 dia.	E32-T22B 2M	240	200	110	45	150	110	70	45
	M3	E32-T21 2M	240	200	110	45	150	110	70	45
	M4	E32-T11 2M	900	680	450	180	580	450	300	180
	Square	E32-T25XB 2M	180	150	85	35	125	95	60	35
Reflective	1.5 dia.	E32-D22B 2M	50	30	20	8	30	22	14	8
	M3	E32-D21 2M	50	30	20	8	30	22	14	8
	3 dia.	E32-D221B 2M	110	70	45	20	70	50	30	20
	M4	E32-D21B 2M	110	70	45	20	70	50	30	20
	M6	E32-D11 2M	300	170	120	50	170	125	80	50
	Square	E32-D25XB 2M	85	50	30	15	50	35	23	15

Heat-resistant

Sensing method	Heat- resistant temperature	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Heat- resistant temperature	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	100 °C	E32-T51R 2M	560	425	280	110	360	280	180	110
	150 °C	E32-T51 2M	1,000	760	500	200	650	500	330	200
	200 °C	E32-T81R-S 2M	360	280	180	70	230	180	120	70
	350 °C	E32-T61-S 2M	600	450	300	120	390	300	200	120
Reflective	100 °C	E32-D51R 2M	240	135	95	40	130	95	60	40
	150 °C	E32-D51 2M	400	230	160	72	230	165	110	72
	200 °C	E32-D81R-S 2M	150	90	60	27	90	63	40	27
	300 °C	E32-A08H2 2M	10 to 20			-	10 to 20			-
	300 °C	E32-A09H2 2M	20 to 30			-	20 to 30			-
	350 °C	E32-D611-S 2M	150	90	60	27	90	63	40	27
	350 °C	E32-D61-S 2M	150	90	60	27	90	63	40	27
	400 °C	E32-D73-S 2M	100	60	40	18	60	40	25	18

Area Beam

Sensing method	Type	Sensing width	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Type	Sensing width	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	Area	11 mm	E32-T16PR 2M	1,100	840	560	220	730	560	370	220
		11 mm	E32-T16JR 2M	980	750	480	190	600	480	320	190
		30 mm	E32-T16WR 2M	1,700	1,300	850	340	1,100	860	570	340
Reflective	Array	11 mm	E32-D36P1 2M	250	150	100	45	150	100	65	45

Liquid-level Detection

Sensing method	Tube diameter	Feature	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Tube diameter	Feature	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Tube- mounting	3.2/6.4/ 9.5 dia.	Stable residual quantity detection	E32-A01 5M	Applicable tube: Transparent tube with a diameter of 3.2, 6.4, or 9.5 mm, Recommended wall thickness: 1 mm				Applicable tube: Transparent tube with a diameter of 3.2, 6.4, or 9.5 mm, Recommended wall thickness: 1 mm
	8 to 10 dia.	Mounting at multi levels	E32-L25T 2M	Applicable tube: Transparent tube with a diameter of 8 to 10 mm, Recommended wall thickness: 1 mm				Applicable tube: Transparent tube with a diameter of 8 to 10 mm, Recommended wall thickness: 1 mm
	No re- strictions	Large tubes	E32-D36T 2M	Applicable tube: Transparent tube (no restriction on diameter)				Applicable tube: Transparent tube (no restriction on diameter)
Liquid contact (heat- resistant up to 200 °C)	-	-	E32-D82F1 4M	Liquid-contact Type				Liquid-contact Type

Vacuum-resistant

Sensing method	Heat- resistant temperature	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Heat- resistant temperature	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	120 °C	E32-T51V 1M	260	200	130	50	170	130	85	50
	120 °C	E32-T51V 1M + E39-F1V	1,350	1,000	680	260	850	650	430	260
	200 °C	E32-T84SV 1M	630	480	320	130	410	310	200	130

FPD, Semiconductors, and Solar Cells

Sensing method	Appli- cation	Oper- ating temper- ature	Model	E3X-DA[]-S				E3X-MDA[]
Sensing method	Appli- cation	Oper- ating temper- ature	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Limited- reflective	Glass presence detection	70 °C	E32-L16-N 2M	0 to 15			0 to 12	0 to 15			0 to 12
	Glass substrate alignment	70 °C	E32-A08 2M	10 to 20			-	10 to 20			-
		300 °C	E32-A08H2 2M	10 to 20			-	10 to 20			-
		70 °C	E32-A12 2M	12 to 30			-	12 to 30			-
	Glass substrate mapping	70 °C	E32-A09 2M	15 to 38			-	15 to 38			-
	Glass substrate mapping	300 °C	E32-A09H2 2M	20 to 30			-	20 to 30			-
Through- beam	Wafer mapping	70 °C	E32-A03 2M	1,150	890	600	250	750	580	380	250
			E32-A03-1 2M	1,150	890	600	250	750	580	380	250
			E32-A04 2M	460	340	225	100	300	220	145	100
			E32-T24SR 2M	1,480	1,100	730	290	920	730	480	290
			E32-T24S 2M	1,750	1,300	870	350	1,100	870	580	350

Mark-detecting Amplifier Units (Different Colors of Light Sources)

Threaded Models

Sensing method	Sensing direction	Size	Model	E3X-DAG[]-S/DAB[]-S				E3X-DAH[]-S
Sensing method	Sensing direction	Size	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	Right-angle	M4	E32-T11N 2M	65	50	35	30	280	190	130	55
Through- beam	Straight	M4	E32-T11R 2M	65	50	35	30	280	190	130	55
Reflective	Straight	M3	E32-C31 2M	7.5	6	4	3.5	50	37	25	8.5
		M6	E32-D11R 2M	17	14	10	8	120	90	60	21
		M6	E32-CC200 2M	32	25	16	16	200	150	100	35

Cylindrical Models

Sensing method	Size	Sensing direction	Model	E3X-DAG[]-S/DAB[]-S				E3X-DAH[]-S
Sensing method	Size	Sensing direction	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	3 dia.	Top-view	E32-T12R 2M	65	50	35	30	280	190	130	55
Through- beam	3 dia.	Side-view	E32-T14LR 2M	25	20	22	12	100	75	80	21
Reflective	3 dia.	Top-view	E32-D32L 2M	15	12	8	7.5	100	75	50	17

Flat Models

Sensing method	Sensing direction	Model	E3X-DAG[]-S/DAB[]-S				E3X-DAH[]-S
Sensing method	Sensing direction	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through-beam	Top-view	E32-T15XR 2M	65	50	35	30	280	190	130	55
	Side-view	E32-T15YR 2M	25	20	22	12	100	75	80	21
	Flat-view	E32-T15ZR 2M	25	20	22	12	100	75	80	21
Reflective	Top-view	E32-D15XR 2M	17	14	10	8	120	90	60	21
	Side-view	E32-D15YR 2M	4.2	3.3	2.2	2.1	28	20	13	5
	Flat-view	E32-D15ZR 2M	4.2	3.3	2.2	2.1	28	20	13	5

Sleeve Models

Sensing method	Sensing direction	Model	E3X-DAG[]-S/DAB[]-S				E3X-DAH[]-S
Sensing method	Sensing direction	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through-beam	Top-view	E32-TC200BR 2M	65	50	35	30	280	190	130	55
Reflective	Top-view	E32-DC200BR 2M	17	14	10	8	120	90	60	21

High-power Beam

Type	Sensing direction	Aper- ture angle	Model	E3X-DAG[]-S/DAB[]-S				E3X-DAH[]-S
Type	Sensing direction	Aper- ture angle	Model	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through-beam Integrated lens	Side-view	30 °	E32-T14 2M	320	260	220	160	1800	1200	820	360

last update: October 01, 2015

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Fiber Amplifier Units

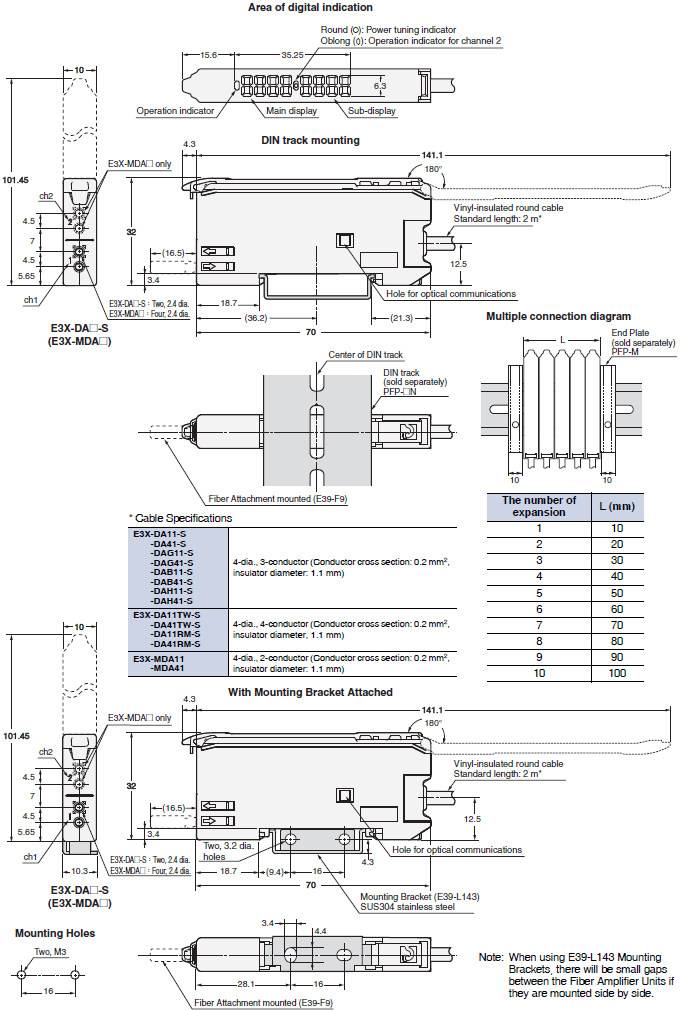

Amplifier Units with Cables
E3X-DA11-S, E3X-DA41-S
E3X-DAG11-S, E3X-DAG41-S
E3X-DAB11-S, E3X-DAB41-S
E3X-DAH11-S, E3X-DAH41-S
E3X-DA11RM-S, E3X-DA41RM-S
E3X-DA11TW-S, E3X-DA41TW-S
E3X-DA11SE-S, E3X-DA41SE-S
E3X-DA11AT-S, E3X-DA41AT-S
E3X-DA11AN-S, E3X-DA41AN-S
E3X-MDA11, E3X-MDA41

Please click image to enlarge (open in a new window).

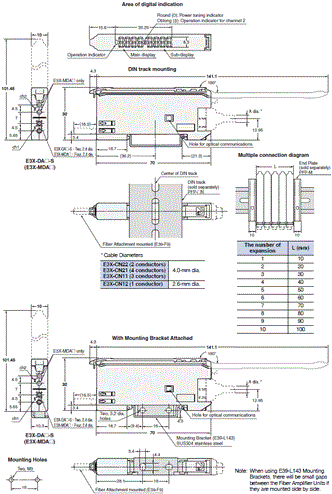

Amplifier Units with Wire-saving Connectors
E3X-DA6-S, E3X-DA8-S,
E3X-DAG6-S, E3X-DAG8-S,
E3X-DAB6-S, E3X-DAB8-S,
E3X-DAH6-S, E3X-DAH8-S,
E3X-DA6RM-S, E3X-DA8RM-S,
E3X-DA6TW-S, E3X-DA8TW-S,
E3X-DA6SE-S, E3X-DA8SE-S,
E3X-DA6AT-S, E3X-DA8AT-S,
E3X-MDA6, E3X-MDA8

Please click image to enlarge (open in a new window).

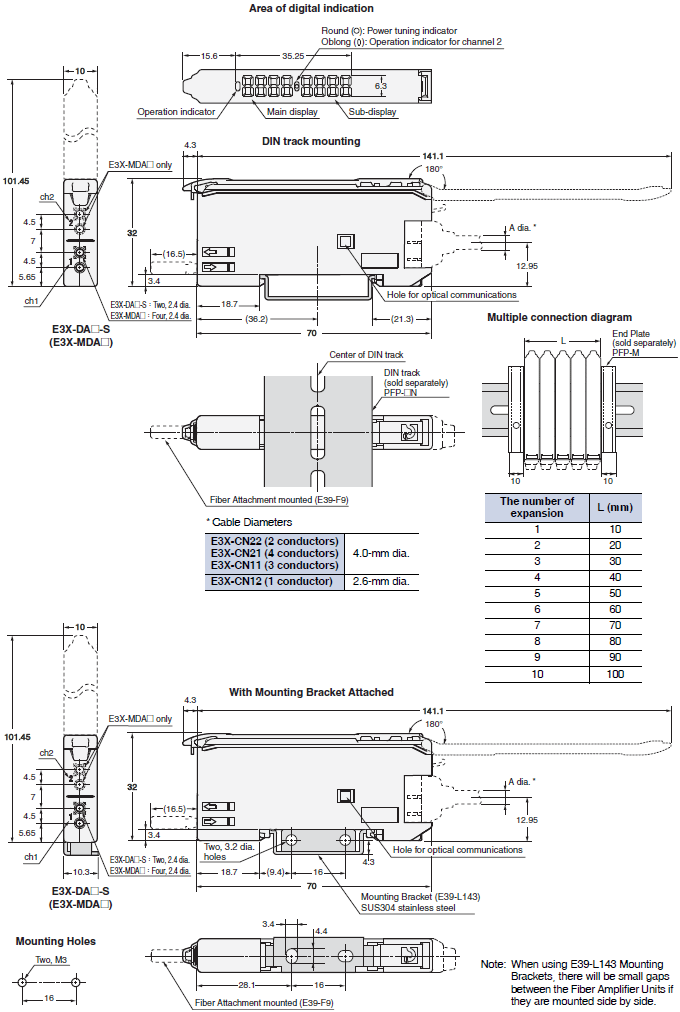

Amplifier Unit with Connector for Sensor Communications Unit
E3X-MDA0

Amplifier Unit Connectors

Master Connectors
E3X-CN11
E3X-CN21

Slave Connectors
E3X-CN12
E3X-CN22

Mobile Console

E3X-MC11-SV2

Please click image to enlarge (open in a new window).

TITLE	DOCUMENT TYPE	SIZE
E3X-DA-S/MDA Data Sheet	Catalog	1588 KB
E3X-DA-S/MDA Operating Procedures	Catalog	1069 KB
E3X-DA-S Series Digital Fiber Sensor Instruction Sheet (ENG/CHI)	Manual	3178 KB
E3X-DA-S Series Digital Fiber Sensor Instruction Sheet (ENG/JPN/KOR)	Manual	13706 KB
E3X-DA[]AN-S (Analog Output models) Digital Fiber Sensor Instruction Sheet (ENG/JPN/KOR)	Manual	1471 KB
E3X-DA[]AT-S Digital Fiber Sensor Instruction Sheet (ENG/JPN/KOR)	Manual	977 KB
E3X-DA[]AT-S Digital Fiber Amplifier Unit Instruction Sheet (ENG/CHI)	Manual	17412 KB
E3X-DA[]SE-S Digital Fiber Sensor Instruction Sheet (ENG/JPN/KOR)	Manual	624 KB
E3X-DA[]SE-S Digital Fiber Amplifier Unit Instruction Sheet (ENG/CHI)	Manual	7963 KB
E3X-DA[][]TW-S/DA[][]RM-S Digital Fiber Sensor Instruction Sheet (ENG/JPN/KOR)	Manual	8092 KB
E3X-DA[][]TW-S/DA[][]RM-S Digital Fiber Sensor Instruction Sheet (ENG/CHI)	Manual	5712 KB
E3X-MC11-S Mobile Console Instruction Sheet (ENG/JPN)	Manual	5395 KB
E3X-MDA Digital Fiber Sensor Instruction Sheet (ENG/JPN)	Manual	2872 KB
E3X-MDA Digital Fiber Sensor Instruction Sheet (ENG/JPN/KOR)	Manual	8440 KB
E3X-MDA Series Digital Fiber Sensor Instruction Sheet (ENG/CHI)	Manual	9386 KB
