3 Phase Separate/ Built-in Heatsink SSRs
SR(H)2/3 Series
Brand:
The SRH2/3 series three-phase solid state relays are integrated heatsink types, which are removable. The solid state relays can control 2-phase or 3-phase loads and feature two mounting hole types for compatibility with various types of heatsinks. The series also features alarm output for safe operation, and are also available in 24 VAC low voltage models. Select models feature high dielectric strength of up to 4000 VAC and integrated heatsink models can be mounted on to both DIN rails and panels.

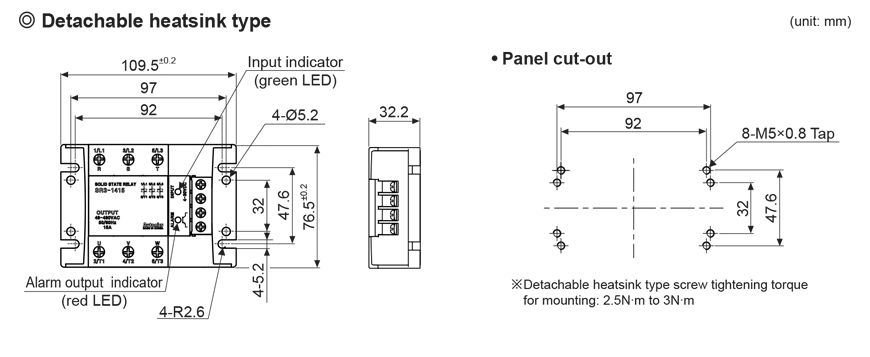

• Two mounting hole types and sizes
• Alarm function (overheating)
• Alarm output indicator (red LED), disconnect standard output, alarm output

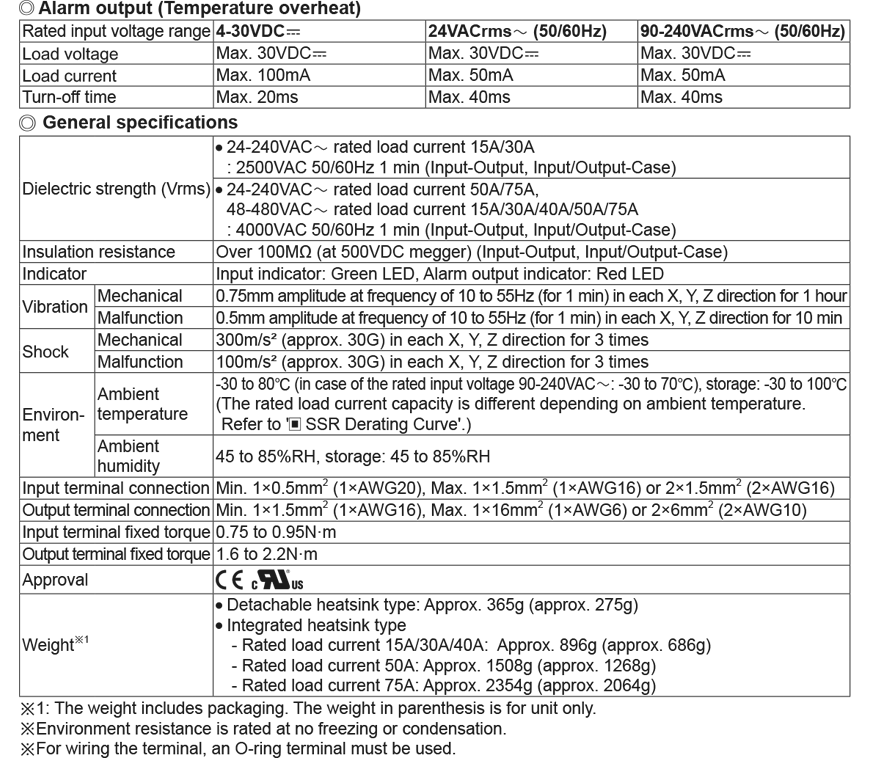

• High dielectric strength: 4000 VAC (select models)

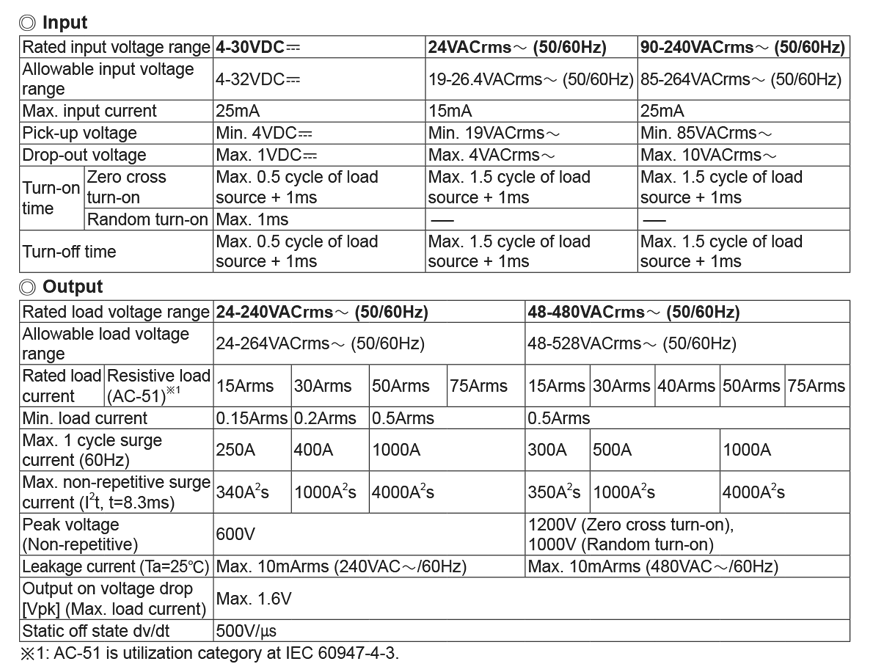

• Rated input voltage: 4-30 VDC, 24 VAC, 90-240 VAC
• Rated load voltage: 24-240 VAC, 48-480 VAC
• Rated load current: 15 A, 30 A, 40 A, 50 A, 75 A
• High heat dissipation efficiency with ceramic PCB and integrated heatsink
• Zero cross turn-on and random turn-on models available
• Input indicator (green LED)


TITLE DOCUMENT TYPE SIZE
SR(H)2/3 Series Catalog 694 KB
SSR / Power Controllers (Product Overview) Catalog 537 KB
SR(H)2/3 Series Manual 596 KB
