Omron, G3NE Series

• Wide load voltage range: 75 to 264 VAC. Both 100-V and 200-V loads can be handled with the same model.

• Dedicated, compact aluminum PCB and power elements used.

• Built-in varistor effectively absorbs external surges.

• Quick-connect #110 input terminals and #250 output connections. (#187 input terminals and #250 output connections are available.)

• “-US” models certified by UL, CSA, and IEC/EN (TÜV).

Ratings (at an Ambient Temperature of 25°C)

Input

Rated voltage	Operating voltage	Voltage level		Input impedance
Rated voltage	Operating voltage	Must operate	Must release	With zero cross function	Without zero cross function
5 VDC	4 to 6 VDC	4 VDC max.	1 VDC min.	250 Ω±20%	300 Ω±20%
12 VDC	9.6 to 14.4 VDC	9.6 VDC max.		600 Ω±20%	800 Ω±20%
24 VDC	19.2 to 28.8 VDC	19.2 VDC max.		1.6 kΩ±20%

Note: Each model has 5-VDC, 12-VDC, and 24-VDC input versions.

Output

			Load current (See note 1.)
Model	Applicable load
	Rated load voltage	Load voltage range	Load current (See note 1.)		Inrush current
			With heat sink	Without heat sink
G3NE-205T(L)(-2)-US	100 to 240 VAC	75 to 264 VAC	0.1 to 5 A at 40 ° C	0.1 to 5 A at 40 ° C	60 A (60 Hz, 1 cycle)
G3NE-210T(L)(-2)-US			0.1 to 10 A at 40 ° C (See note 2.)	0.1 to 5 A at 40 ° C	150 A (60 Hz, 1 cycle)
G3NE-210T(L)(-2)-US			0.1 to 10 A at 40 ° C (See note 2.)	0.1 to 5 A at 40 ° C	150 A (60 Hz, 1 cycle)
G3NE-220T(L)(-2)-US			0.1 to 20 A at 40 ° C (See note 2.)	0.1 to 5 A at 40 ° C	220 A (60 Hz, 1 cycle)
G3NE-220T(L)(-2)-US			0.1 to 20 A at 40 ° C (See note 2.)	0.1 to 5 A at 40 ° C	220 A (60 Hz, 1 cycle)

Note: 1. The load current varies depending on the ambient temperature. Refer to Load Current vs. Ambient temperature under engineering data for details on data sheet.
2. These values apply when using a dedicated heat sink or a radiation plate of specified size.

Characteristics

Leakage current	2 mA max. (at 100 VAC) 5 mA max. (at 200 VAC)
Item	G3NE-2[][]T(-2)-US	G3NE-2[][]TL(-2)-US
Operate time	1/2 of load power source cycle + 1 ms max.	1 ms max.
Release time	1/2 of load power source cycle + 1 ms max.
Output ON voltage drop	1.6 V (RMS) max.
Leakage current	2 mA max. (at 100 VAC) 5 mA max. (at 200 VAC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,000 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Shock resistance	Destruction: 1,000 m/s²
Ambient temperature	Operating: -30°C to 80°C (with no icing or condensation) Storage: -30°C to 100°C (with no icing or condensation)
Ambient temperature
Ambient humidity	Operating: 45% to 85%
Certified standards	UL508 File No.E64562/CSA C22.2 (No.0, No.14) File No. LR35535 TÜV R9051064 (VDE0435) (EN60950)
Certified standards
EMC	Emission: EN55011 Group 1 Class B Immunity: EN61000-6-2
EMC	Emission: EN55011 Group 1 Class B Immunity: EN61000-6-2
Weight	Approx. 37 g

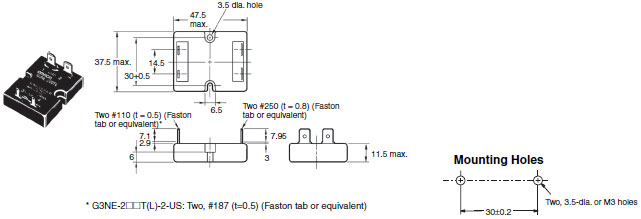

G3NE-205T(L)/210T(L)/220T(L)(-2)-US

Heat Sink

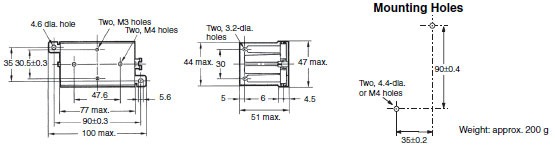

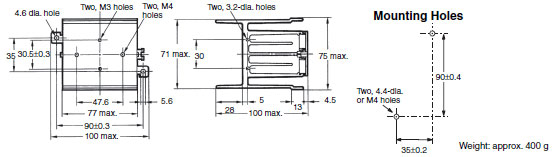

Y92B-N50

Y92B-N100

TITLE	DOCUMENT TYPE	SIZE
G3NE	Catalog	520 KB
Solid State Relays	Manual	2370 KB
Relay Defects Causes & Solutions (SSR Edition)	Technical Guide	6806 KB
