Autonics, SR2/3 Series
3 Phase Separate Heatsink SSRs

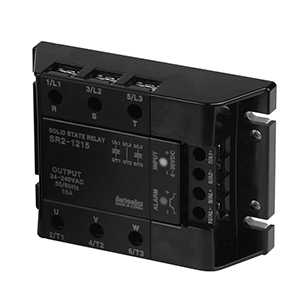

SR2/3 Series
Brand:
The SR2/3 series three-phase solid state relays are detachable heatsink types, which can be used with various heatsinks. The solid state relays can control 2-phase or 3-phase loads and feature two mounting hole types for compatibility with various types of heatsinks. The series also features alarm output for safe operation, and are also available in 24 VAC low voltage models. Select models feature high dielectric strength of up to 4000 VAC.

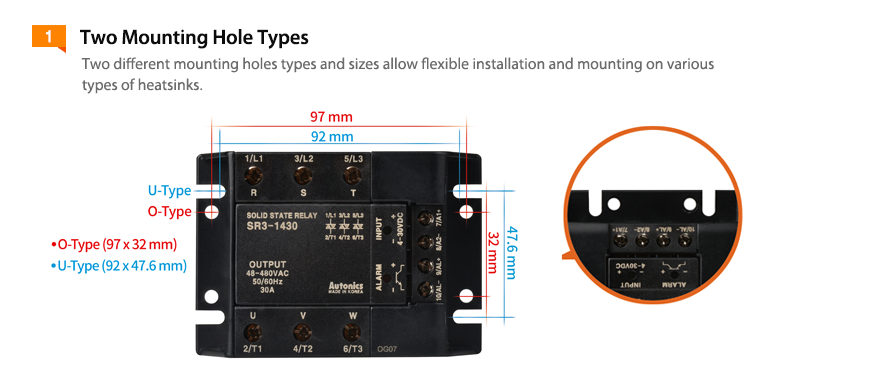

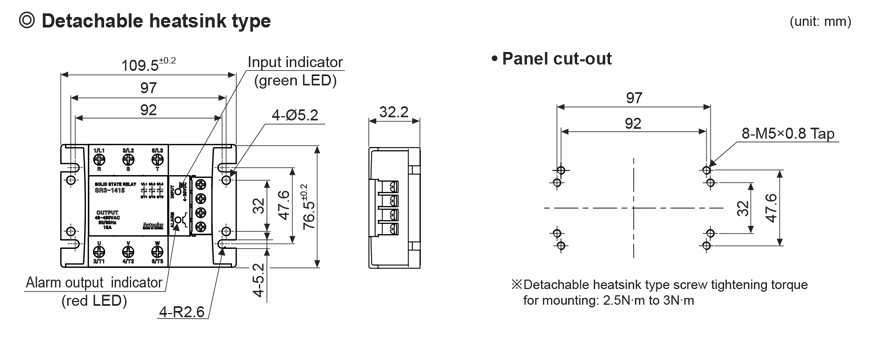

• Two mounting hole types and sizes

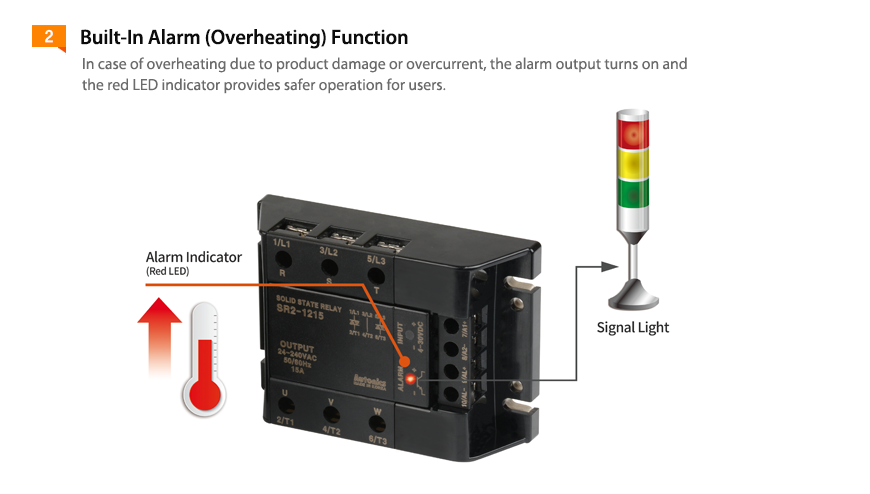

• Alarm function (overheating)

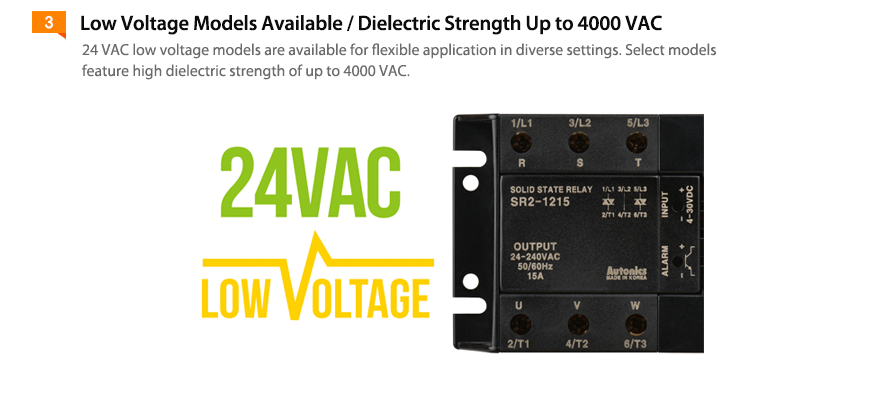

• High dielectric strength: 4000 VAC (select models)

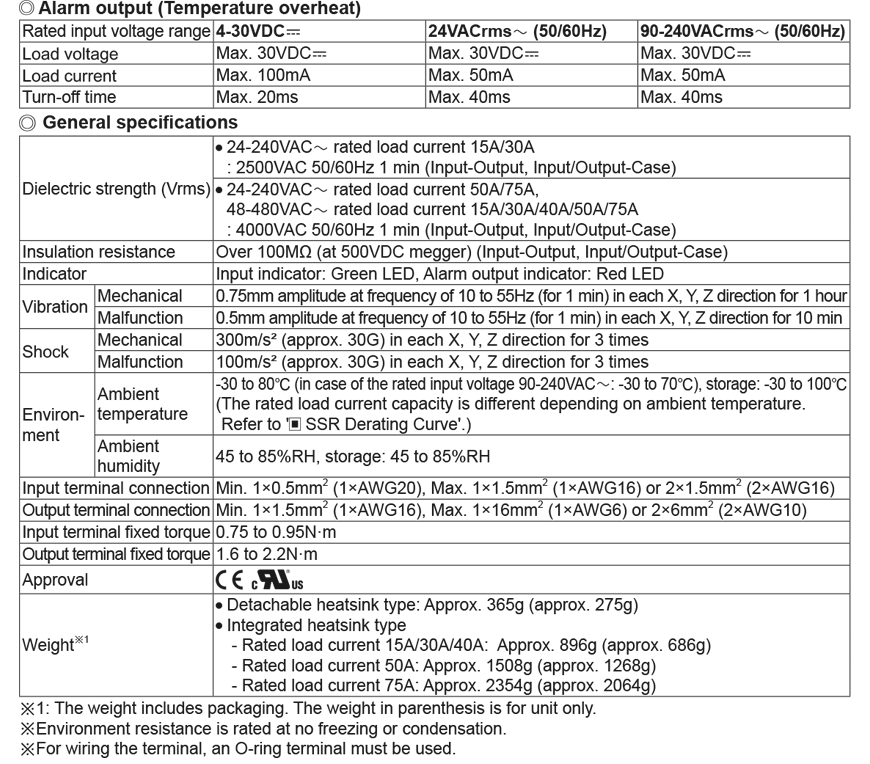

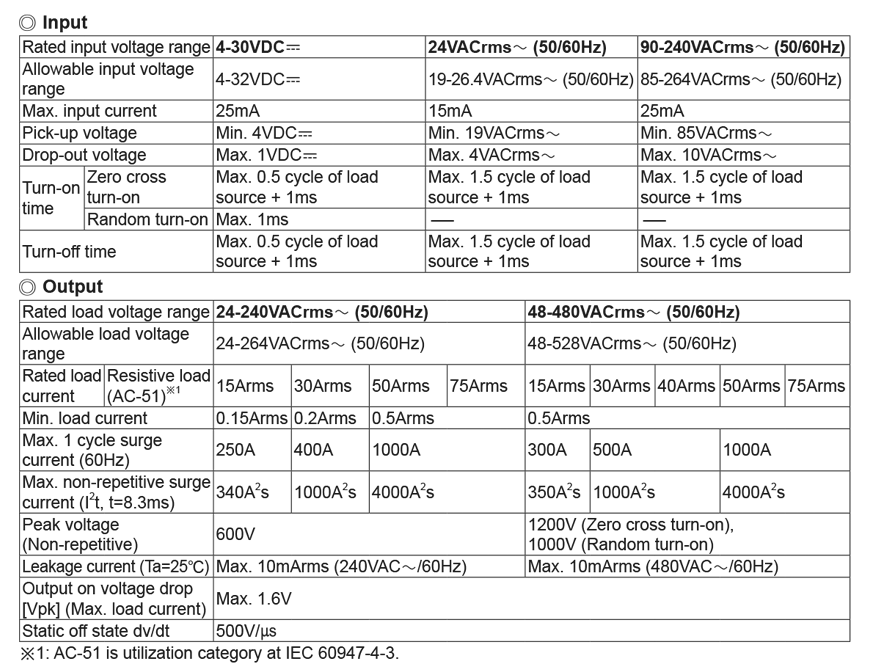

• Rated input voltage: 4-30 VDC, 24 VAC, 90-240 VAC
• Rated load voltage: 24-240 VAC, 48-480 VAC
• Rated load current: 15 A, 30 A, 40 A, 50 A, 75 A
• High heat dissipation efficiency with ceramic PCB and integrated heatsink

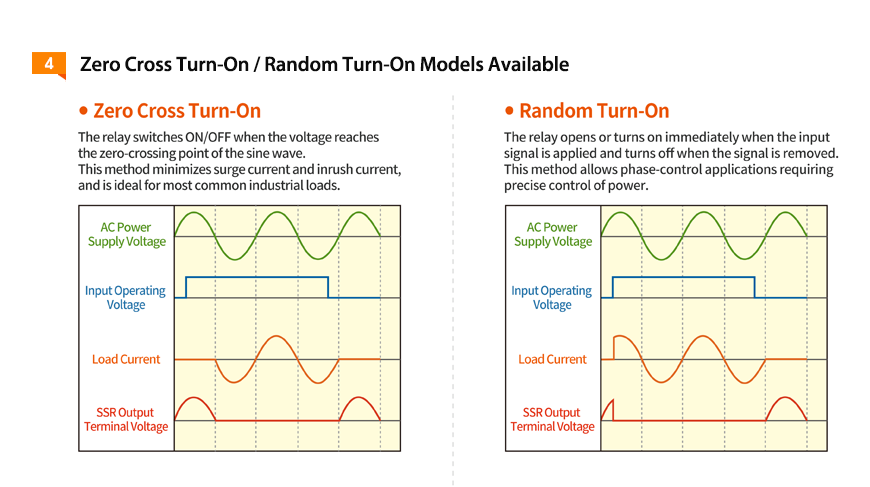

• Zero cross turn-on and random turn-on models available

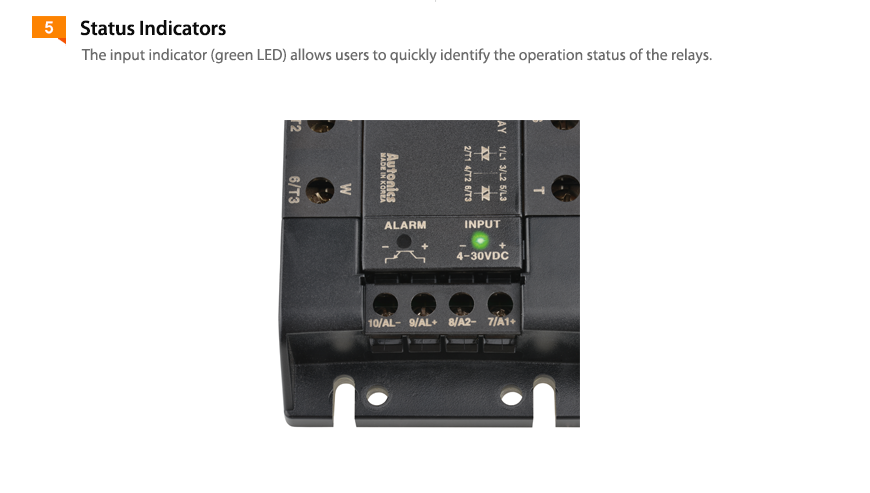

• Input indicator (green LED)
