Autonics, SRHL1 Series
Built-in Heatsink SSRs
SRHL1 Series
Brand:
The SRHL1 series single phase solid state relays feature integrated heatsinks for excellent heat dissipation efficiency. The left/right terminal layout provides more flexible installation options. The SRHL1 series is available in zero cross turn-on and random turn-on models, and also feature alarm functions for safer operation. The units support both DIN rail mount and panel mount methods.

  • Rated input voltage : 10-30 VDC, 90-240 VAC
  • Rated load voltage : 24-240 VAC, 48-480 VAC
  • Rated load current : 10 A, 15 A, 20 A, 25 A, 40 A
  • Zero cross turn-on, random turn-on models available
  • Input indicator (green LED)
  • Alarm function (overheating)
  • Rated load voltage 10 A, 15 A, 20 A, 25 A : alarm indicator (red LED)
  • Rated load voltage 40 A : alarm output, alarm output indicator (red LED)
  • DIN rail mount or panel mount installation
  • closed-loop

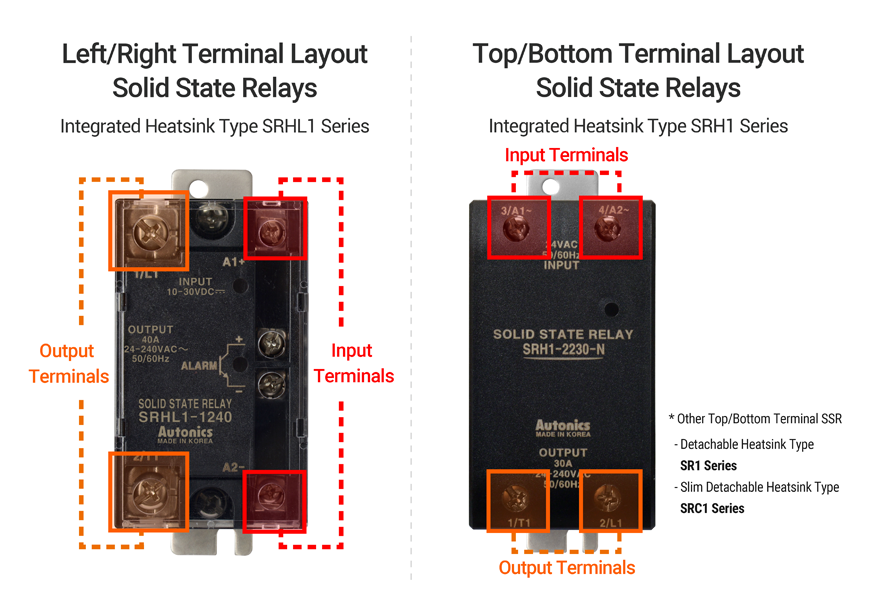

    Left/Right Terminal Layout

    The SRHL1 series features a left/right terminal layout offering more flexible installation options. Single phase solid state relays from Autonics is also available in top/bottom terminal layout for application in diverse user environments.

    closed-loop

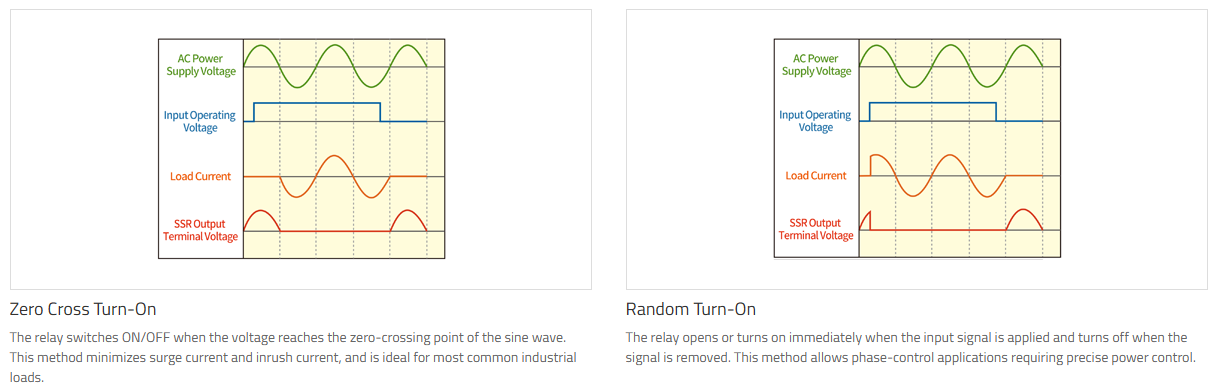

    Zero Cross Turn-On/Random Turn-On Models Available

    closed-loop

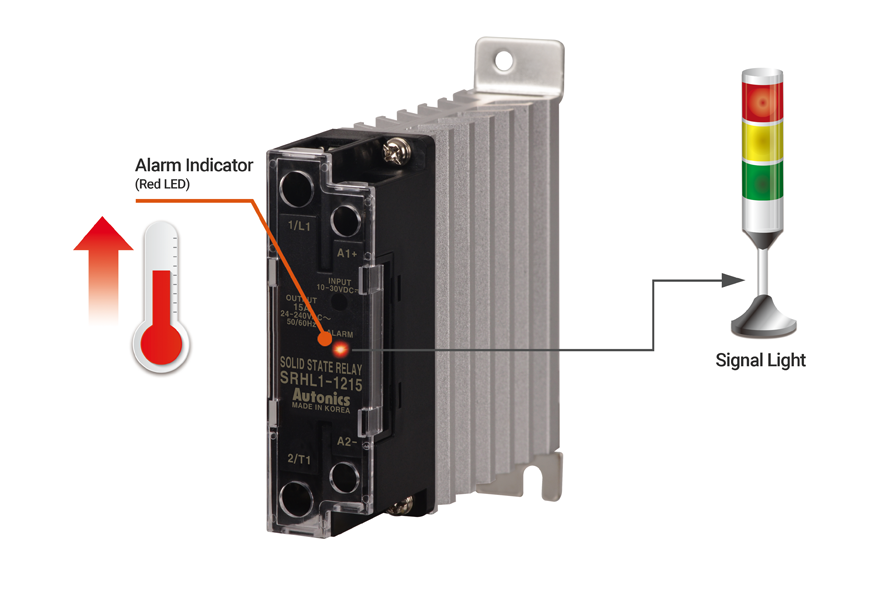

    Alarm Function (Overheating)

    The alarm output and indicator (red LED) turns on in case of overheating due to product damage or overcurrent, providing safer operation for users.

    closed-loop

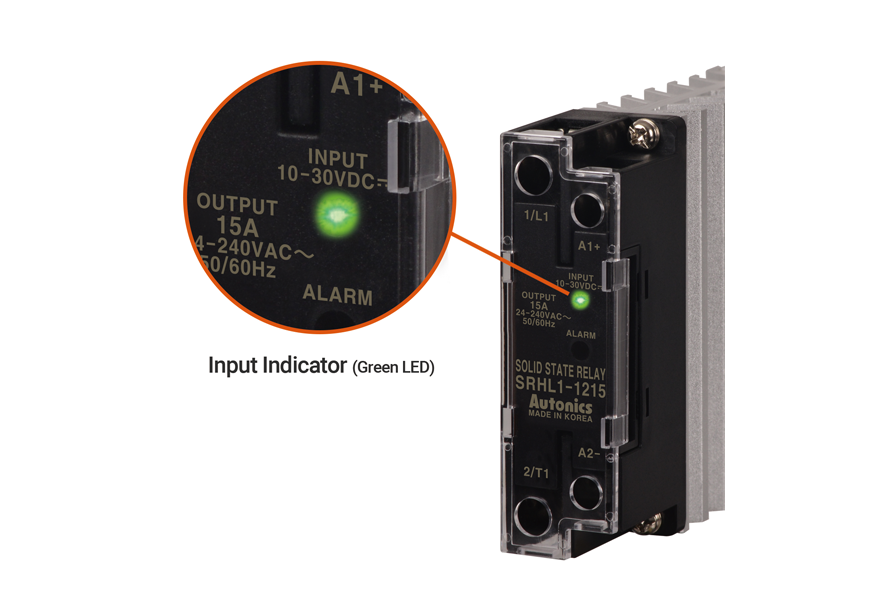

    Check Operation Status

    Users can easily check the operation status of the solid state relays through input indicators (green LED)

    closed-loop

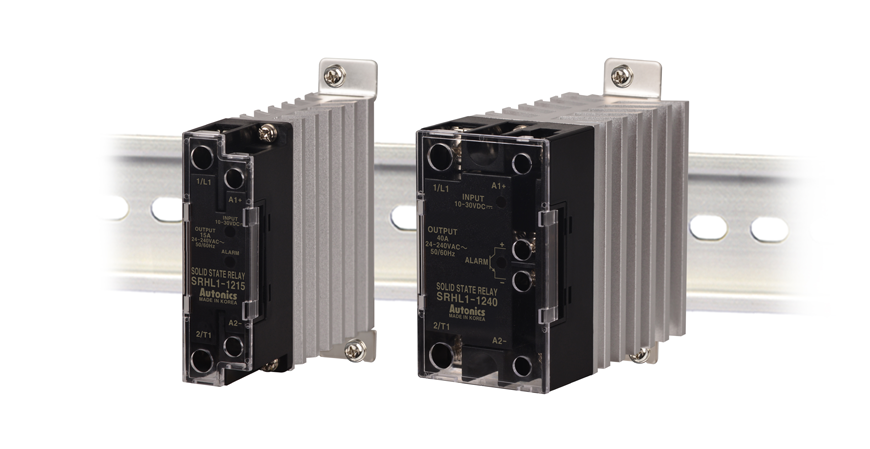

    Various Installation Methods

    The solid state relay units support both DIN rail mount and panel mount methods providing more installation flexibility

    closed-loop

    Applications

    Single-phase integrated solid state relays are used to control the temperature of heating device in reflow machines.
