Slim Detachable Heatsink SSRs
SRC1 Series
Brand:
The single phase solid state relays SRC1 series feature slim and compact design (22.5 mm width) for flexible installation and detachable heatsinks for easier maintenance or replacement. The high dielectric strength of 4000 VAC provides durable and reliable performance in various applications, including heater loads, semiconductor equipment, and motor control.

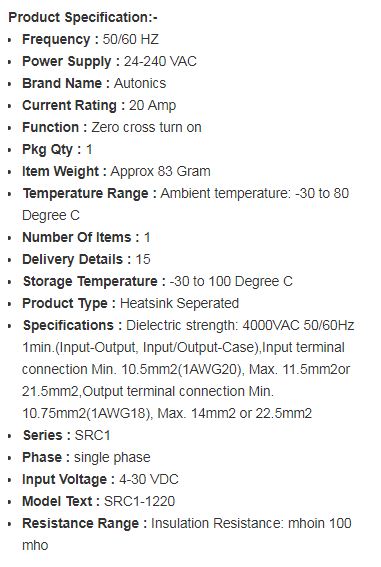

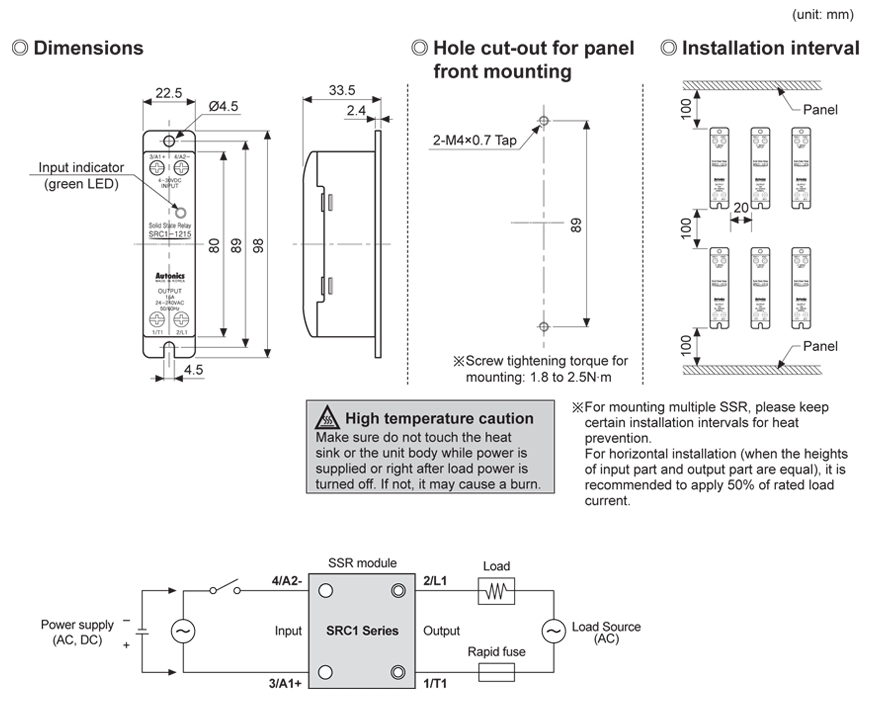

• Slim, compact size (22.5 mm width)
• Rated input voltage: 4-30 VDC, 90-240 VAC
• Rated load voltage: 24-240 VAC, 48-480 VAC
• Rated load current (resistive load): 15 A, 25 A, 30 A
• Dielectric strength: 4000 VAC
• High heat dissipation efficiency with ceramic PCB
• Zero cross turn-on, random turn-on models available
• Input Indicator (green LED)

TITLE DOCUMENT TYPE SIZE
SRC1 Series Catalog 493 KB
SSR / Power Controllers (Product Overview) Catalog 537 KB
SRC1 Series Manual 463 KB
