Built-in Common Interface Terminal Blocks
ACS Series
Brand:
Common terminal block ACS Series is a compact product of which terminal pitch is 7mm. The series provides convenience for wiring works without jumper bar due to built-in PCB common. Also, this model is widely used for power supply expansion terminal block and saves space with compact size. It enables to make more wide variety applications with two types of mounting (DIN Rail, bolt fix).

• Compact interface terminal block - 7mm of terminal pitch

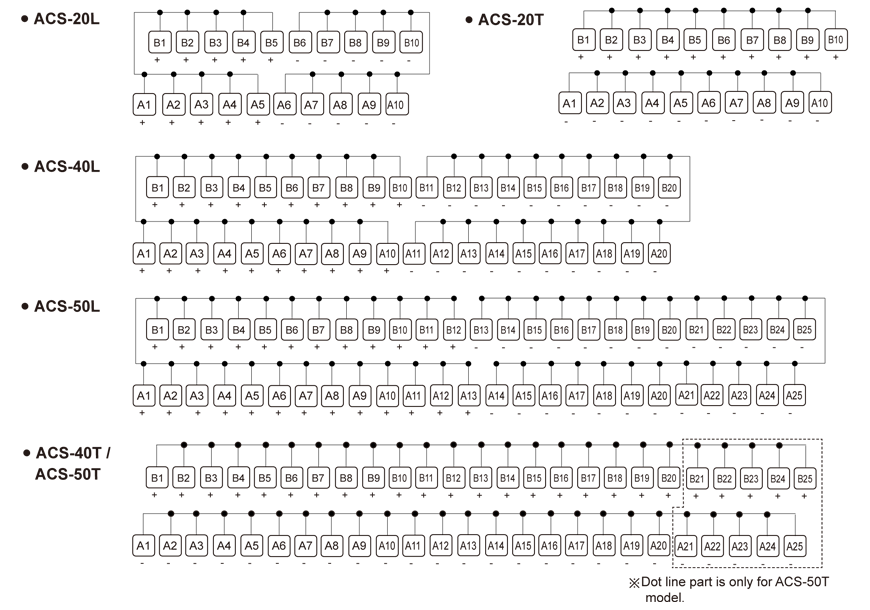

• No Jumper bars required due to built-in PCB Common
• Available for power supply expansion terminal block
• Space saving mounting with compact size
• Excellent environment resistance against dust and debris by hinged cover
• Two ways of mounting(DIN Rail, bolt fix)

TITLE DOCUMENT TYPE SIZE
ACS Series Catalog 594 KB
ACS Series Manual 690 KB
