3 Tier I/O Block with Common Connector Terminal Block Conversion Units

XW2E Series

Brand:

A common terminal is provided for device power supply and the three-tiered structure means easier wiring.

• For 16 inputs only.

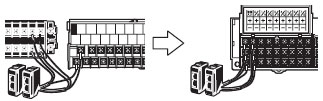

• The three-tiered terminal block simplifies wiring because the power supply terminal block is wired with just one crimp terminal.

Rated current	1 A
Rated voltage	12 to 24 VDC
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	500 VAC for 1 min (leakage current: 1 mA max.)
Ambient operating temperature	0 to 55 ° C

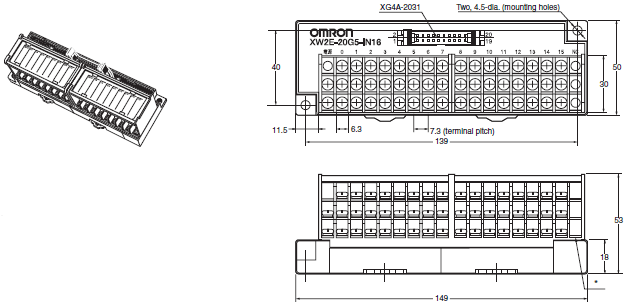

XW2E-20G5-IN16

* This is not a row of terminals.

TITLE	DOCUMENT TYPE	SIZE
XW2E	Catalog	344 KB
