Omron, XW2F Series

Home > Product > Switching & Accessories > Relay/SSR & I/O Boards > XW2F Series

Push in Connector Terminal Block Conversion Units

XW2F Series

Brand:

Accelerate Reductions in Factory Wiring and Labor with Screwless Terminals.

• Clamp terminals eliminate the need to tighten screws.

• Just insert the ferrule to complete one-touch wiring.

Rated current		1 A/point, 4 A/common
Rated voltage		24 VDC
Insulation resistance		100 MΩ min. (at 500 VDC)
Dielectric strength		500 VAC for 1 min
Ambient operating temperature		-10 to 55°C
Applicable wires	Applicable wire sizes	AWG24 to AWG14 (core cross-sectional area: 0.21 to 2.08 mm²) Outer diameter of insulation must be 3.6 mm max.
Applicable wires	Stripped length	AWG24 to 16: 9 to 11 mm, AWG14: 10.5 to 11.5 mm

XW2F-20G7-IN16, XW2F-20G7-OUT16

* XW2F-20G7-OUT16 is printed on the output side.

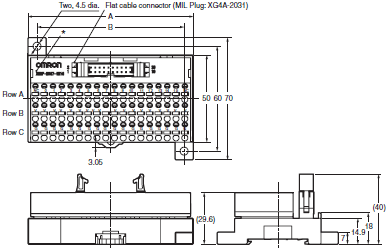

Dimensions

Input Terminal Block XW2F-20G7-IN16 (Orange)

Output Terminal Block XW2F-20G7-OUT16 (Yellow)

TITLE	DOCUMENT TYPE	SIZE
XW2F	Catalog	404 KB
