Compact Industrial SCARA
Compact Industrial Robot with light weight space saving arm. Its high speed operation is best suited for pick and place, labelling, tracking

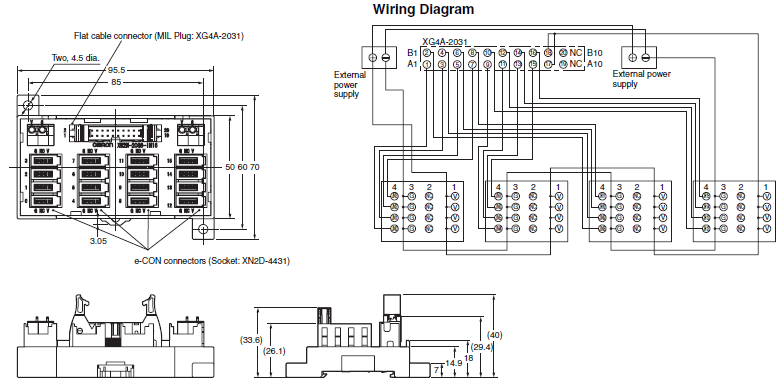

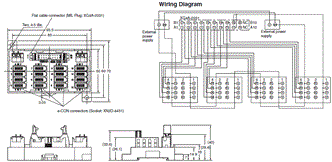

• I/O connectors for easier wiring.
• Easy connections via connectors (no special tools required).
• Compatible with e-CON connectors from other companies.
Rated current | 0.5 A/input, 4 A/common | |
---|---|---|
Rated voltage | 24 VDC | |
Insulation resistance | 100 MΩ min. (at 500 VDC) | |
Dielectric strength | 500 VAC for 1 min | |
Ambient operating temperature | -10 to 55°C | |
Applicable wires (power supply terminals) |
Applicable wire sizes * | AWG24 to AWG16 (core cross-sectional area: 0.2 to 1.5 mm2); |
Stripped length | 9.5 to 10.5 mm |
*These are the applicable sizes for the terminal block. Refer to information on the applicable connector for input connector wire sizes.
TITLE | DOCUMENT TYPE | SIZE |
XW2N | Catalog | 610 KB |
---|
